A complete roof rack and lighting solution featuring ASK Design's own developed and manufactured LED bar mounts.
Upgrade your Volvo with a complete roof-mounted lighting solution combining Turtle AIR roof bars, the powerful Ledson EPIX31 Slim 162W Powerboost LED light bar, custom-designed ASK Design mounts, wiring and XBB wireless high beam control.
Carefully selected components provide a clean, integrated installation without the need to source each part separately.
Simply choose your Volvo model and your preferred roof bar colour – black or silver.

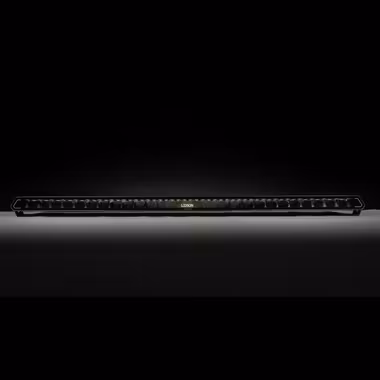

The Ledson EPIX31 Slim is a high-performance 31” LED light bar combining impressive illumination with an exceptionally slim profile of just 33 mm.

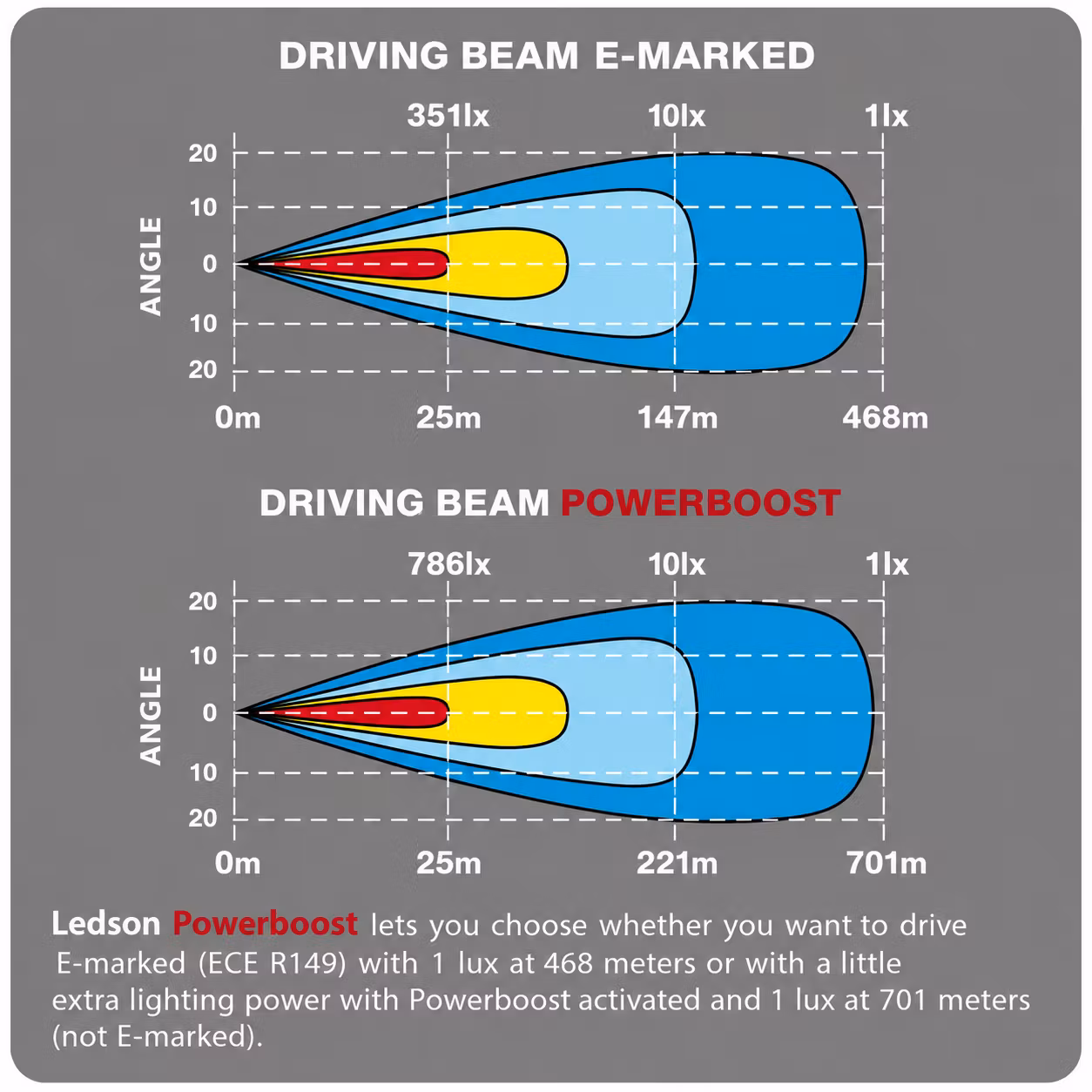

With Powerboost activated, the light bar delivers 11,000 measured lumens and a range of 701 metres at 1 lux, providing excellent long-distance visibility on dark roads.
In E-approved mode, it delivers 3,930 measured lumens and a range of 468 metres at 1 lux.
The 5000K colour temperature produces a natural white light, while the slim black housing creates a discreet and modern appearance.
Ledson EPIX31 Slim features pulse-controlled Powerboost, allowing you to switch between E-approved mode and maximum performance using the vehicle's high beam stalk, where the installation supports this function.
Powerboost provides additional light output for situations where maximum visibility is required.
Powerboost mode is intended for off-road use and must not be used on public roads where it does not comply with applicable regulations.

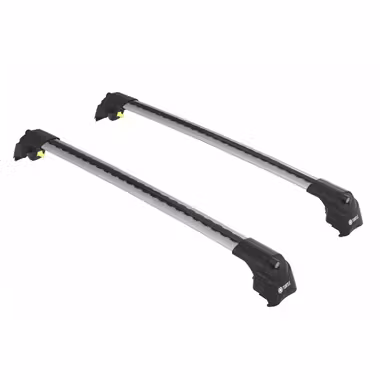

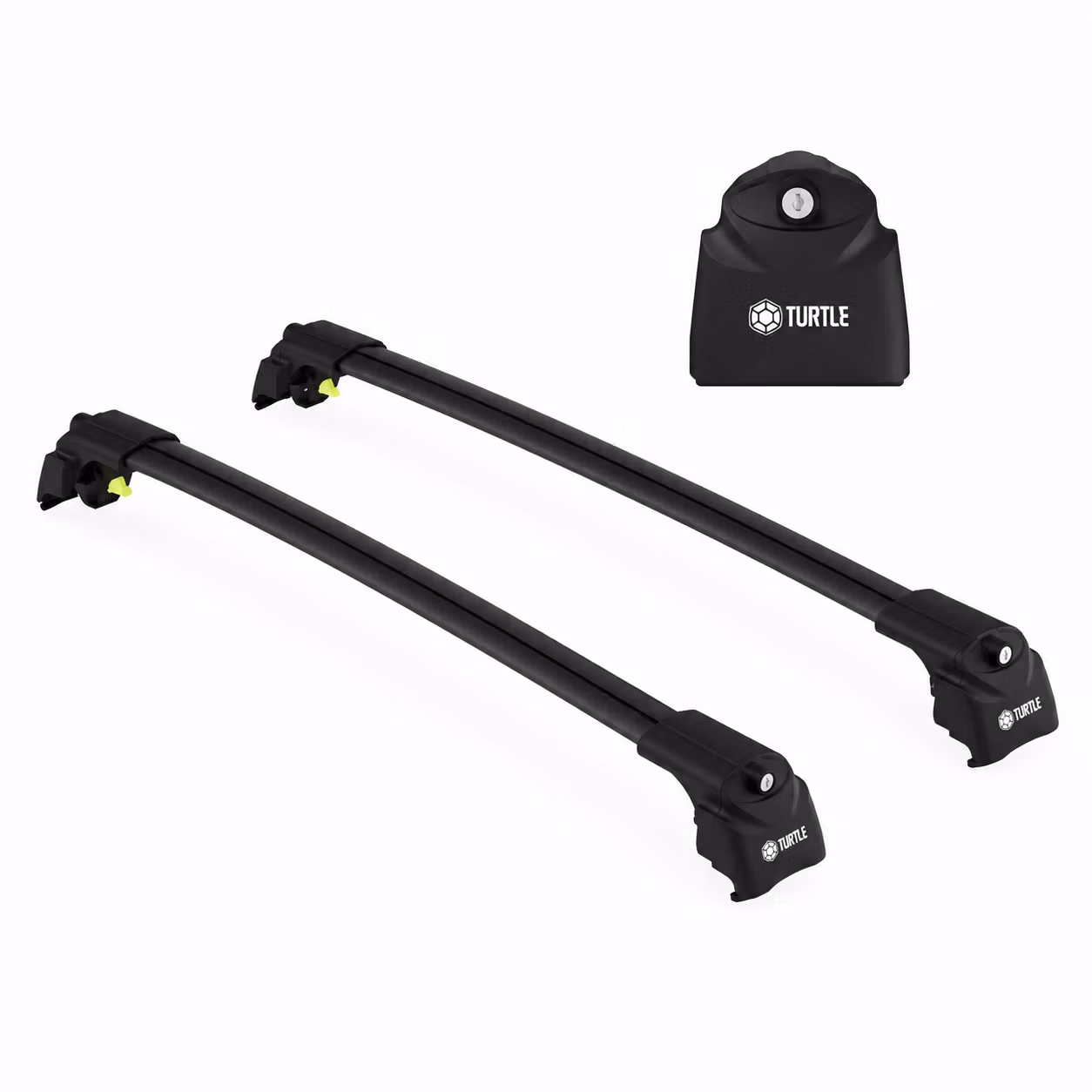

Turtle AIR roof bars combine practical functionality with a streamlined, vehicle-specific design.
Their aerodynamic wing-shaped profile helps reduce wind noise and air resistance, making them suitable for everyday driving and longer journeys.
Manufactured from anodised aluminium and weather-resistant ABS plastic, the roof bars are designed for durability in demanding weather conditions.
Features include:
The roof bars have a stated maximum load capacity of 75 kg, subject to the vehicle's permitted roof load and applicable mounting limitations.

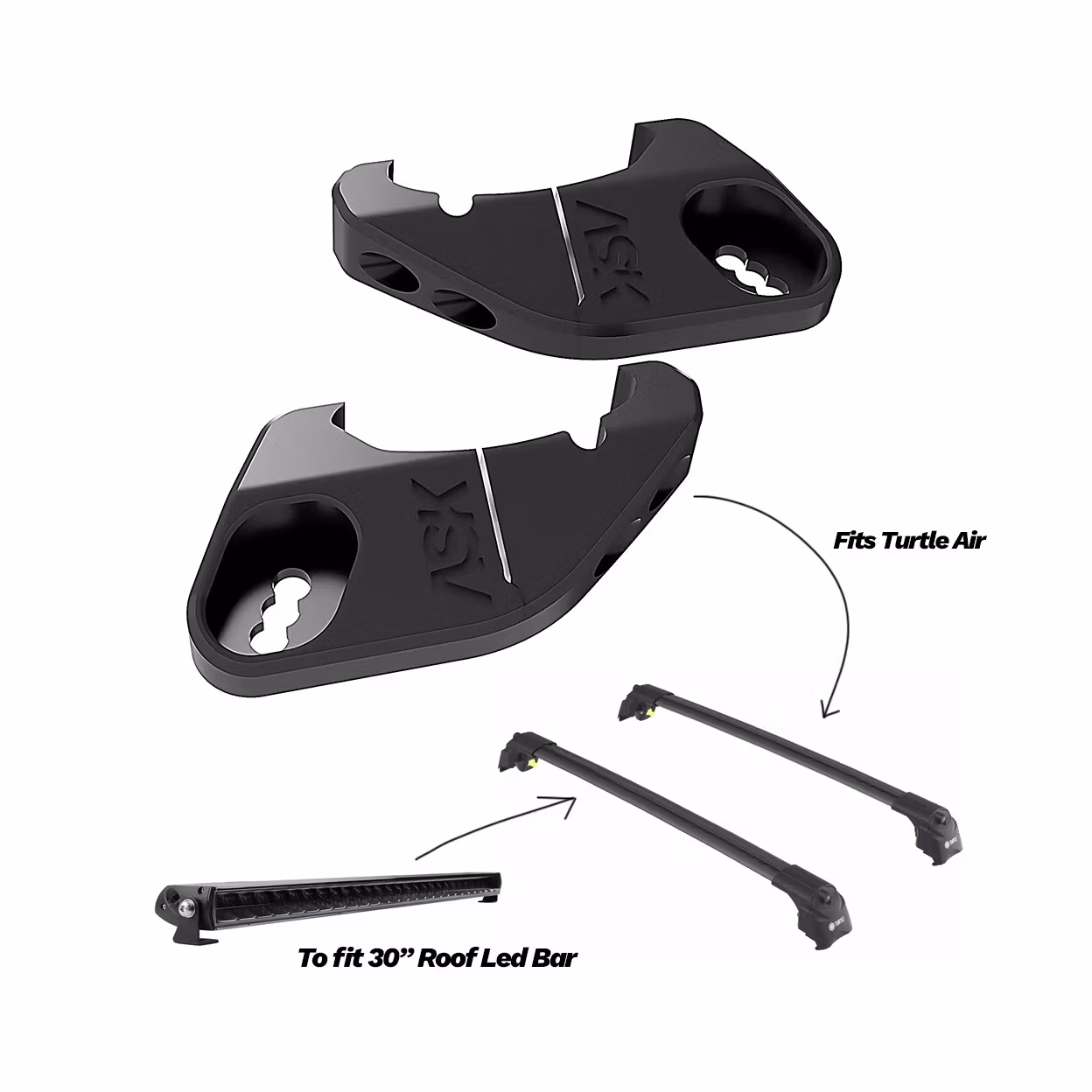

The package includes ASK Design's own developed and manufactured LED bar mounts, specifically designed for Turtle AIR roof bars.
The mounts provide a secure and discreet installation, positioning the LED light bar neatly along the roof bar for an integrated appearance.
An integrated cable channel allows the wiring to be routed discreetly for a cleaner installation.
Mounting screws and washers are included.

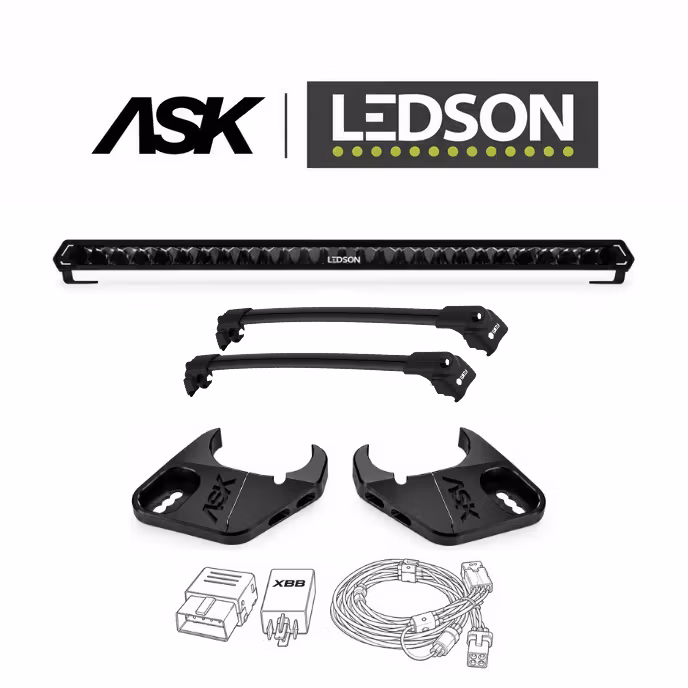

The package includes a Ledson Connect wiring harness together with an XBB Dongle & PowerUnit system and a dedicated XBB control cable.
The wiring harness supplies power to the LED light bar, while the XBB system provides high beam signal control on compatible vehicles.
This setup can simplify installation by reducing the need to connect directly to the vehicle's original high beam wiring.
Vehicle compatibility with XBB should be verified before installation.
| Specification | Details |
|---|---|
| Length | 782 mm |
| Height | 33 mm |
| Depth | 59 mm |
| Power | 162W |
| Measured light output – Powerboost | 11,000 lumens |
| Measured light output – E-approved | 3,930 lumens |
| Range – Powerboost | 701 m at 1 lux |
| Range – E-approved | 468 m at 1 lux |
| Colour temperature | 5000K |
| Voltage | 9–36V |
| Protection rating | IP69K |
| Connection | 2-pin DTP |
| Warranty | 36 months |
With Turtle AIR roof bars, custom-developed ASK Design mounts, powerful Ledson lighting and XBB integration, this kit brings together everything included in the package for a streamlined roof-mounted auxiliary lighting installation.
Choose your vehicle model and roof bar colour to configure your package.
Volvo and related model names are trademarks of Volvo Cars. ASK Design is an independent manufacturer and is not affiliated with Volvo Cars. These trademarks are used solely to indicate vehicle compatibility.
