Complete ditch light kit with two powerful 80W LED lights, advanced Non-Glare optics, integrated warning strobes, universal hood mounts and matching wiring harness.
Upgrade your vehicle with the Ledson Epix5 Work Non-Glare Strobe Ditch Light Kit – a complete lighting solution that combines powerful auxiliary illumination with integrated warning lights.

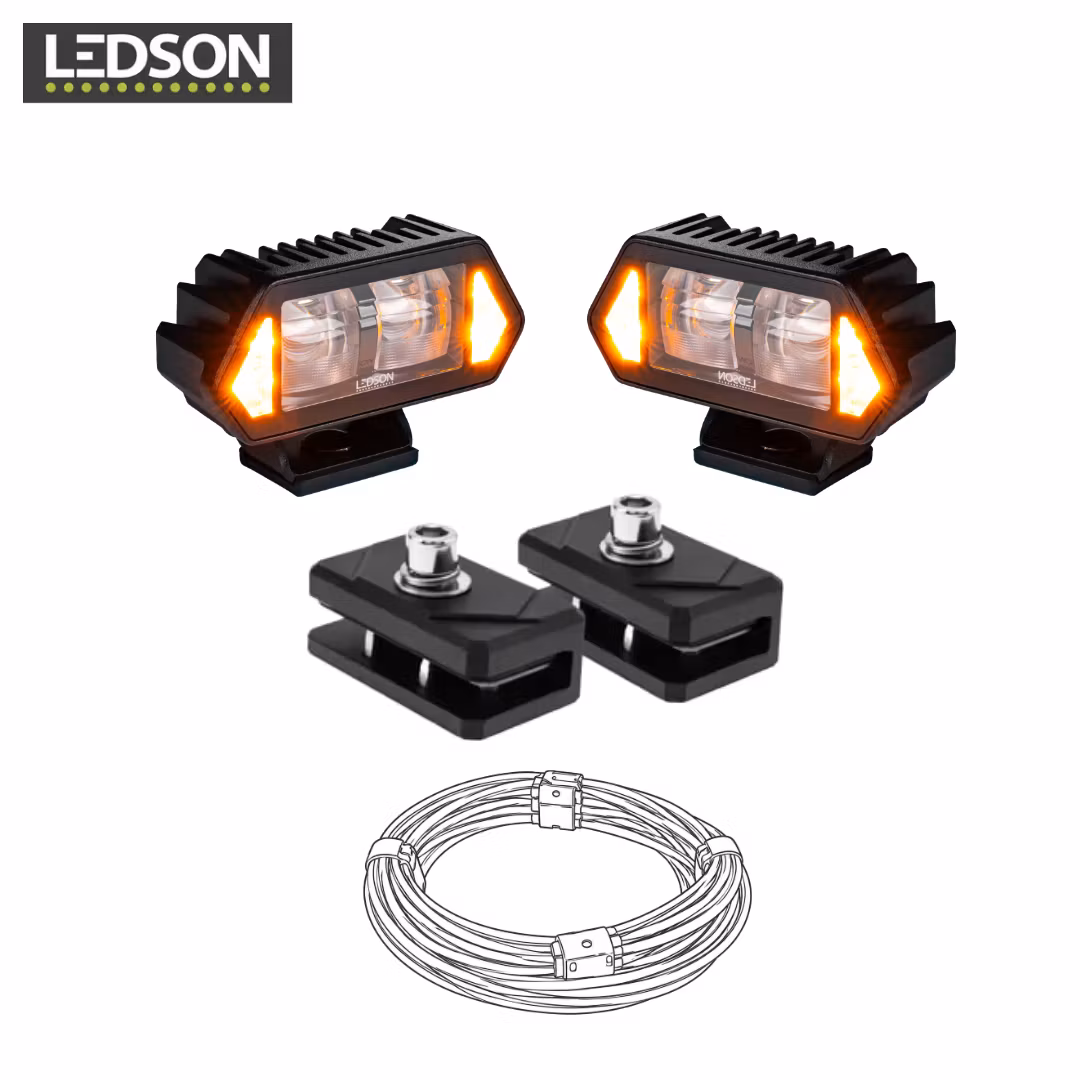

Featuring two Ledson Epix5 Work Non-Glare Strobe LED lights, universal hood mounts and a matching Ledson Connect wiring harness, this kit provides effective illumination of roadsides, ditches and surrounding areas while maintaining a clean, discreet installation.
The advanced Non-Glare optics minimise unwanted glare, while the integrated amber warning strobes offer five selectable flash patterns for increased visibility when needed.

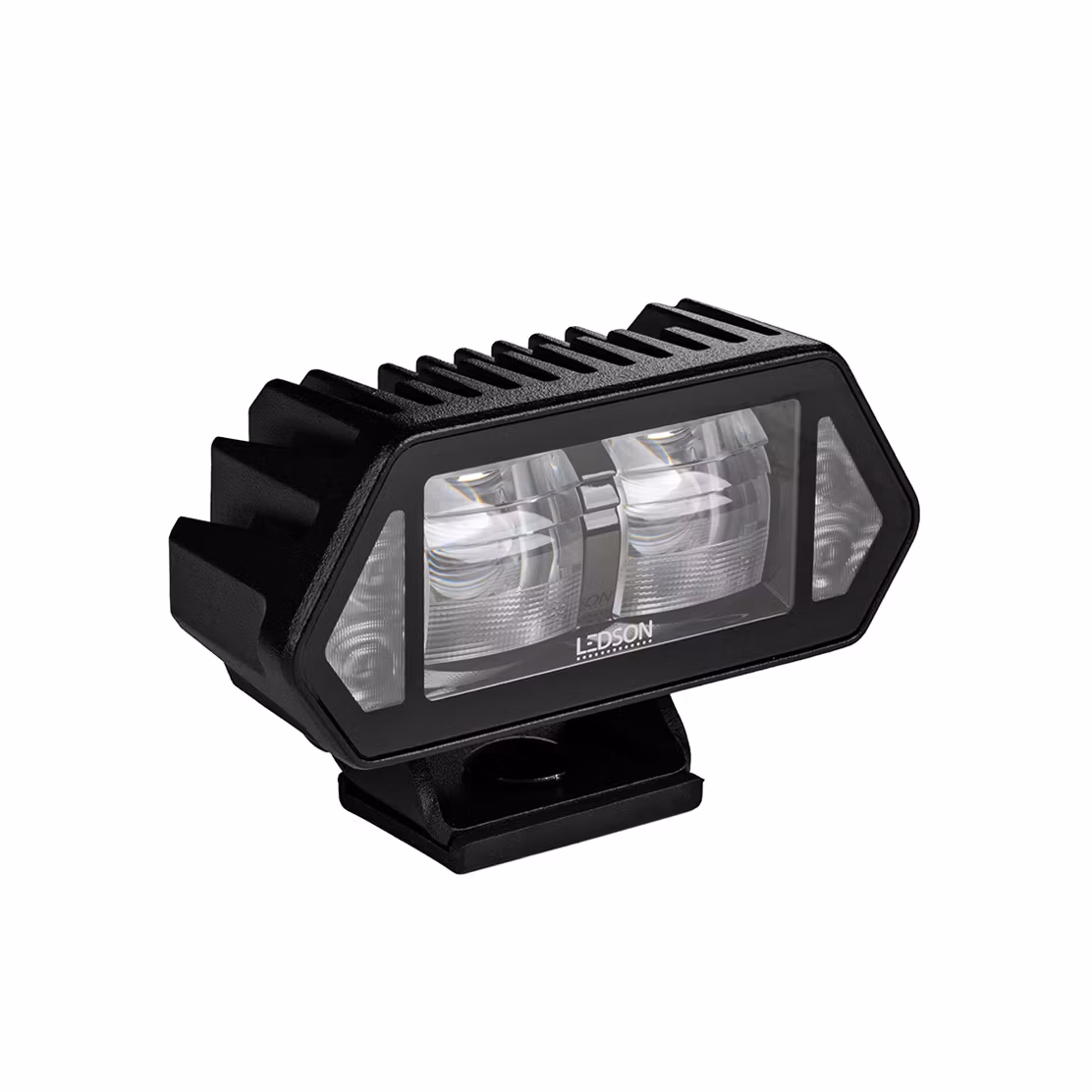

The Epix5 Work Non-Glare Strobe features specially developed optics designed to direct light precisely where it is needed while minimising unnecessary glare.
With a controlled Flood beam pattern of 70° × 40°, the lights provide wide and effective illumination without producing excessive dazzling light.
This makes the kit particularly suitable for illuminating areas alongside the vehicle, improving visibility and reducing eye fatigue during demanding work in dark environments.
Each Ledson Epix5 Work Non-Glare Strobe delivers 3,800 actual lumens, providing a combined light output of 7,600 actual lumens.
With a range of 88 metres at 1 lux, the lights offer effective illumination of nearby areas and surroundings.
The 5000K colour temperature produces a clear, neutral white light for excellent visibility and visual comfort.

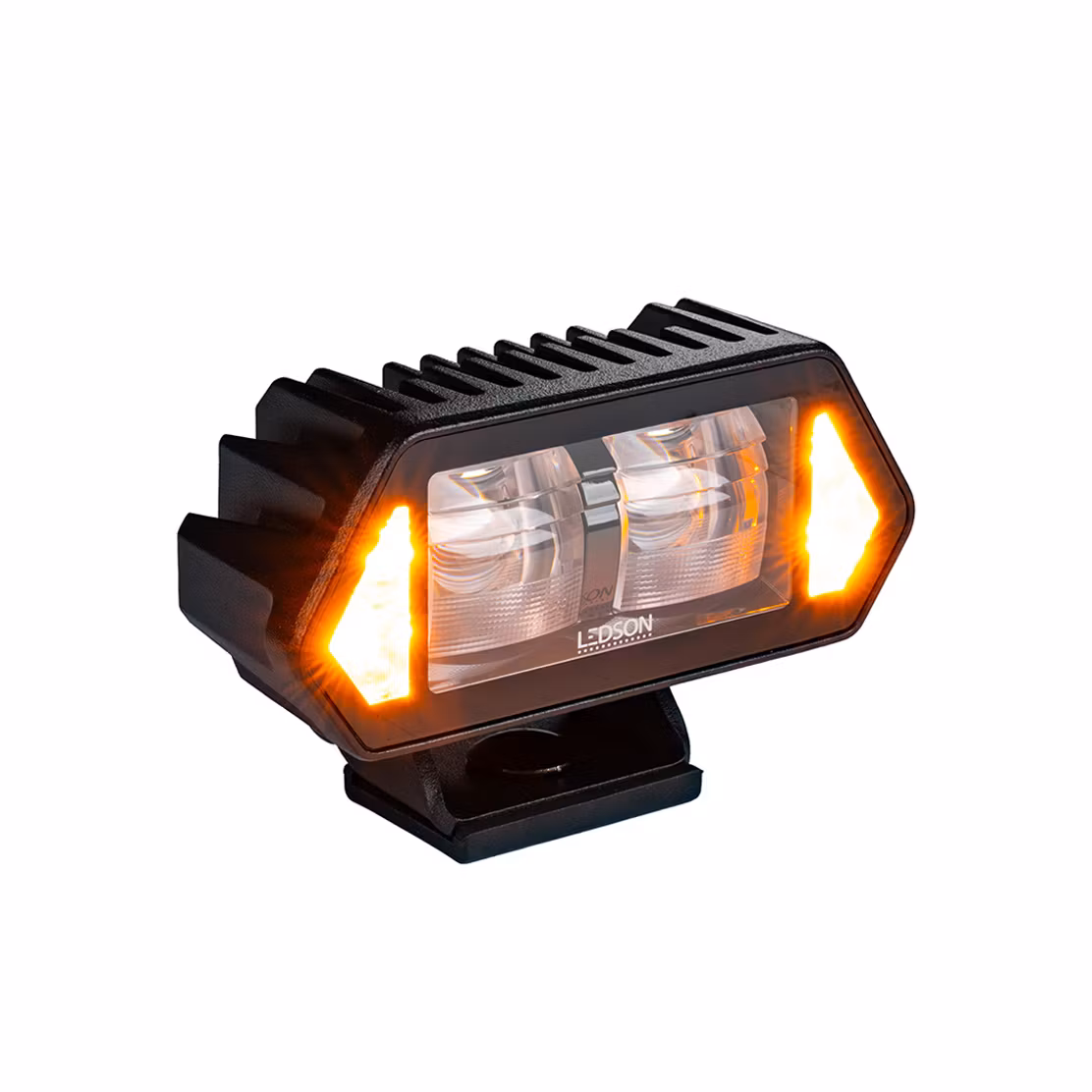

In addition to powerful work lighting, each Epix5 Work Non-Glare Strobe features an integrated amber warning light.
With five selectable flash patterns, the warning lights increase vehicle visibility in demanding working environments.
The warning light function is ECE R65 approved, making it suitable for applications requiring approved warning lighting, subject to applicable regulations.
By combining work lighting and warning strobes in the same units, the kit reduces the need for separate lighting installations.

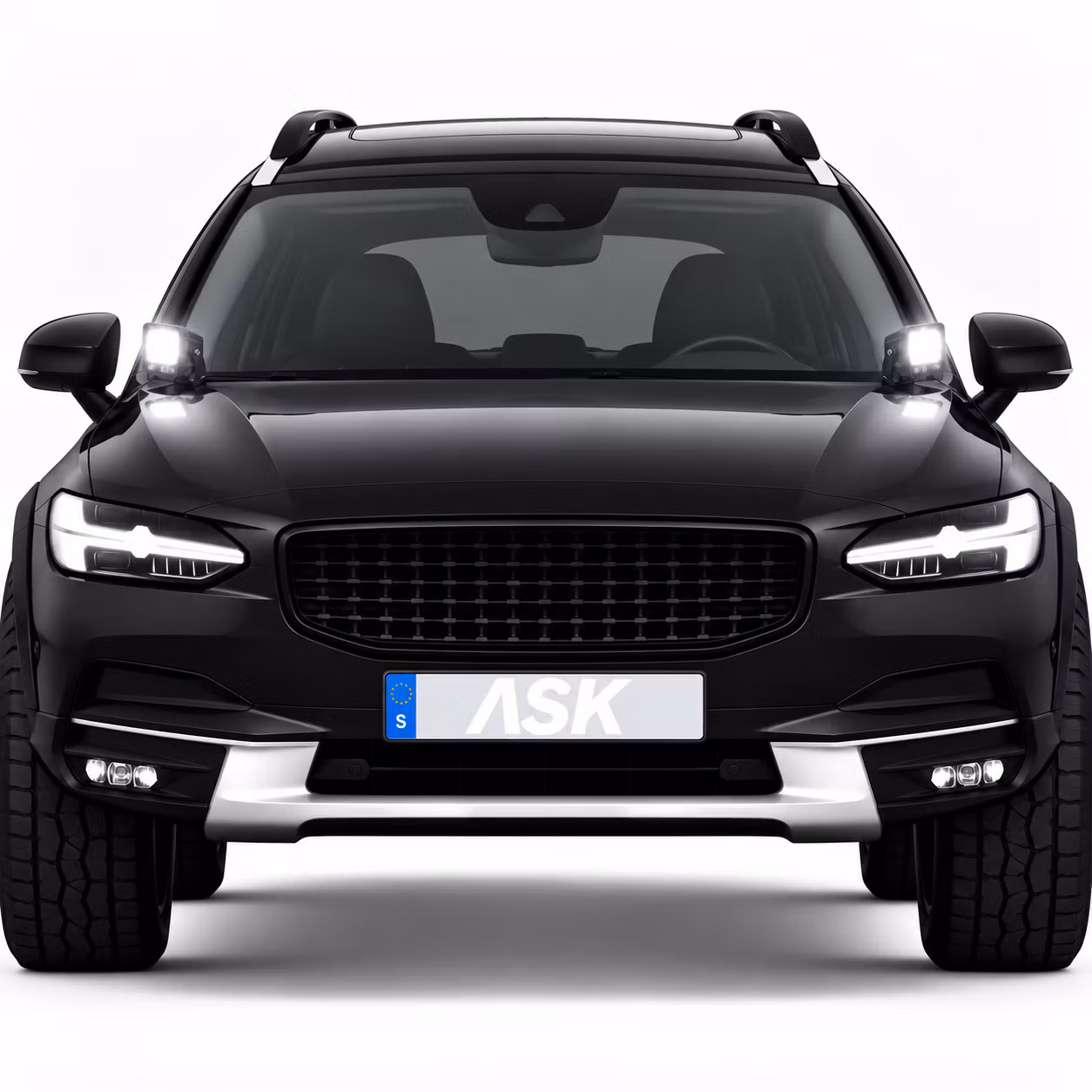

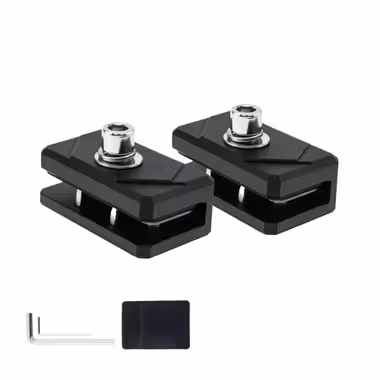

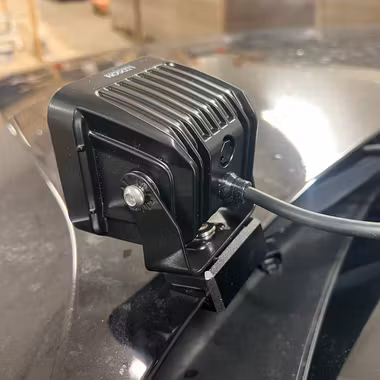

The included universal hood mounts allow the lights to be installed at the rear corners of the vehicle's hood, close to the windshield.
Positioned on either side of the vehicle and angled outwards, the lights can illuminate roadsides, ditches and areas alongside the vehicle.
The brackets are designed for secure installation without drilling into the vehicle's bodywork, providing a discreet and integrated appearance.
The Epix5 Work Non-Glare Strobe features a robust, one-piece aluminium housing designed to withstand demanding environments.
With an IP69K rating, the lights offer excellent protection against dust, water and high-pressure cleaning.
The compact design combines durability with a modern appearance that complements a wide range of vehicles.
The kit includes a Ledson Connect 12V relay wiring harness with two 4-pin DT connectors, providing a matching connection solution for both LED lights.
The wiring harness supports installations with two lights and has a maximum rated capacity of 320W.
An XBB system can be purchased separately for customers who prefer wireless control.
| Specification | Details |
|---|---|
| LED lights | 2 × Ledson Epix5 Work Non-Glare Strobe |
| Power | 80W per light (160W total) |
| Actual light output | 3,800 lumens per light |
| Combined light output | 7,600 lumens |
| Beam pattern | Flood / Non-Glare |
| Beam angle | 70° × 40° |
| Range | 1 lux at 88 metres |
| Colour temperature | 5000K |
| Warning light | Integrated amber strobe |
| Flash patterns | 5 |
| Operating voltage (lights) | 9–36V |
| Wiring harness voltage | 12V |
| Connection | 4-pin DT |
| Dimensions per light | 127 × 79 × 46 mm |
| IP rating | IP69K |
| E-marking | ECE R10, ECE R65 |
| Warranty | 36 months |
With advanced Non-Glare optics, an impressive combined output of 7,600 actual lumens and integrated warning strobes, the Ledson Epix5 Work Non-Glare Strobe Ditch Light Kit offers a versatile lighting solution for demanding environments.
A complete kit combining powerful illumination, reduced glare, enhanced visibility and discreet hood-mounted installation.
