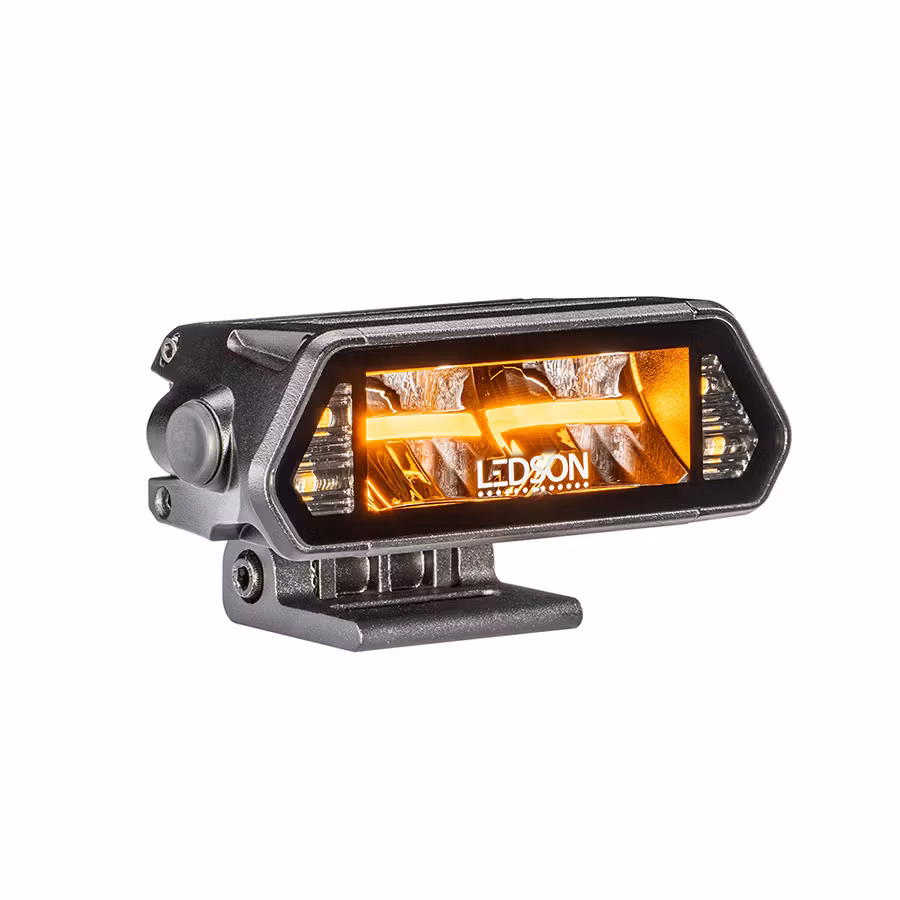

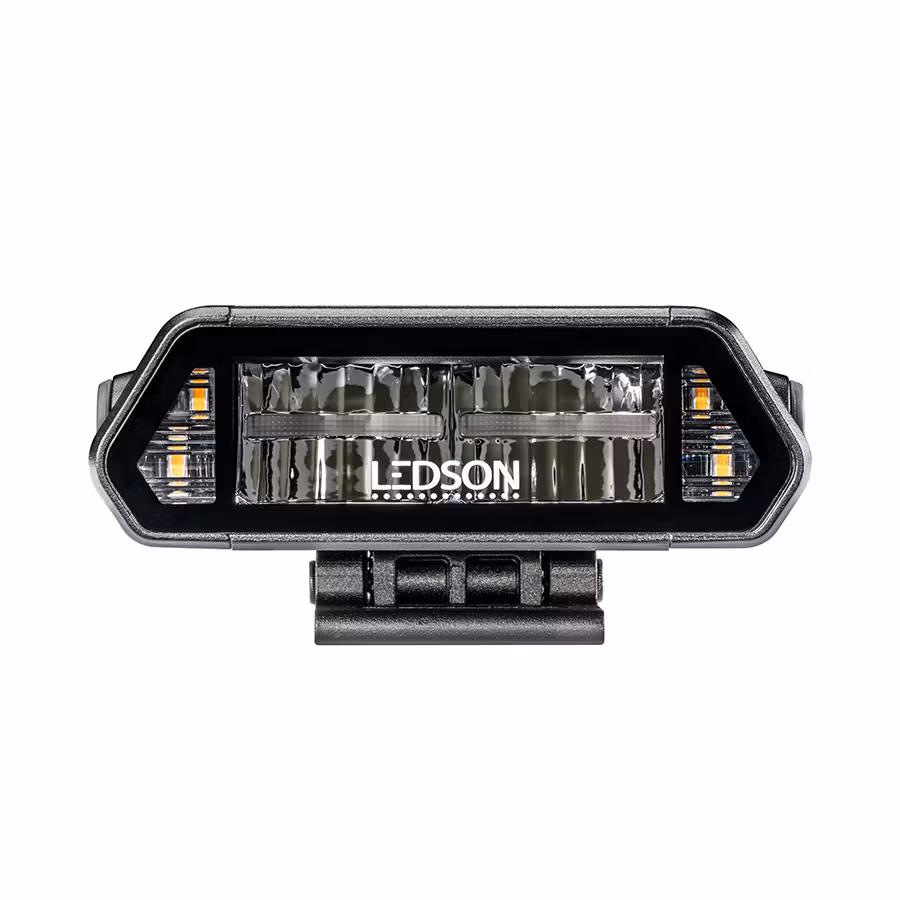

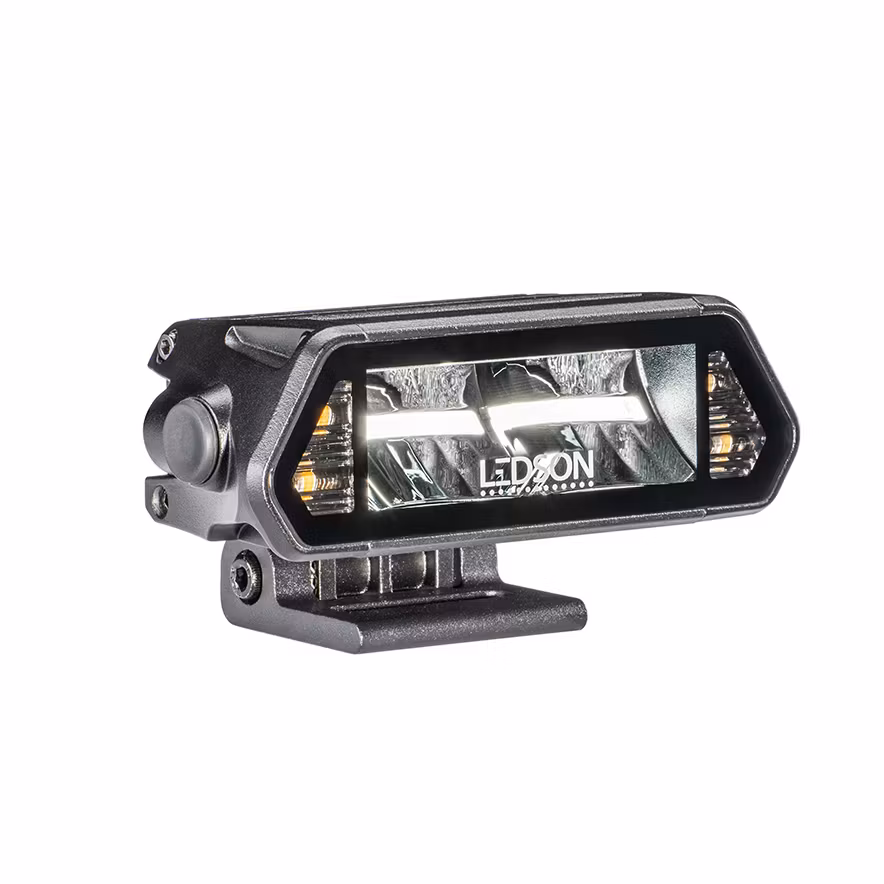

Upgrade your vehicle with the Ledson Epix5+ Prime Strobe Ditch Light Kit – a complete lighting solution that combines powerful LED performance, modern design and multiple lighting functions in one compact package.

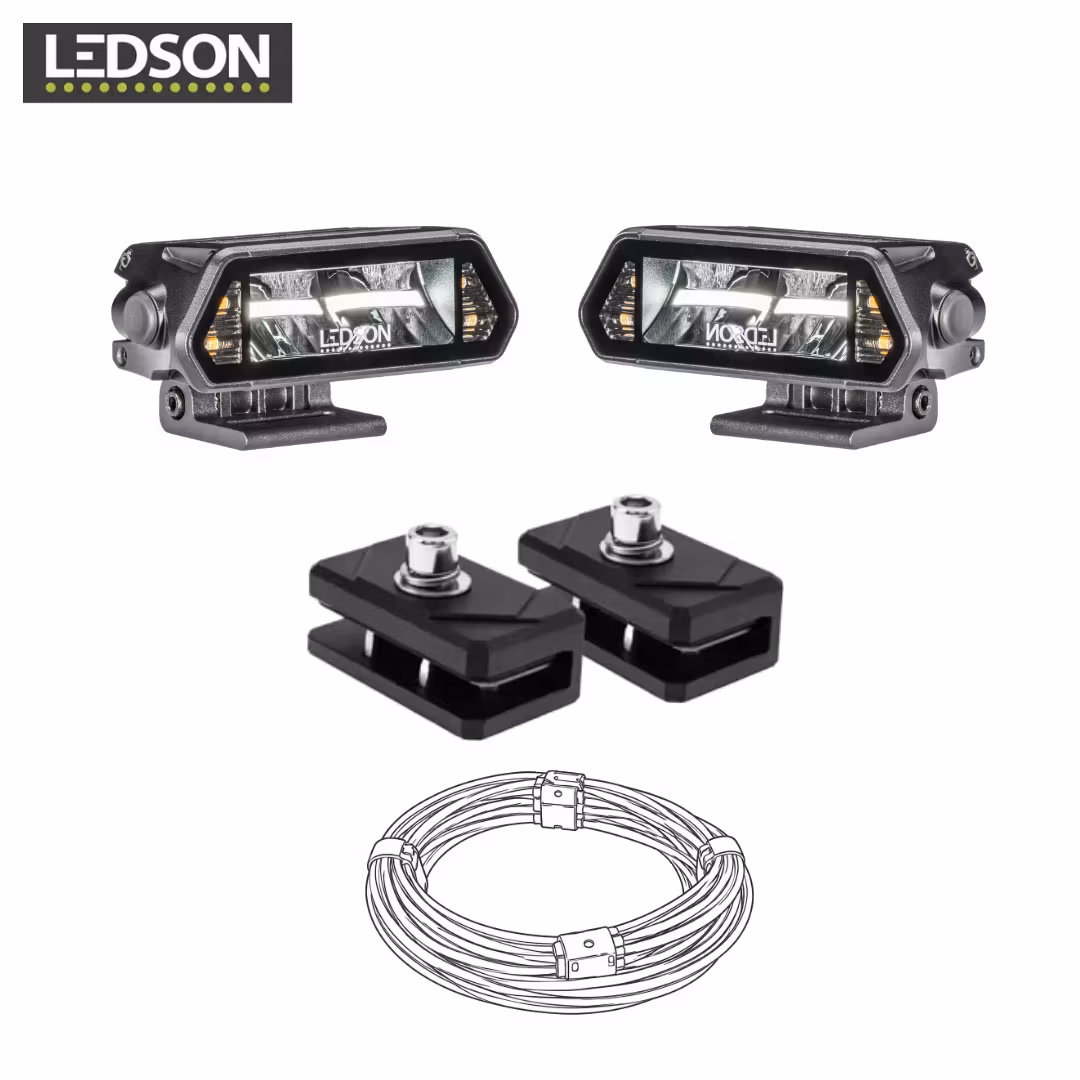

Featuring two Ledson Epix5+ Prime Strobe LED lights, universal hood mounts and a matching Ledson Connect wiring harness, this kit provides a stylish and practical way to enhance your vehicle's lighting.
With an impressive range of 225 metres at 1 lux, selectable white or amber position lights and integrated strobe functionality, the Epix5+ Prime offers exceptional versatility for a wide range of applications.
Each Ledson Epix5+ Prime Strobe delivers 1,700 actual lumens, providing a combined light output of 3,400 actual lumens.
The driving beam combines long-distance illumination with effective light distribution, making it an excellent choice for additional forward-facing lighting.
With a range of 225 metres at 1 lux and a colour temperature of 5000K, the lights provide clear, neutral white illumination for improved visibility in dark conditions.

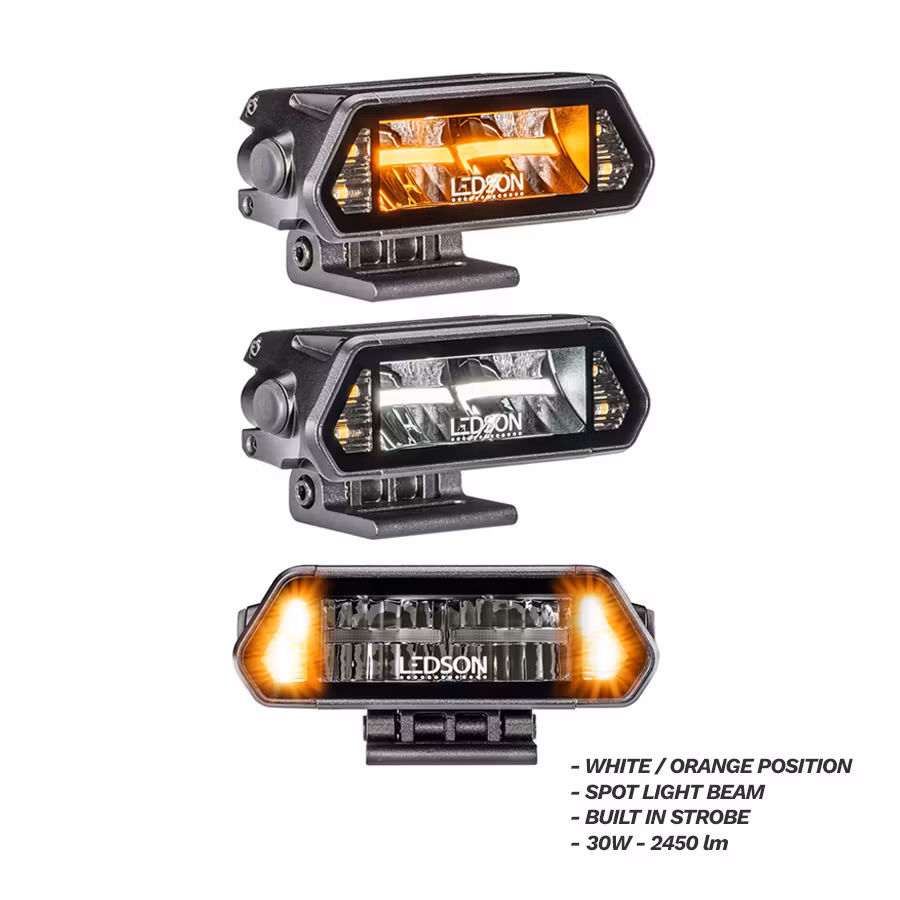

The Epix5+ Prime Strobe combines three lighting functions in one compact unit:
Driving light: Powerful LED illumination with a range of 225 metres.

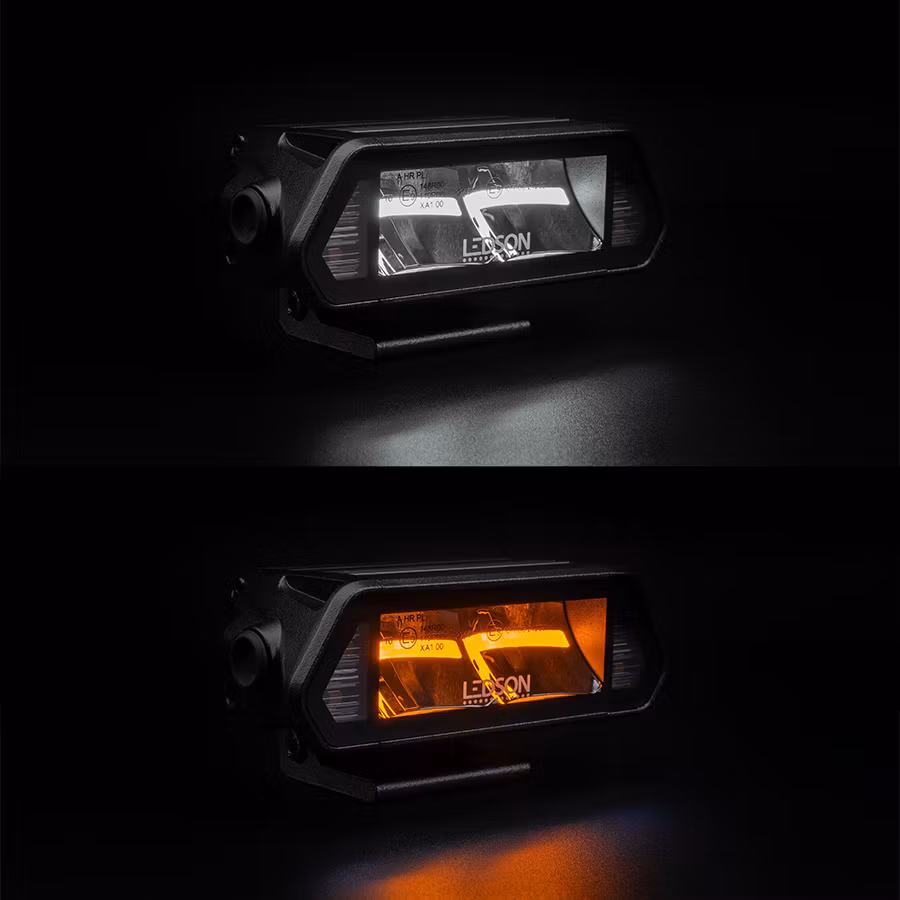

Position light: Selectable white or amber lighting for a distinctive appearance.
Strobe light: Ten selectable flash patterns, including one ECE R65-approved pattern.
The integrated position lights complement the modern design, while the strobe functionality offers additional versatility for applications where warning lighting is permitted.
The included universal hood mounts allow the lights to be installed along the rear edge of the vehicle's hood.
Designed for a secure installation without drilling into the bodywork, the brackets provide a discreet and integrated appearance while preserving the vehicle's original design.
The compact dimensions of the Epix5+ Prime make the lights particularly suitable for hood-mounted installations.
The kit includes a Ledson Connect 12V relay wiring harness with two 6-pin DT connectors, designed for lighting systems with driving lights, position lights and strobe functionality.
The matching connectors provide a practical installation solution for both LED lights.
An XBB system for wireless control can be purchased separately.
| Specification | Details |
|---|---|
| LED lights | 2 × Ledson Epix5+ Prime Strobe |
| Power | 30W per light (60W total) |
| Actual light output | 1,700 lumens per light |
| Combined light output | 3,400 lumens |
| Beam pattern | Driving Beam |

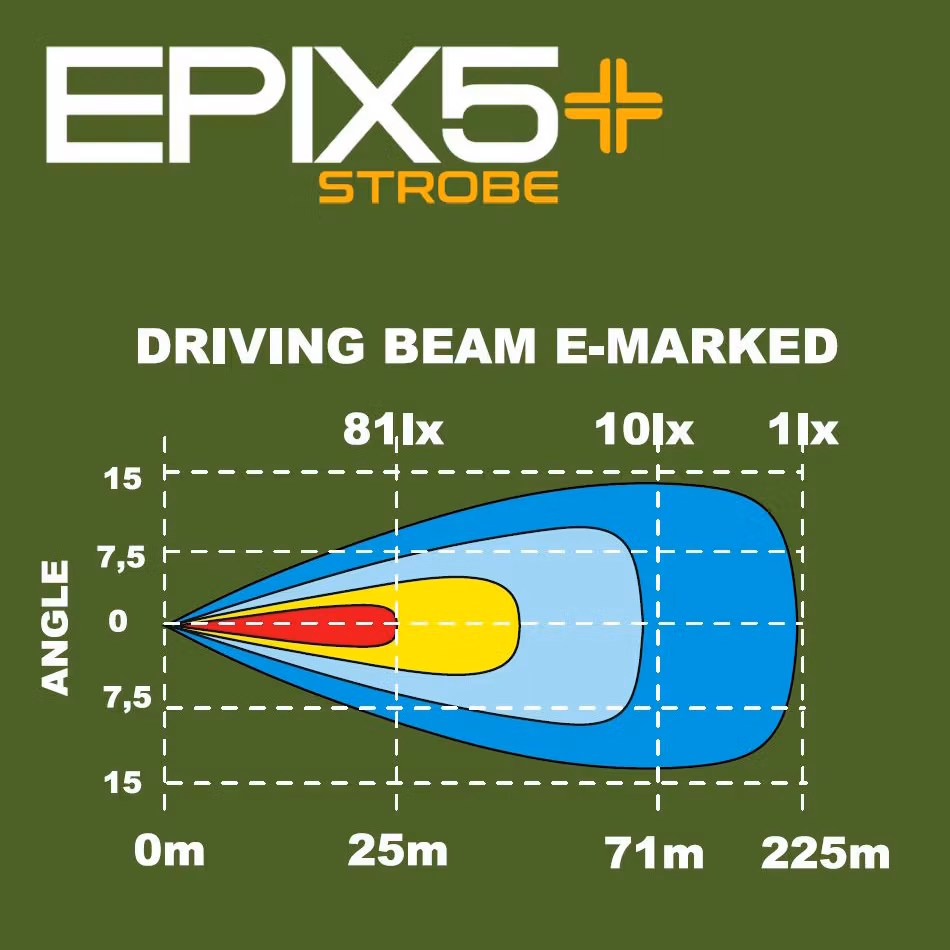

| Range | 1 lux at 225 metres |
| Colour temperature | 5000K |
| Operating voltage (lights) | 9–36V |
| Wiring harness voltage | 12V |
| Connection | 6-pin DT |
| Position light | White or amber |
| Strobe patterns | 10 |
| Dimensions per light | 128 × 43 × 61 mm |
| IP rating | IP69K |
| E-marking | ECE R10, R149, R65 |
| Warranty | 36 months |
Please note: The driving light function is E-approved under ECE R149. The strobe function includes an ECE R65-approved flash pattern. The use of position lights and warning lights is subject to applicable vehicle and traffic regulations.
With powerful driving lights, selectable position lighting, integrated strobe functionality and discreet hood mounts, the Ledson Epix5+ Prime Strobe Ditch Light Kit combines performance, versatility and modern design.
Everything conveniently gathered in one package for a coordinated installation.
