Driving Light Kit - 2x/3x/4x Ledson Epix9+



Ledson Epix9+ Driving Light Kit โ€“ Powerful LED Lighting for Volvo, Tesla, Pickups, Work Vehicles, SUVs, and Light Trucks

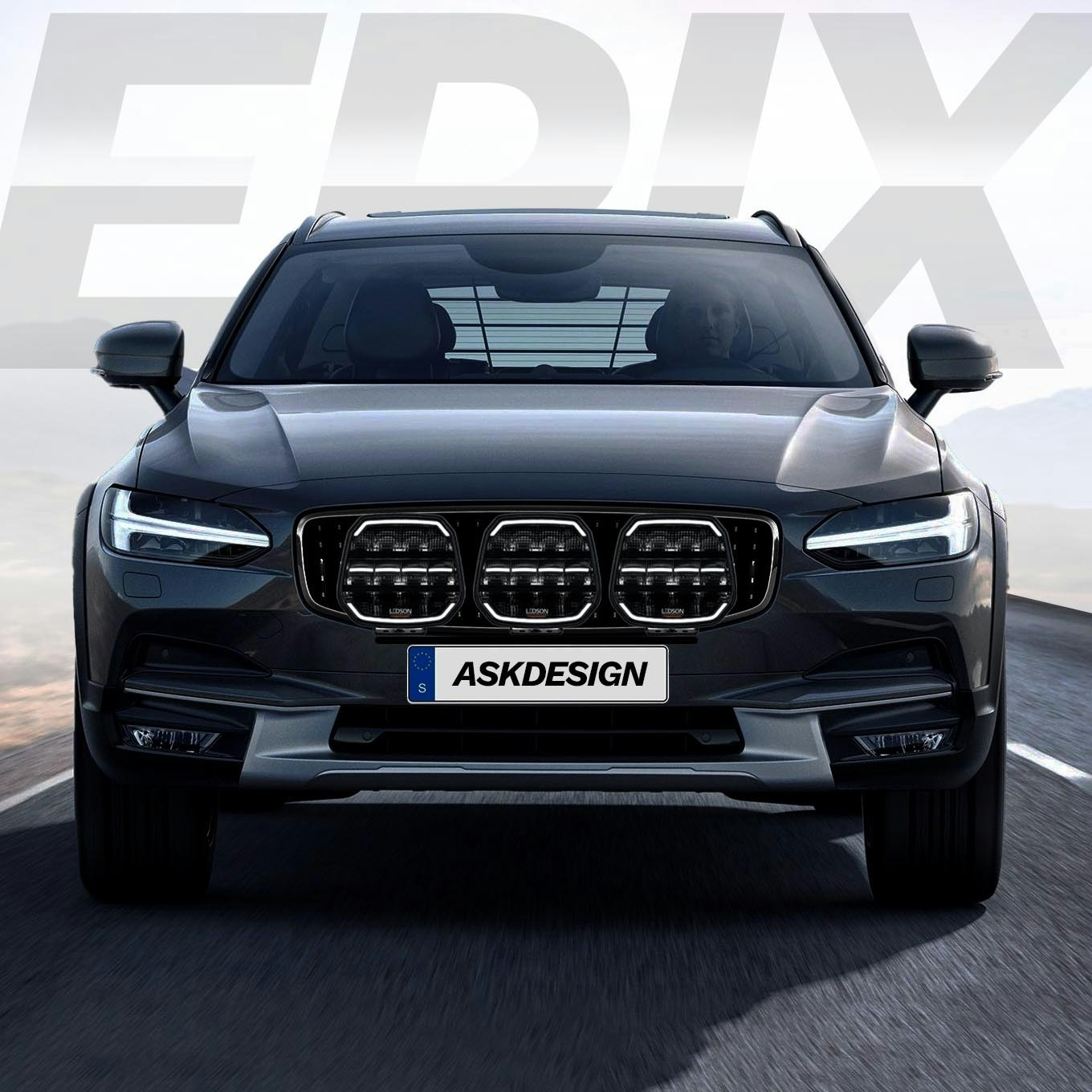

Upgrade your vehicle with the Ledson Epix9+ Driving Light Kit โ€“ a complete package that delivers maximum lighting performance and a sleek design. Perfectly suited for Volvo, Tesla, Volkswagen, Ford, pickups, SUVs, work vehicles, and light trucks, whether you're driving on highways or off-road terrain.

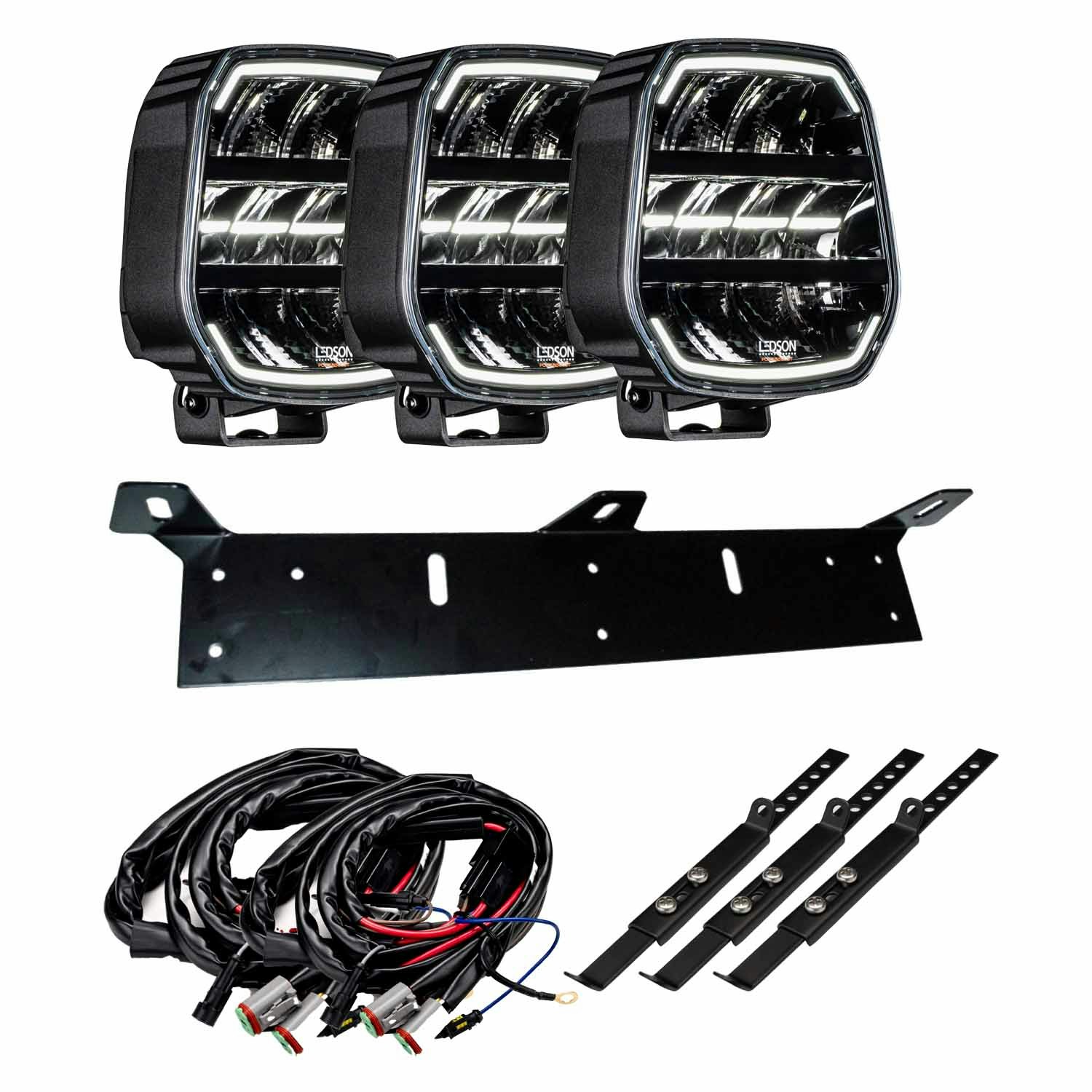

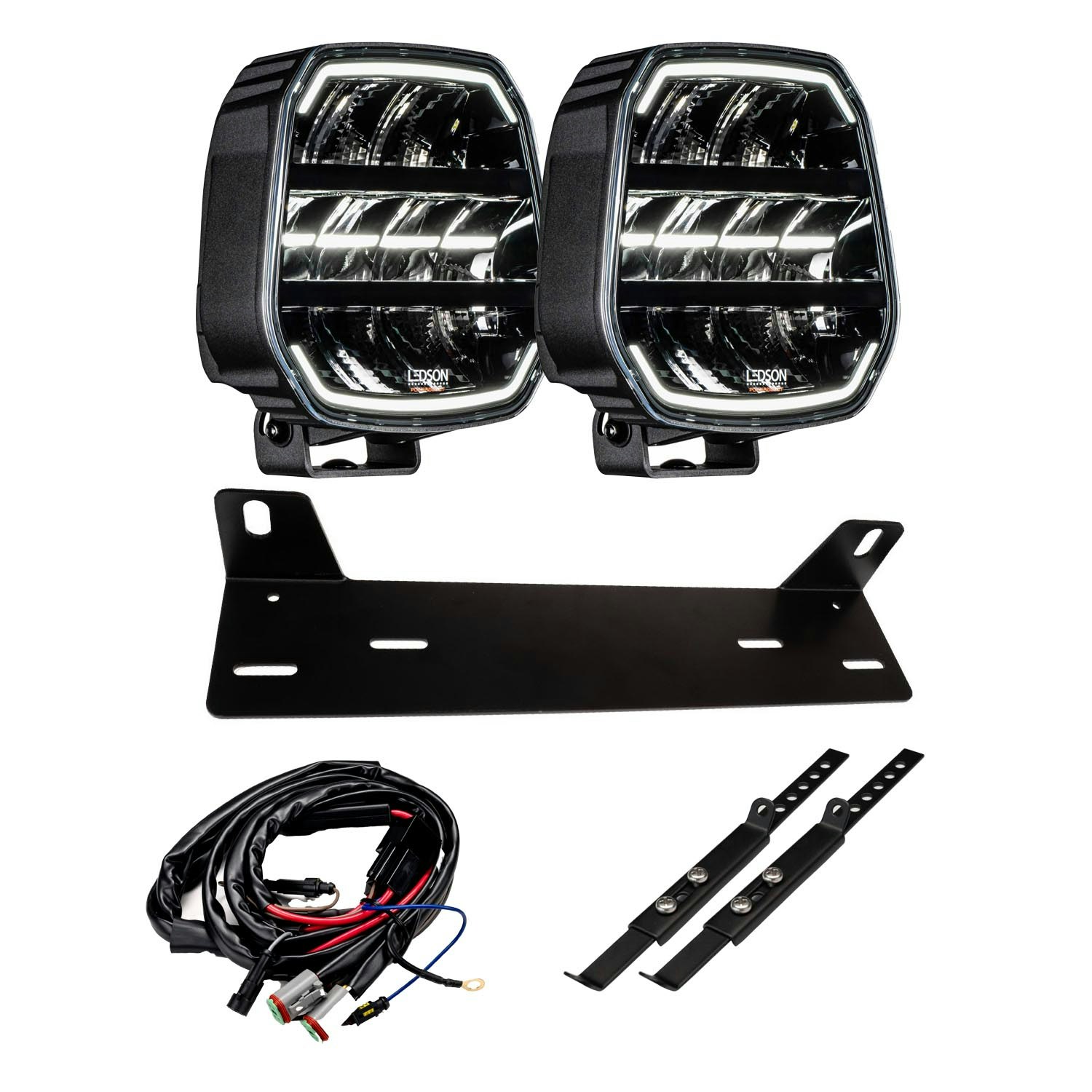

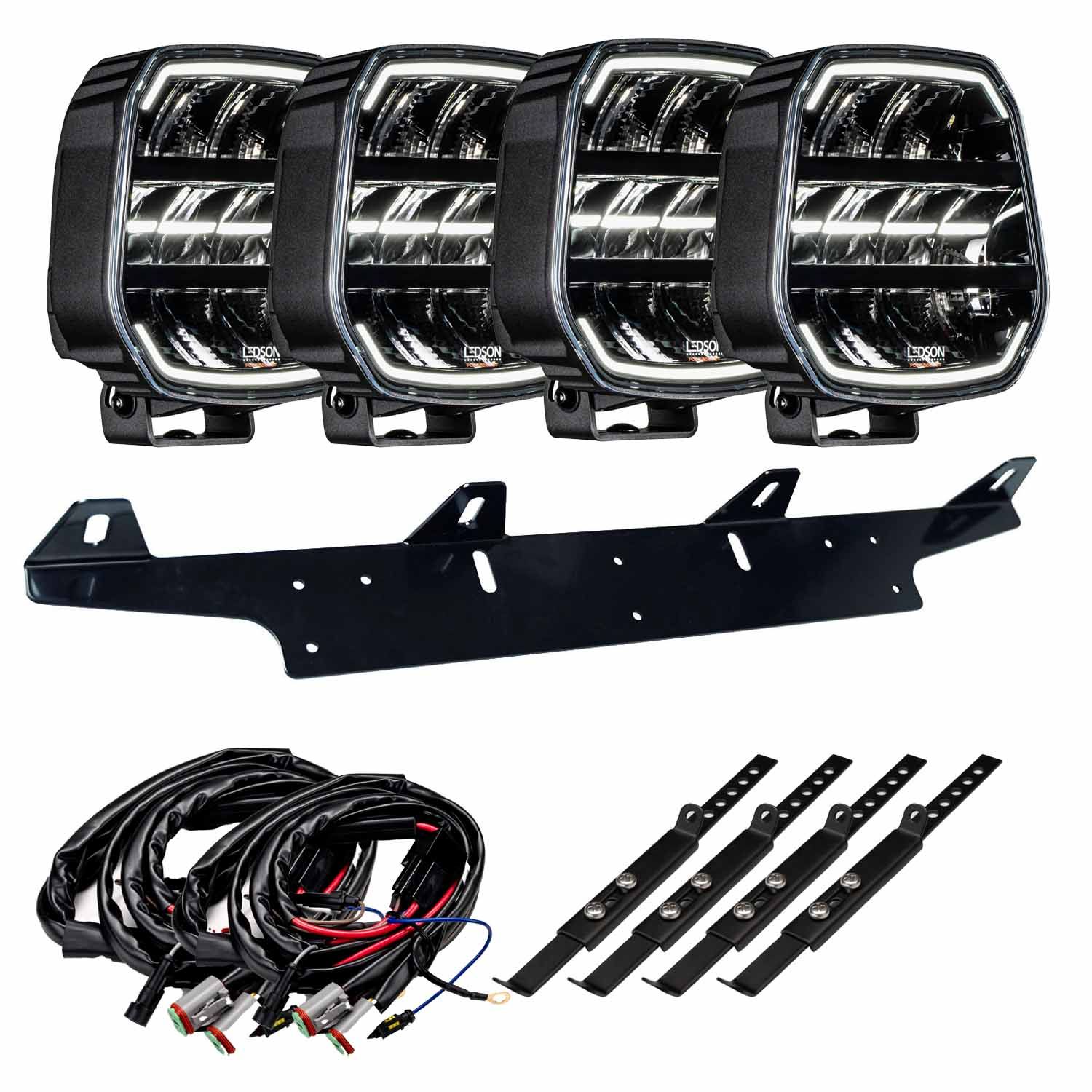

The kit includes Ledson Epix9+ LED driving lights, a heavy-duty relay wiring harness with DT connectors, mounting brackets, and stabilizing rods โ€“ everything you need for a clean, professional installation.

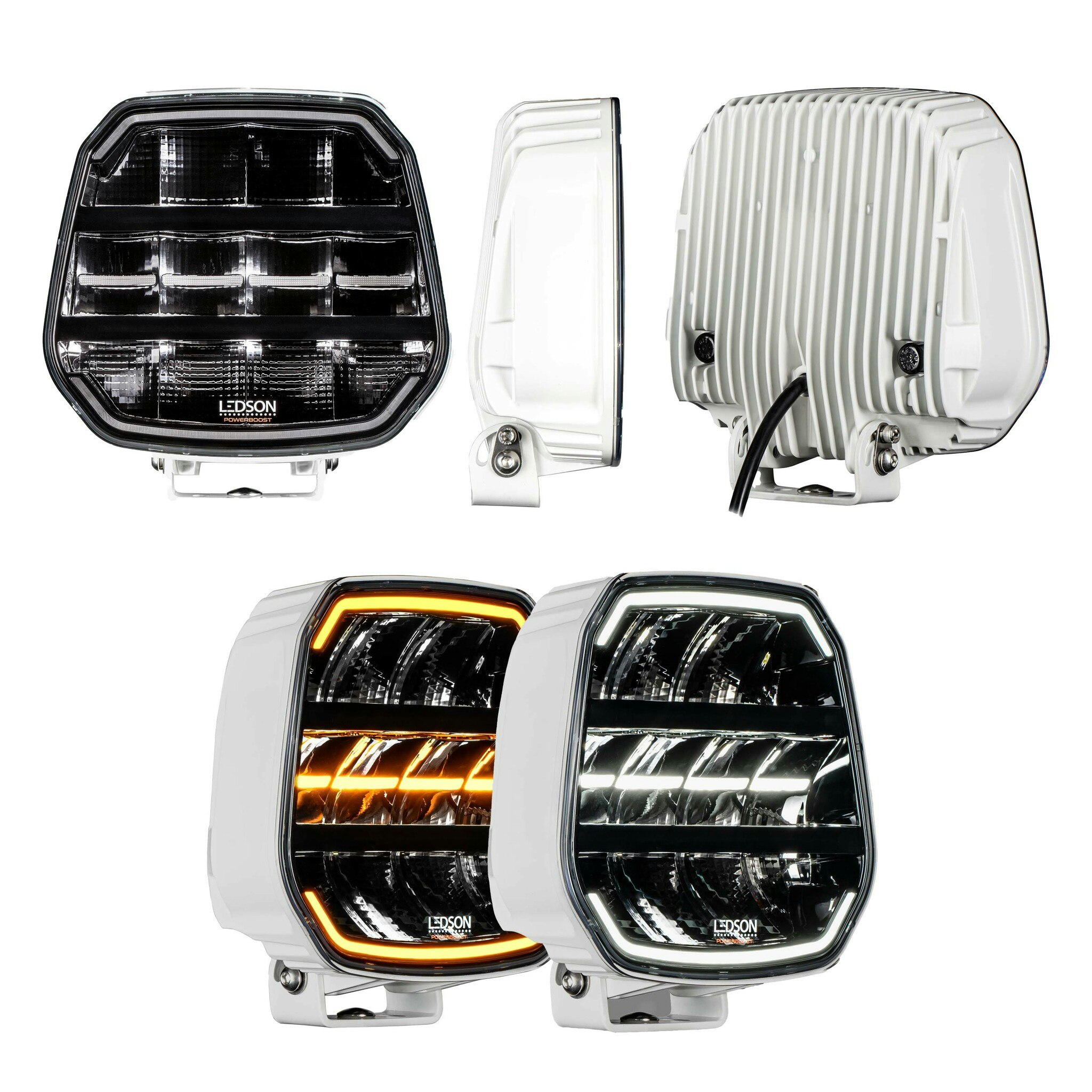

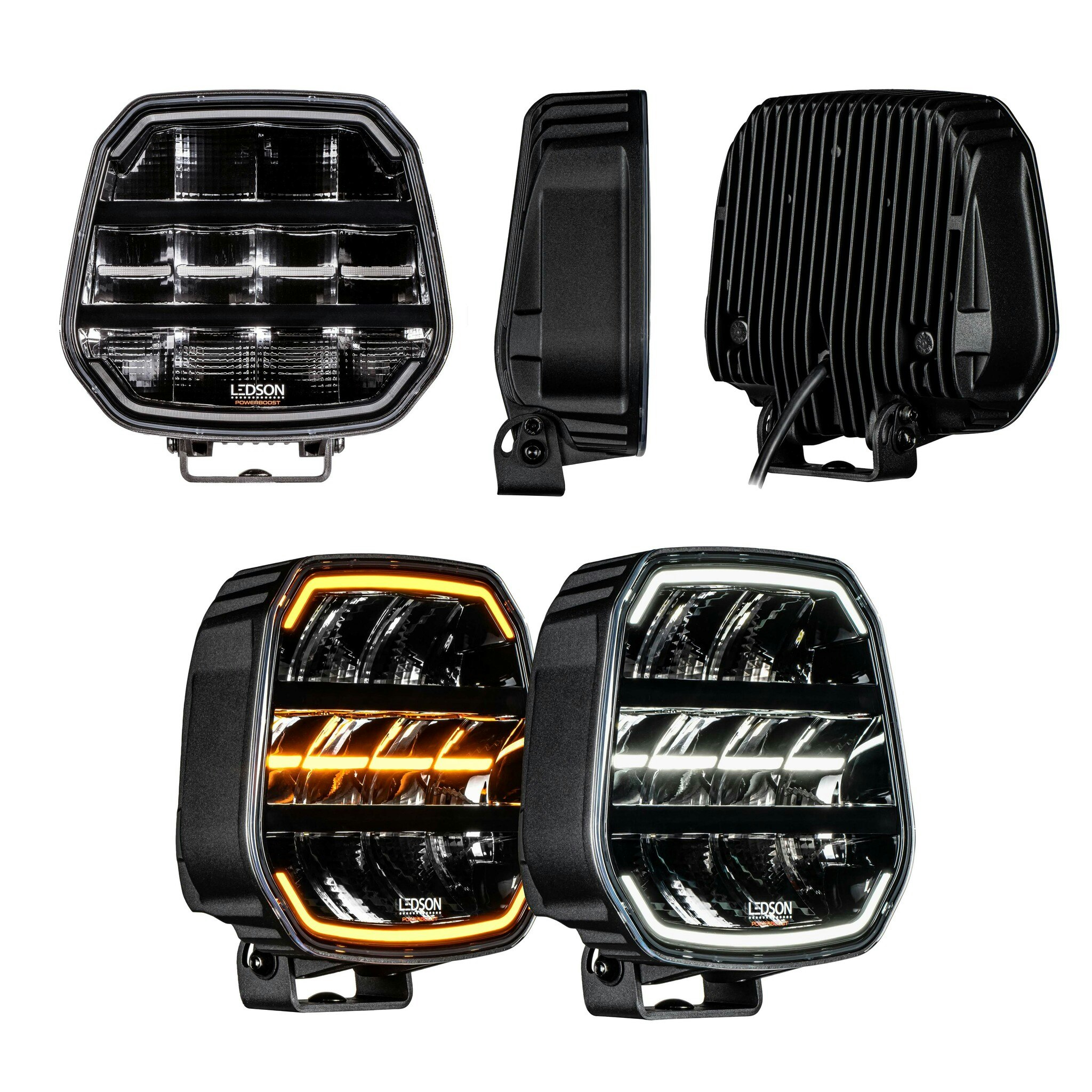

Epix9+ LED Driving Lights with Dynamic Position Light and Pulse-Controlled Powerboost

The Ledson Epix9+ is a powerful 9-inch LED driving light designed in Sweden, packed with innovative features. Its larger diameter not only makes a bold visual statement but also delivers outstanding lighting performance. The dynamic position light activates with a smooth, side-to-side sweep, giving your vehicle a high-end, modern look.

Activate Powerboost mode with a simple flick of your high beam lever to unleash maximum brightness โ€“ ideal for dark roads or tough weather conditions. The lights emit neutral white light (5000K) and produce up to 15,000 lumens (theoretical) and 11,000 lumens (actual) for optimal visibility.

Technical Specifications โ€“ Ledson Epix9+ Driving Lights:

  • Light Output: 15,000 lumens (theoretical), 11,000 lumens (actual)
  • Color Temperature: 5000K neutral white
  • Range (E-approved mode): 359 m (1 lux)
  • Range (Powerboost mode): 773 m (1 lux)
  • Beam Pattern: Driving Beam with 20ยฐ spread
  • Position Light: Dynamic, selectable xenon white or amber
  • Certifications: ECE R112 (Ref. 30), R7 (position light), R10 (EMC)
  • Dimensions: Width 225 mm, Height 223 mm (with mount), Depth 86 mm
  • Weight: 2.23 kg
  • Materials: Polycarbonate lens, aluminum heat sink, stainless steel bracket
  • Protection Rating: IP69K โ€“ waterproof and dustproof
  • LED Technology: Cree LEDs (4 x 20W + 4 x 10W)
  • Connection: 4-Pin DT-Connector
  • ETM: Electronic Thermal Management for optimal lifespan
  • Pressure-equalizing membrane
  • Warranty: 36 months

Stable Mounting with Brackets and Adjustable Stabilizing Rods

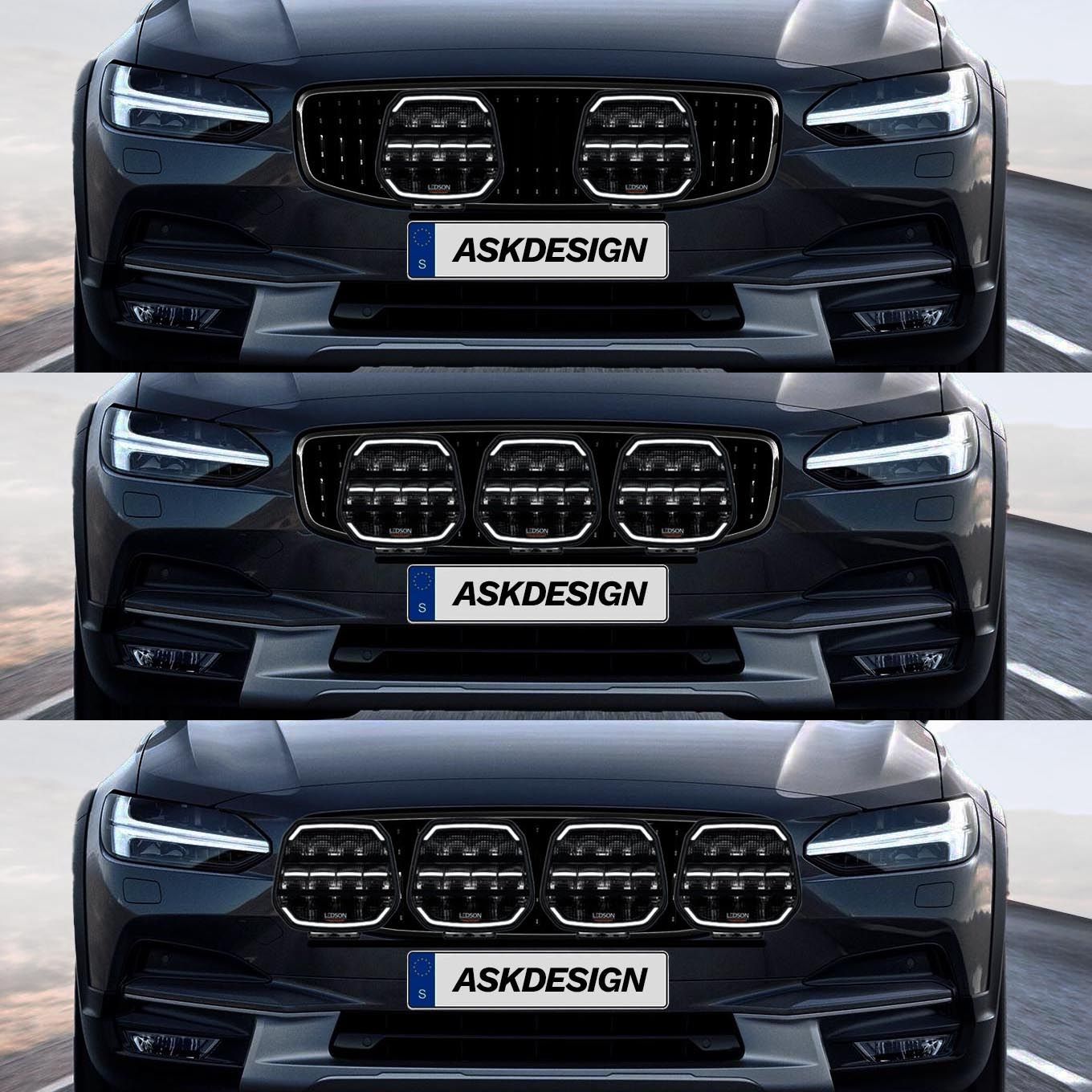

The kit includes a universal bracket that mounts behind the license plate, along with adjustable stabilizing rods for secure and steady mounting โ€“ even under harsh driving conditions. Compatible with most vehicles.

Heavy-Duty Relay Wiring Harness for Easy Installation

The included relay wiring harness is equipped with three DT connectors and supports up to 500W load. Featuring an 80A relay and 60A fuse, it ensures a safe and smooth installation. Compatible with the XBB system for additional control and connection options.

Key Benefits of the Ledson Epix9+ Driving Light Kit:

  • Dynamic position light for a unique and modern look
  • Powerboost mode for extra brightness on demand
  • Complete wiring kit for a safe and simple installation
  • E-approved and EMC certified โ€“ no radio interference
  • Ideal for Volvo, Tesla, pickups, SUVs, and work vehicles
  • Swedish-designed quality from Ledson

Upgrade your lighting setup with the Ledson Epix9+ โ€“ experience safer driving, improved visibility, and unmatched style.
