ASK Design Auxiliary Light Package – LEDSON Epix9+

ASK Design Auxiliary Light Package – LEDSON Epix9+

A complete auxiliary light package combining the Swedish-made ASK Design Auxiliary Light Mounting Bar with LEDSON Epix9+ 9" driving lights. Choose between 2 or 3 Epix9+ lights depending on your preferred setup and appearance.

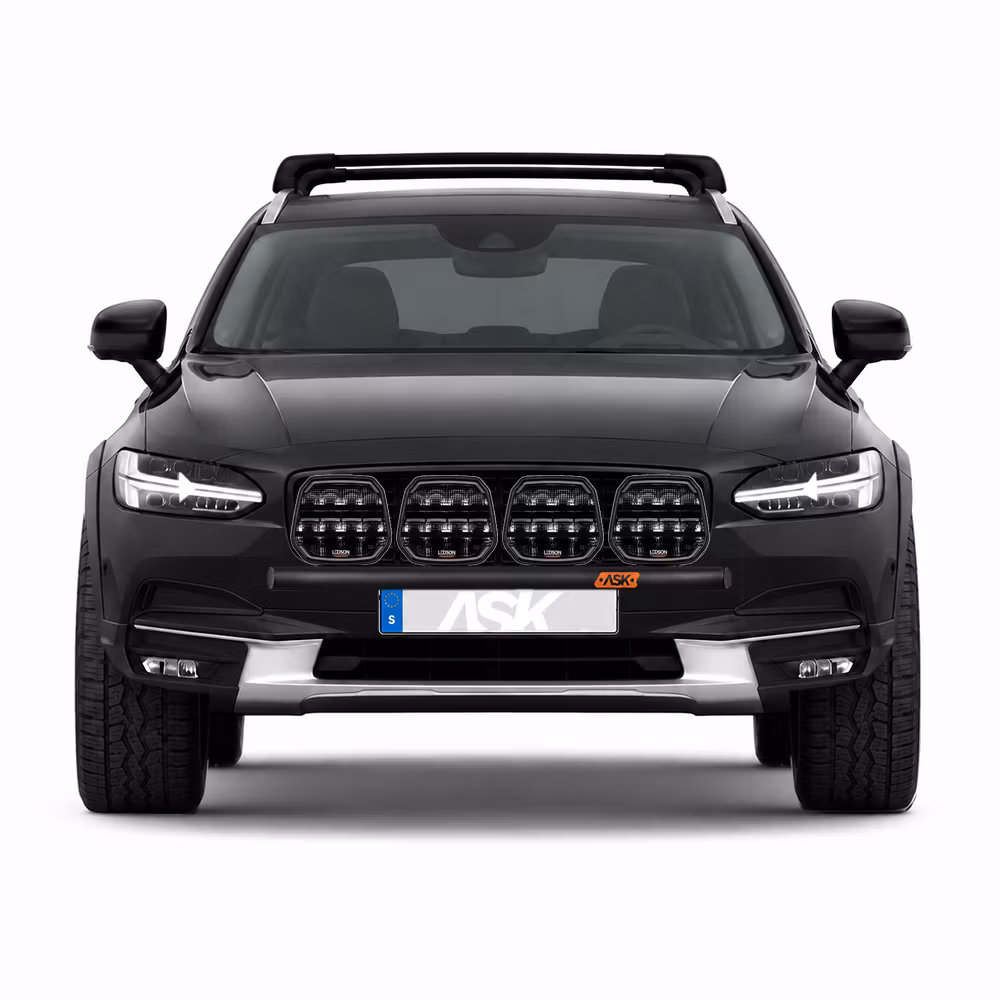

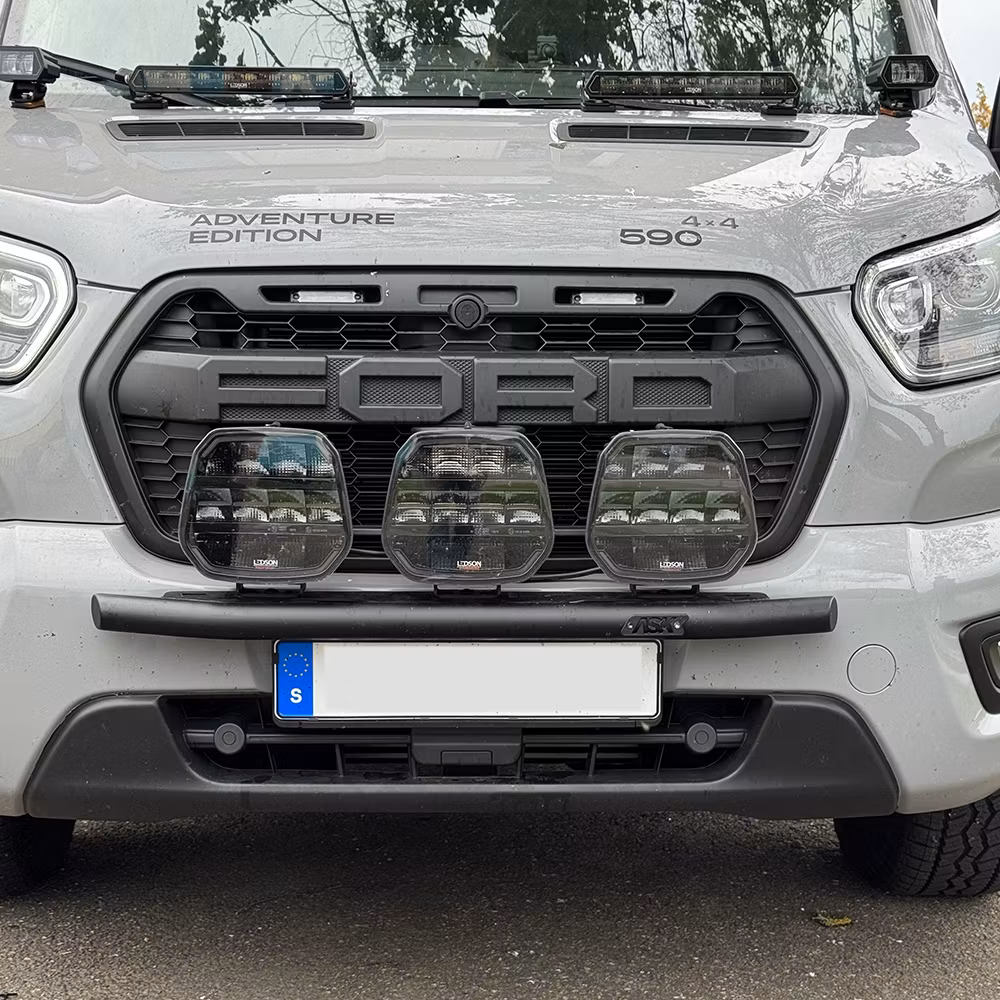

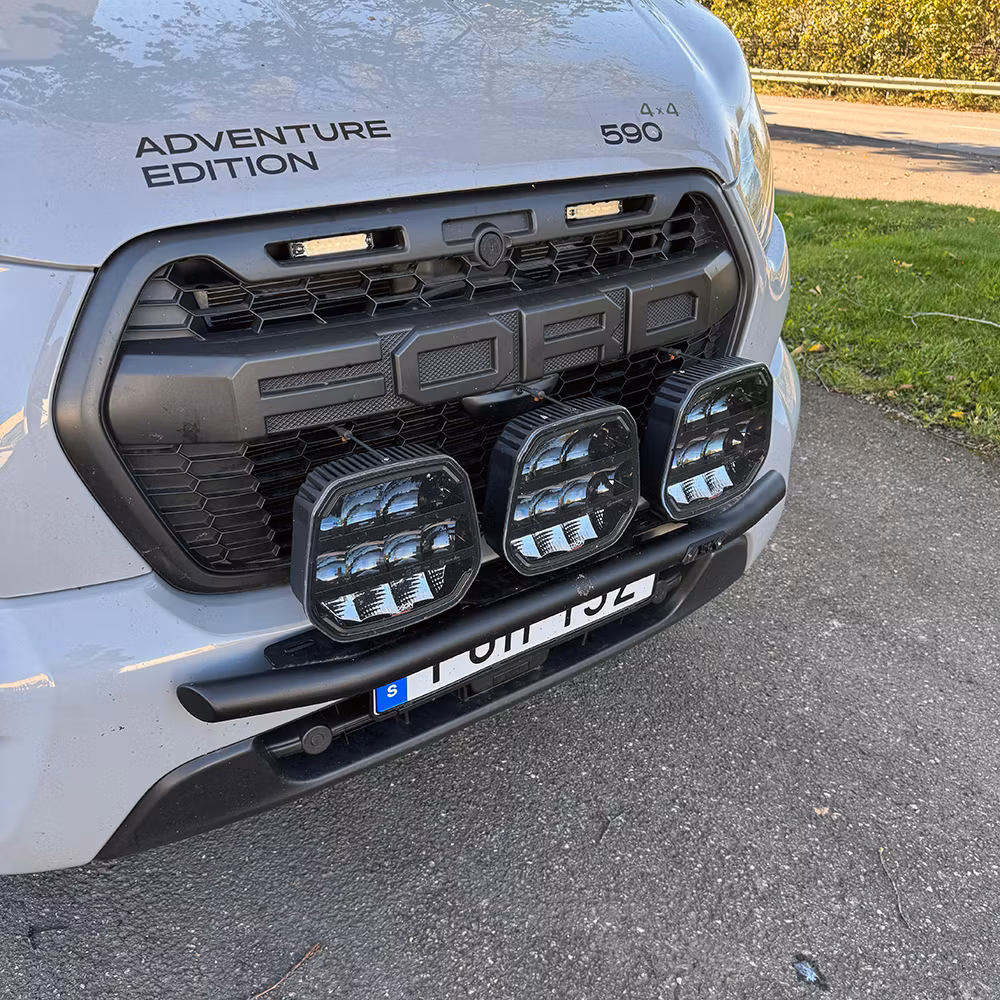

The ASK Design mounting bar is installed behind the vehicle's licence plate, providing a clean and stable solution for mounting multiple auxiliary lights at the front of the vehicle.

LEDSON Epix9+ – 9" with Powerboost

LEDSON Epix9+ is a high-performance 9-inch auxiliary driving light featuring LEDSON's own Swedish design. The distinctive shape combines powerful lighting performance with a modern appearance, creating a setup that stands out while maintaining a clean and integrated look.

Dynamic position light

Epix9+ features a dynamic position light with a sweeping start-up sequence that moves from one side of the light to the other before reaching full brightness. This creates a distinctive and recognisable light signature.

Pulse-controlled Powerboost

Epix9+ is equipped with LEDSON Powerboost, providing an additional high-output mode when maximum lighting performance is required.

Powerboost is controlled using the vehicle's high-beam stalk according to LEDSON's instructions. The lights are supplied in E-approved mode, with Powerboost activated according to the included instructions.

Swedish-made ASK Design mounting bar

The included mounting bar is designed by ASK Design and manufactured in Sweden.

Made from lightweight, corrosion-resistant aluminium, the bar provides a durable mounting solution without unnecessary weight. It is double powder-coated in black for additional protection against demanding Nordic weather and road conditions.

The integrated mounting plate is installed behind the licence plate, while multiple mounting points along the bar allow flexible positioning of the auxiliary lights.

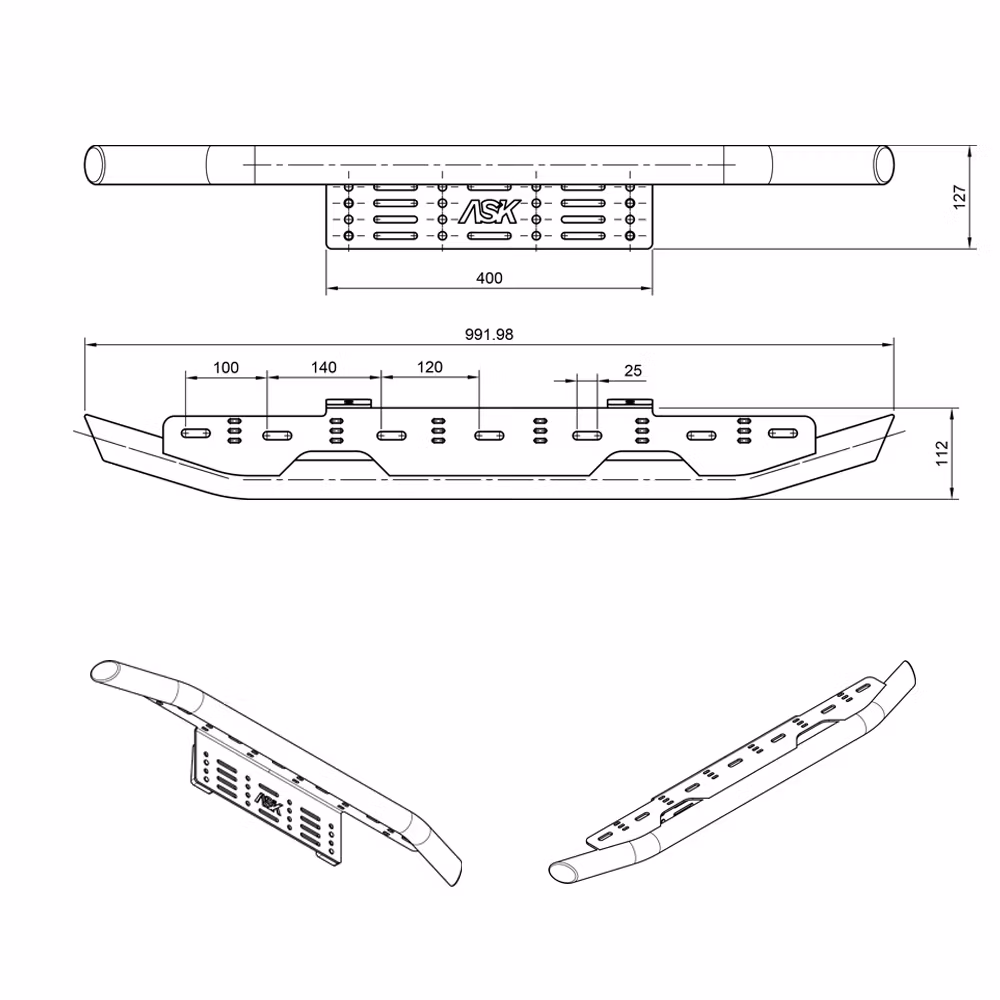

Mounting bar dimensions:

• Overall width: approx. 992 mm
• Overall height: 112 mm
• Licence plate mounting section: 400 × 127 mm

Choose your setup

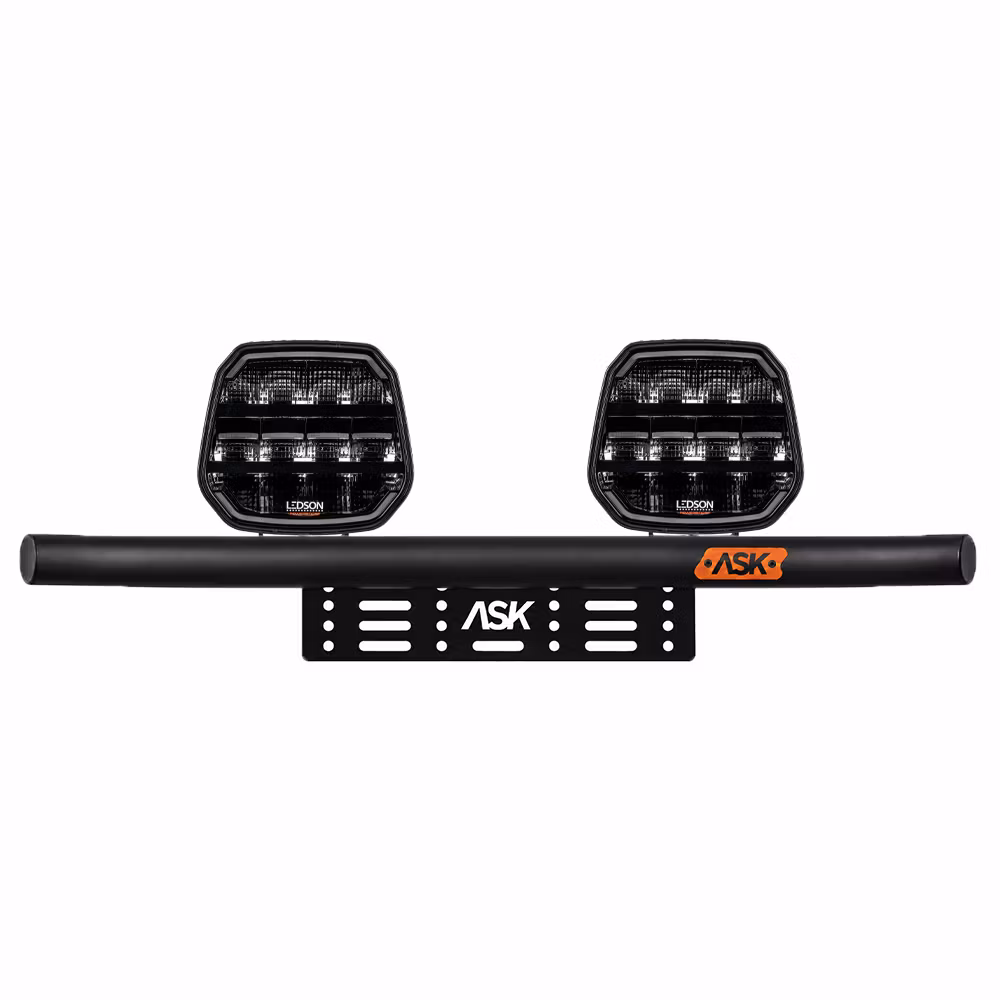

• 2 × LEDSON Epix9+ 9" + ASK Design mounting bar

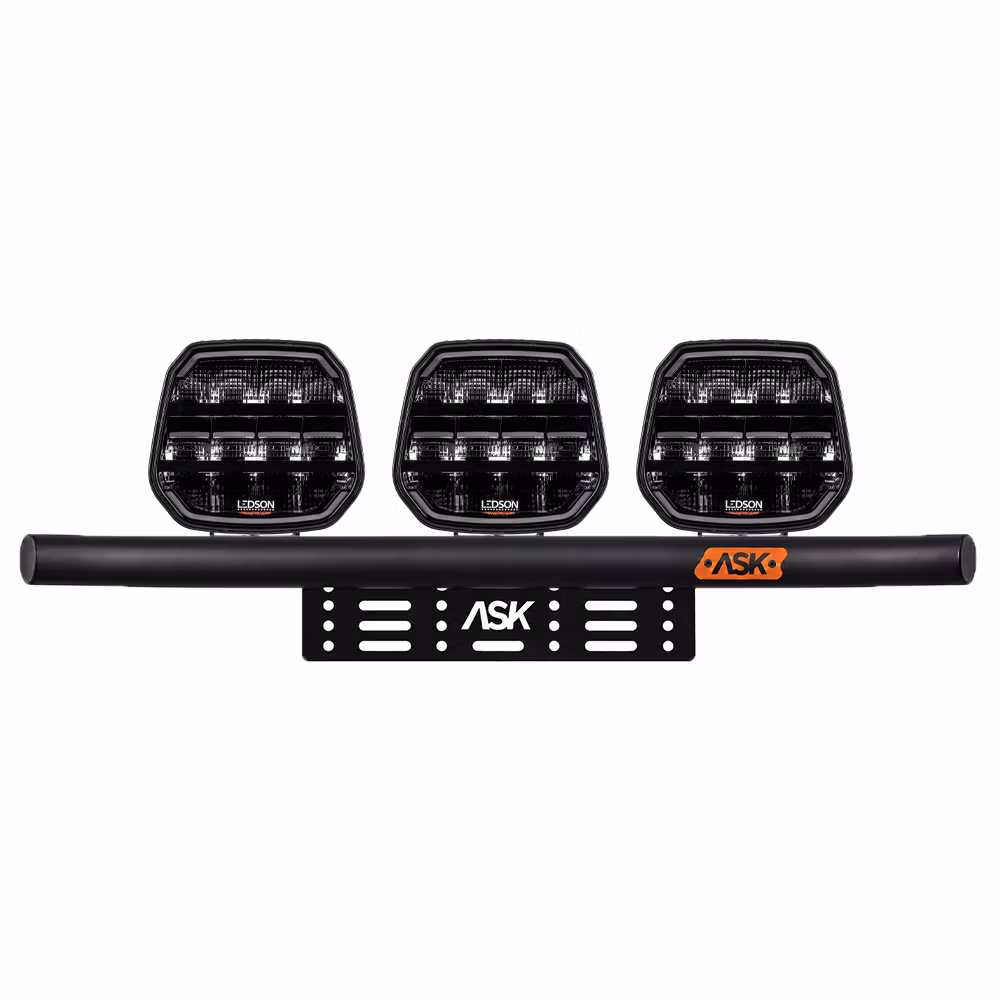

• 3 × LEDSON Epix9+ 9" + ASK Design mounting bar

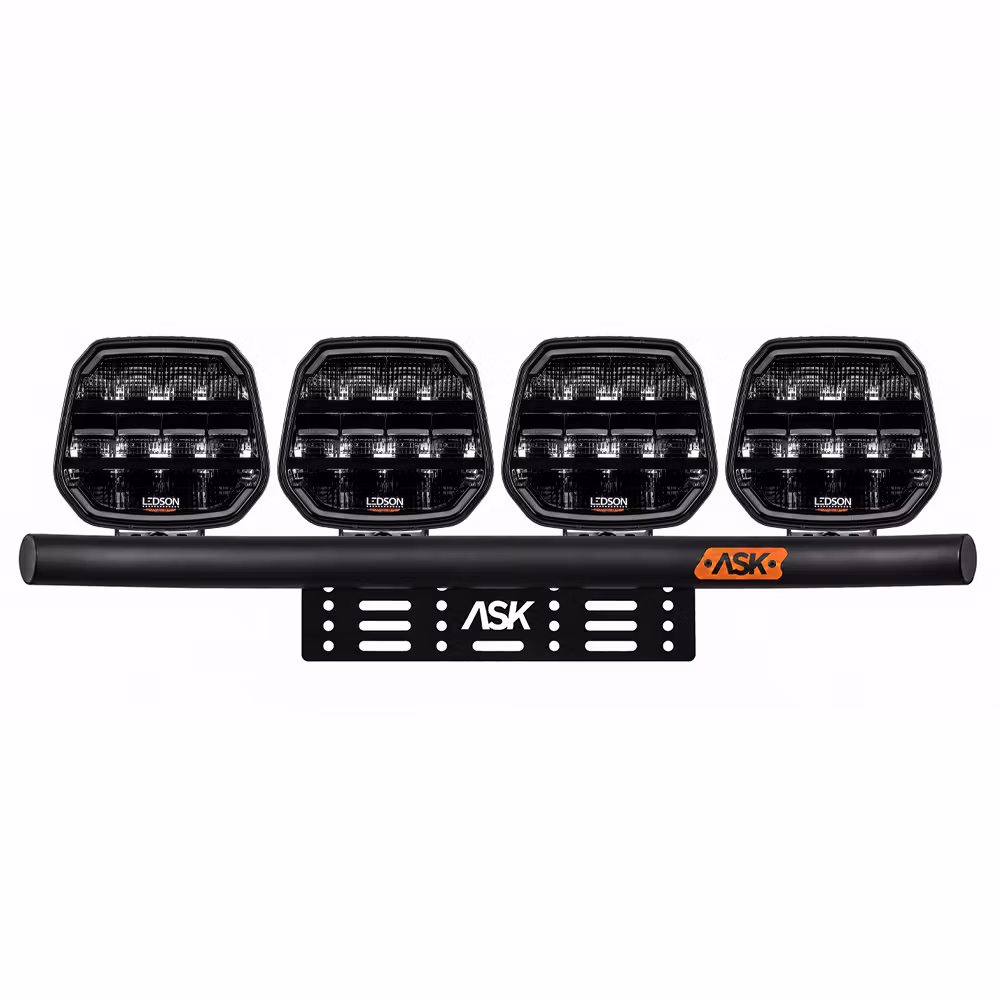

• 4 × LEDSON Epix9+ 9" + ASK Design mounting bar

Wiring harness and stabilising rods included at no extra cost

The package includes a wiring harness and stabilising rods at no extra cost, providing the essential components for a stable and practical installation.

Epix9+ uses a 4-pin DT connector and is designed for use with LEDSON Connect wiring. The system is also compatible with XBB Dongle and Power Unit on supported vehicle models.

Package includes

• 1 × ASK Design Auxiliary Light Mounting Bar
• 2 or 3 × LEDSON Epix9+ 9", depending on selected option
• Wiring harness – included at no extra cost
• Stabilising rods – included at no extra cost
• Brackets, bolts and screws supplied with the driving lights
• Installation instructions for the driving lights

Important: The DT connectors must not be cut, as this increases the risk of moisture damage and will void the warranty.
