OPTIBEAM Super Captain Dual 800 - 30" 370W

Optibeam Super Captain Dual 800 – extreme LED light bar with BOOST mode

The Optibeam Super Captain Dual 800 is the next step after the success of the Super Captain Dual 600. Longer, more powerful, and with an optimized beam pattern. Perfect for Volvo, Tesla, pickups, work vehicles, and trucks such as Scania and Volvo Trucks.

A high-performance LED light bar for those who drive frequently in dark conditions on rural roads, forest and countryside environments, or in professional transport. The 5000K color temperature provides a softer, more natural light that reduces eye fatigue.

Advantages compared to Super Captain Dual 600

• Longer bar: 766 mm (previously 525 mm)
• Significantly higher measured lumen output: 30,900 lm (previously 19,896 lm)
• More eye-friendly color temperature: 5000K (previously 6000K)
• Wider beam pattern and longer throw distance

Double Up-BOOST function

Two modes depending on driving conditions:

Boost on – maximum distance

• 725 m @ 1 lux
• Ideal for countryside and highway driving

Boost off – wider beam

• 245 m @ 1 lux
• Better in rain, snow, and fog

Double-Up activates automatically when the limiter wire is left disconnected or via switch.

Frameless lens and Nordic design

Frameless lens prevents snow, ice, and dirt from sticking. Designed for Nordic conditions where maximum light performance is required year-round.

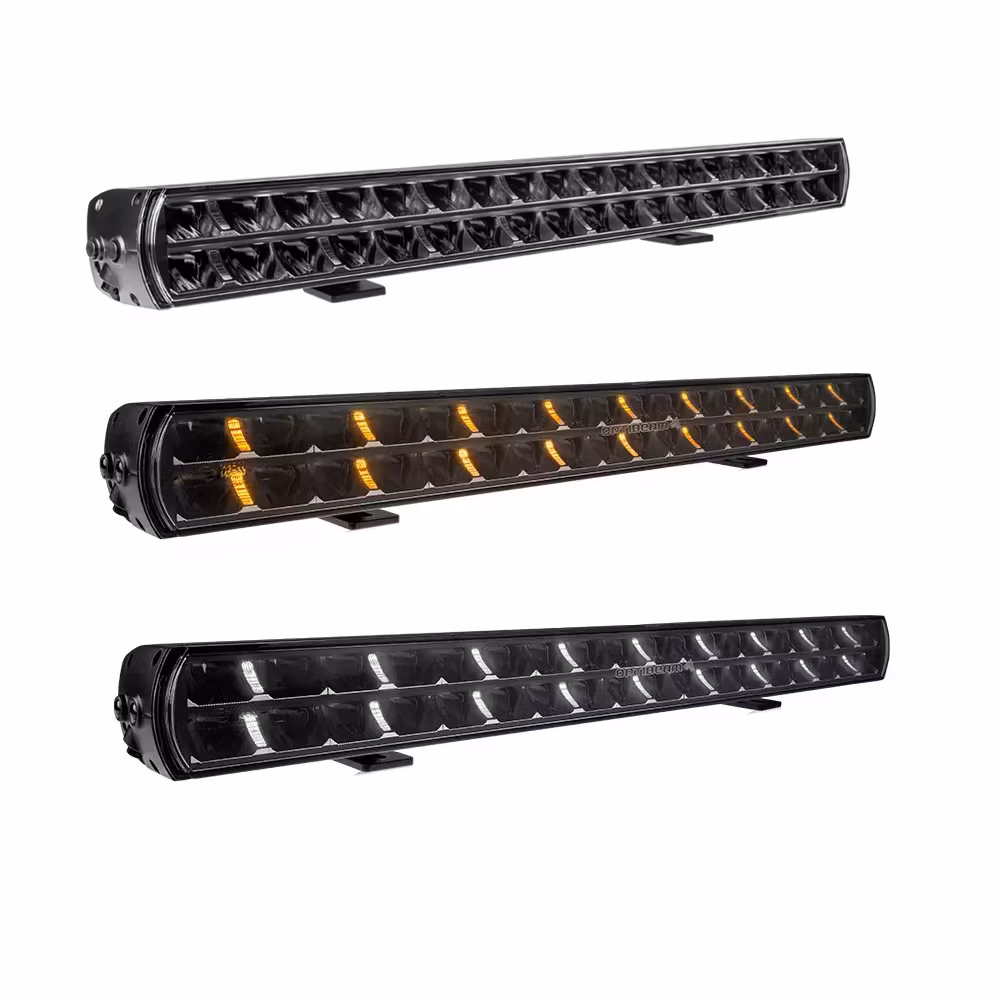

Selectable amber or white position lights depending on vehicle and preference.

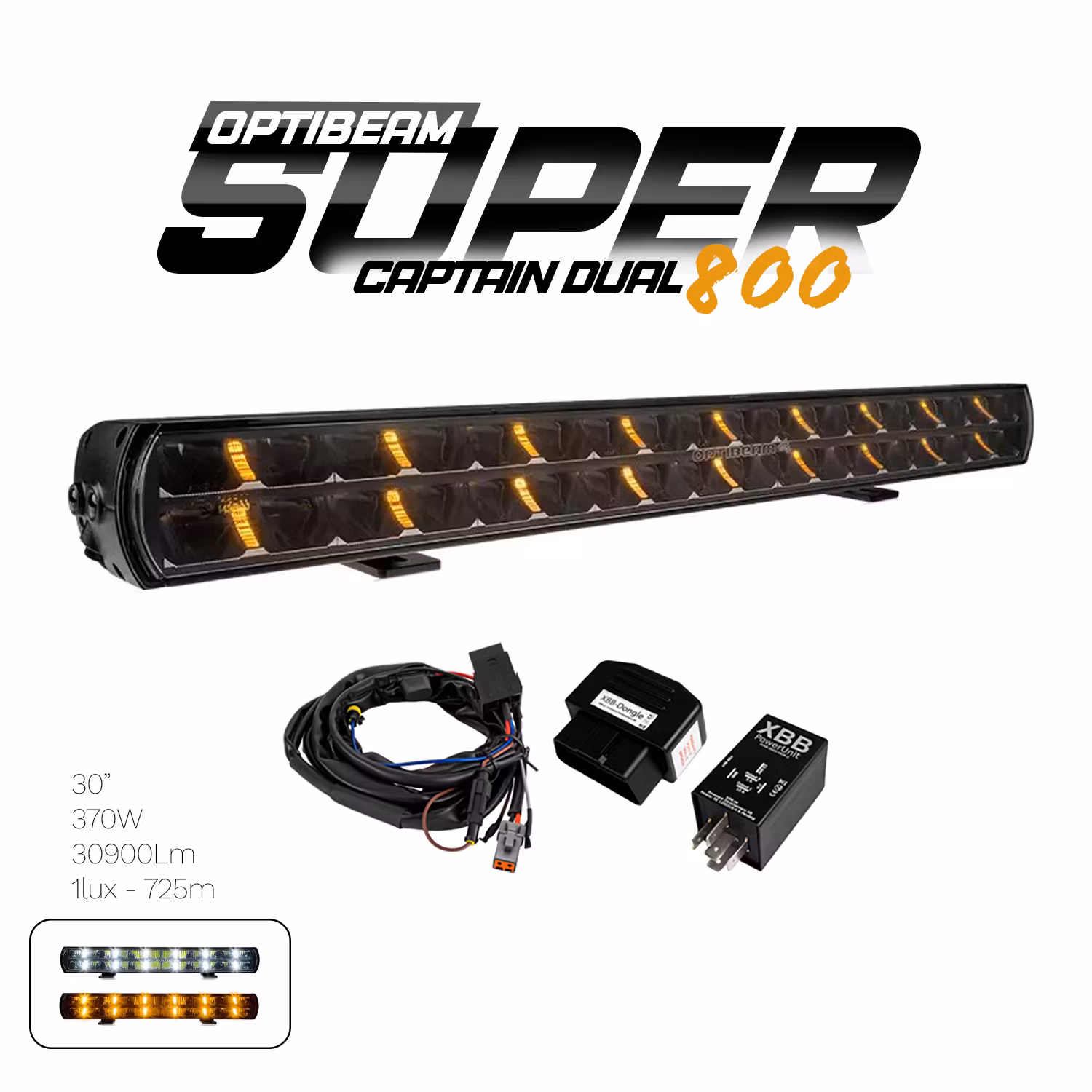

Available kits

Kit 1 – LED light bar
For vehicles where wiring already exists.

• Optibeam Super Captain Dual 800

Kit 2 – LED light bar + complete wiring harness
Everything needed for installation.

• Optibeam Super Captain Dual 800
• Relay kit and wiring harness

Kit 3 – Complete PRO kit (LED bar + harness + XBB system)
Recommended for modern cars such as Volvo, Tesla, pickups, work vans, and commercial vehicles.

• Optibeam Super Captain Dual 800
• Relay kit and wiring harness
• XBB CANBUS interface, no wire cutting required

Technical specifications

• Measured light output: 30,900 lm
• Color temperature: 5000K
• Distance: 725 m @ 1 lux
• Dimensions: 766 × 68 × 73 mm
• 36 LEDs
• Voltage: 9–36V
• Current draw: 27A @ 13.7V
• Position light: white / amber
• Certifications: R112, R10
• Rating: IP68
• Warranty: 3 years

Suitable for

• Volvo cars (roof mounting or similar)
• Pickups
• Work and service vehicles
• Trucks: Scania and Volvo Trucks
• Transport and construction vehicles

Summary

The Optibeam Super Captain Dual 800 is a premium LED light bar with high output, adjustable beam pattern through Double-Up boost, and a frameless lens designed for Nordic weather conditions. An ideal choice for both private and professional drivers seeking maximum performance and reliability.
