XBB - Digital Relay Kit 2-Channel

XBB Digital Relay Kit – Easy and Wireless Control for Your Lighting System

Discover the XBB Digital Relay Kit, the smartest and most efficient solution for controlling your auxiliary lights and LED light bars. With this kit, you get a complete, wireless installation via your vehicle’s OBD-II port, making the installation quick and easy. Perfect for both new and older vehicles using LED or xenon high beams. The XBB kit allows your LED light bar or auxiliary lights to turn on and off in sync with your vehicle's high beam, without the need to cut into the wiring harness.

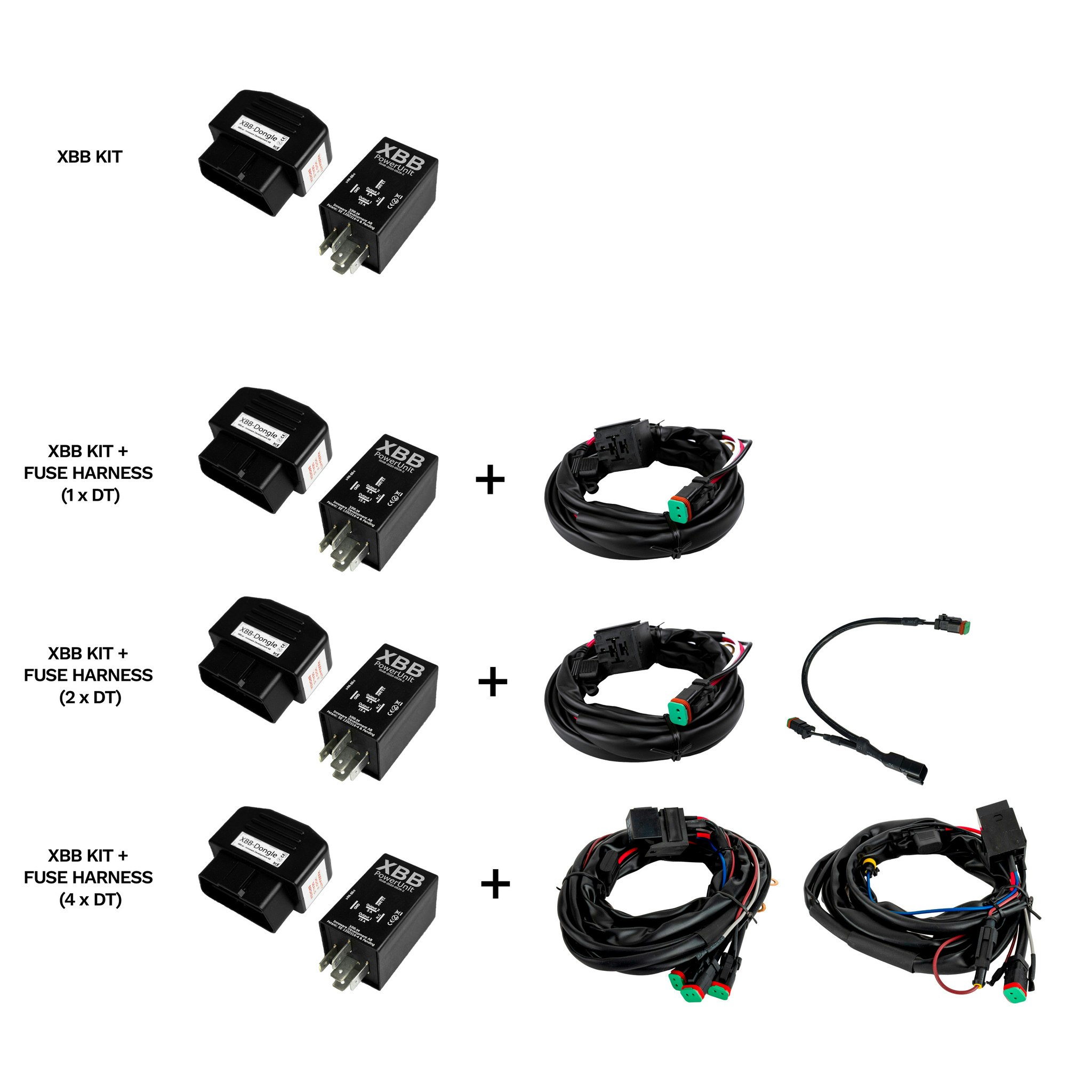

Four Package Options:

• XBB Kit (PowerUnit & Dongle) – for easy control of auxiliary lights and LED light bars.

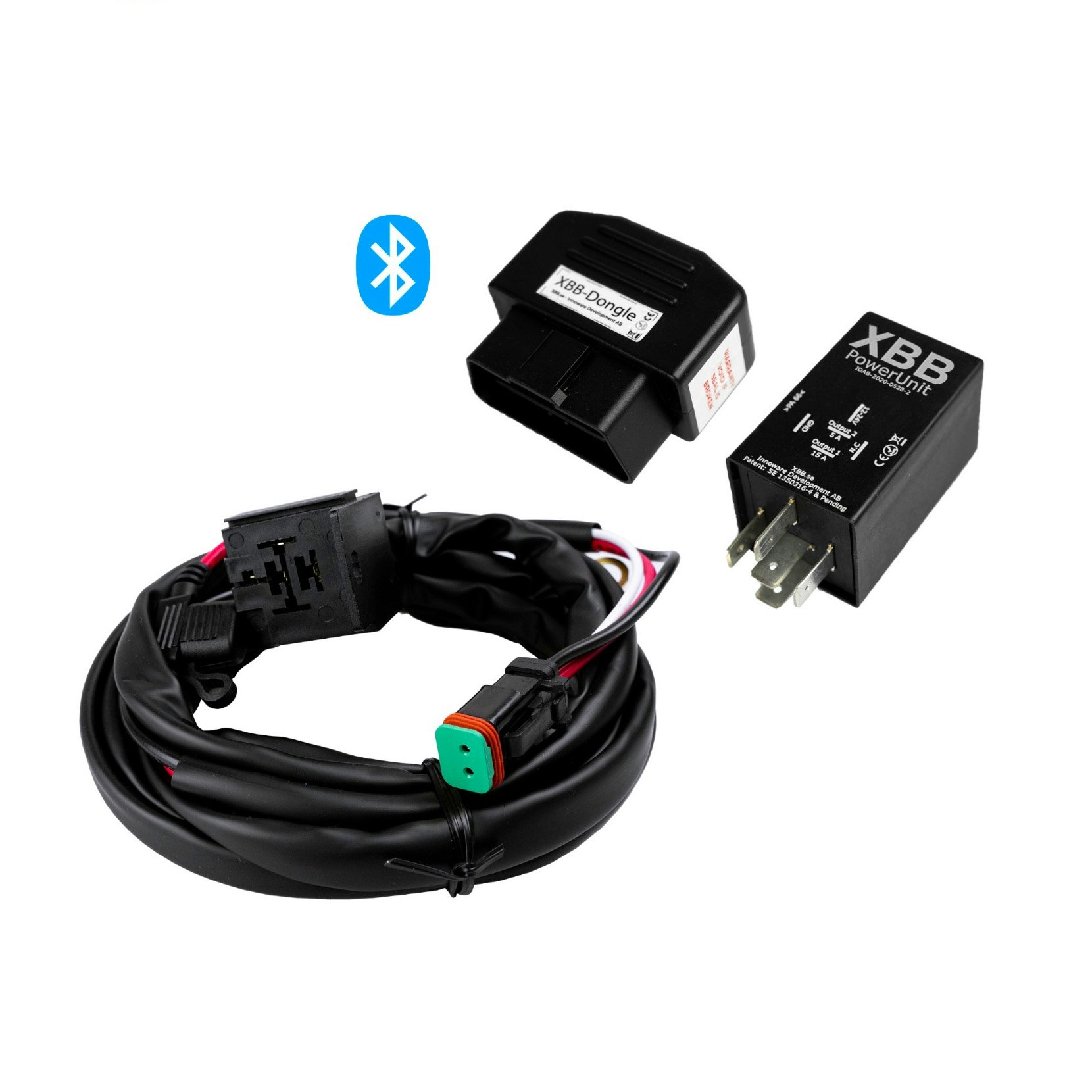

• XBB Kit with Cable Set and 1 x 2-pin DT Connector – for one LED light bar or auxiliary light.
• XBB Kit with Cable Set and 2 x DT Outputs – for up to two LED light bars or auxiliary lights.
• XBB Kit with Two Cable Sets and 4 x DT Outputs – for maximum flexibility with four auxiliary lights or LED light bars.

Features and Benefits:

• Easy Installation: Complete your installation in just 15 minutes. No hassle of searching for CAN bus cables or running wires through the firewall.
• Wireless Communication: The XBB Dongle and PowerUnit communicate via Bluetooth, making it easy to connect and control via the XBB Configurator app (available for both Android and iOS).
• App Control: Customize and adjust settings directly from your smartphone to sync your LED light bar or auxiliary lights with your vehicle’s high beam.
• No Impact on Vehicle's Electrical System: Avoid error codes and warranty issues.
• Flexibility: Choose from various cable set options depending on how many auxiliary lights you want to connect, from 1 to 4 DT outputs.

Compatibility:

• Fits most vehicles with an OBD-II port (Note: Not compatible with Tesla Model 3/Y).
• Perfect for cars, SUVs, pickups, work vehicles, and heavy trucks.

Package Contents:

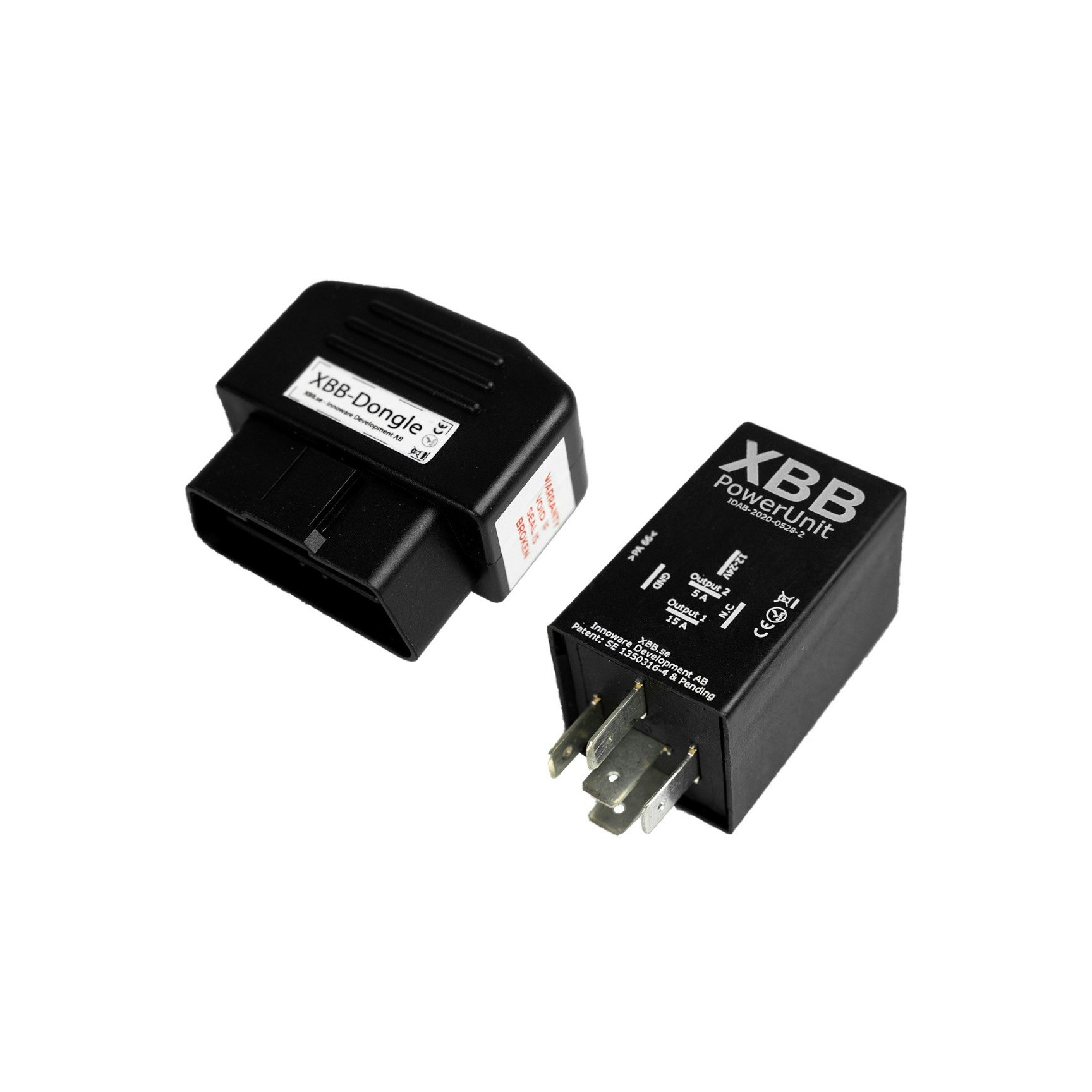

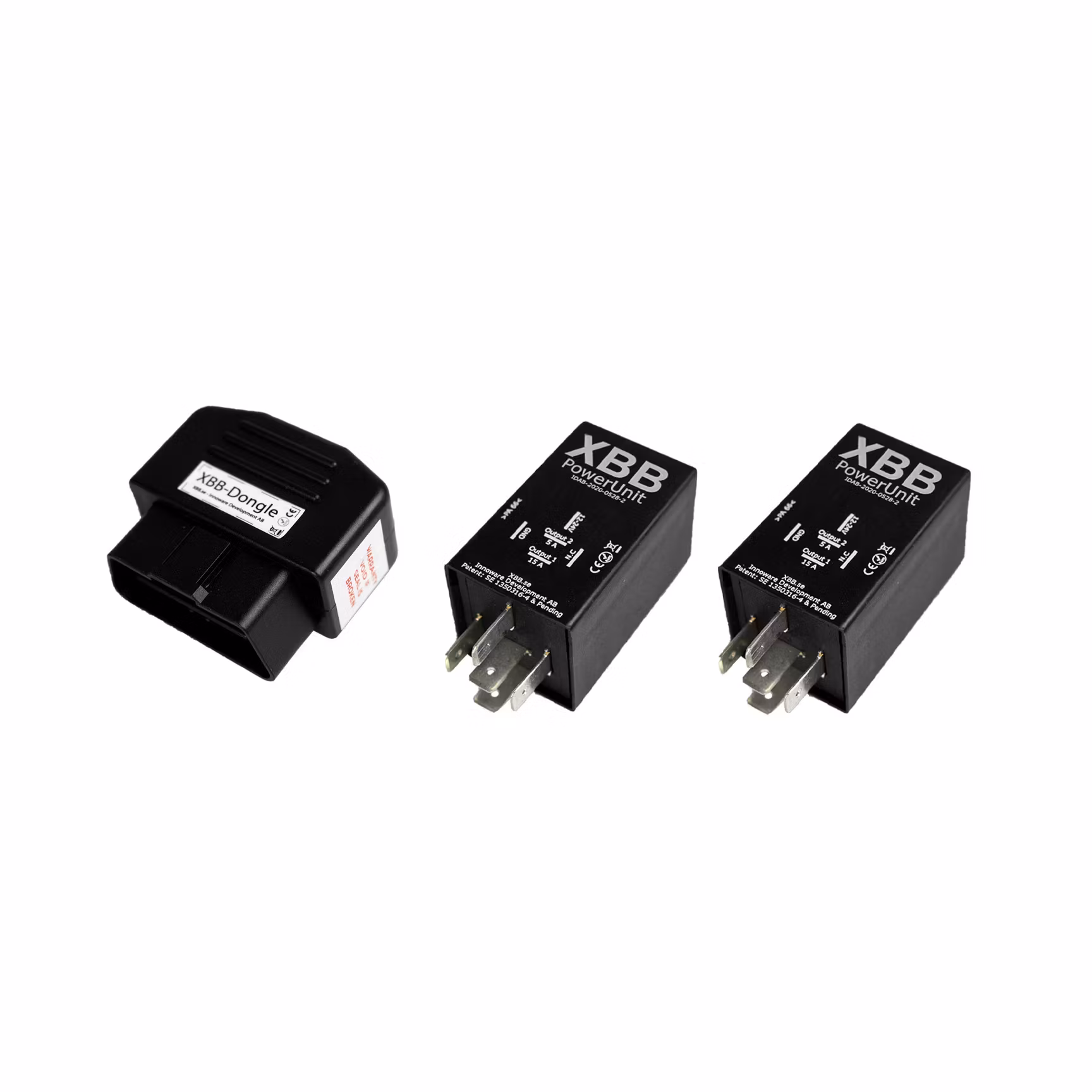

• 1 x XBB Dongle
• 1 x XBB PowerUnit
• Necessary wiring depending on the chosen kit (1, 2, or 4 DT outputs).

Installation:

1. Download and install the XBB Configurator app on your phone.
2. Connect the XBB Dongle to the OBD-II port of your vehicle.
3. Install the XBB PowerUnit in the engine compartment and connect it to the battery or fuse box.
4. Connect the DT connector(s) to the LED light bar or auxiliary lights.
5. Follow the instructions in the app to complete the installation and pair the devices.

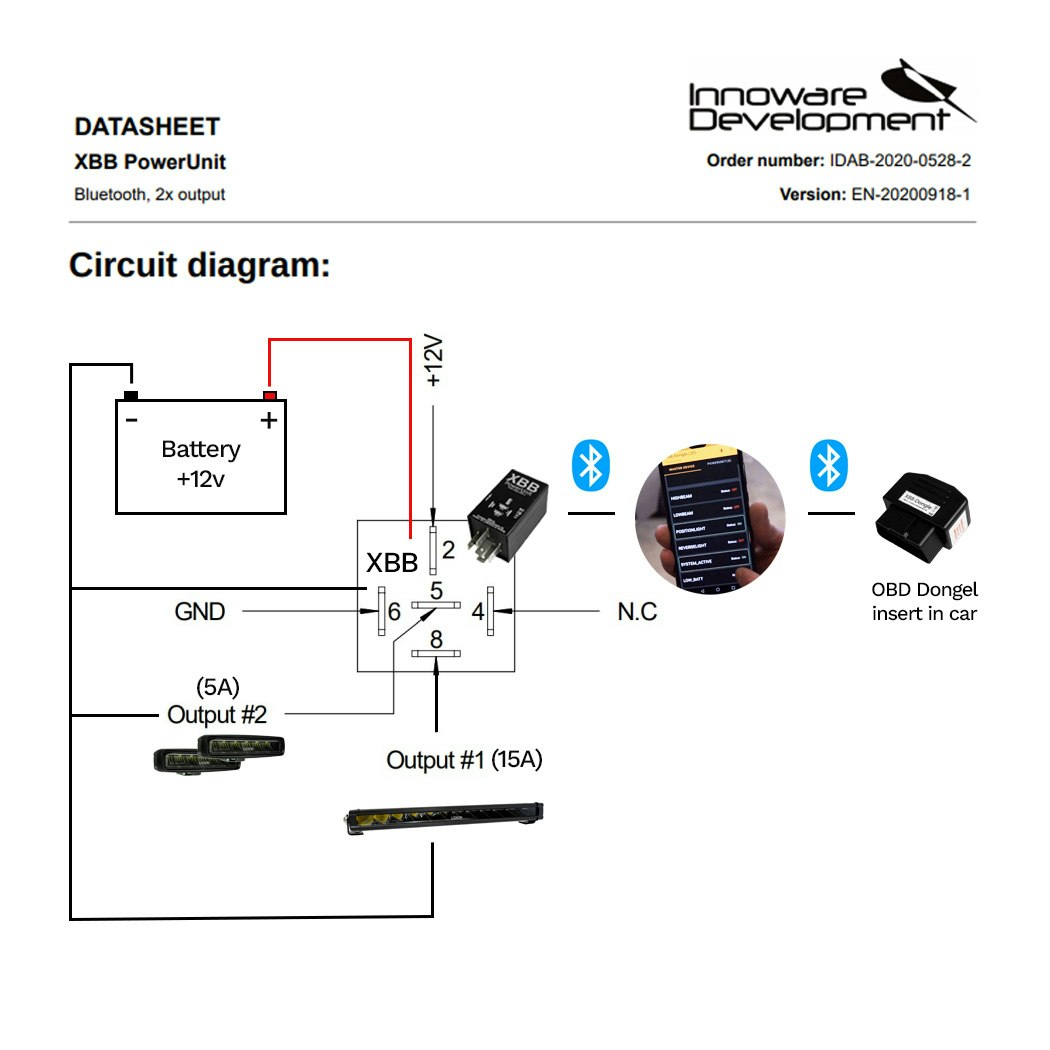

PowerUnit Outputs:

• Output 1 (max 15A, 180W at 12V) – for LED light bar or auxiliary light.
• Output 2 (max 5A, 60W at 12V) – for position lights or reverse lights (optional).
  Set the functions through the app to suit your needs.

The XBB Digital Relay Kit makes it easy to control your lighting with a modern, wireless solution that saves time and simplifies the installation of auxiliary lights and LED light bars. Perfect for anyone looking for a convenient and reliable solution for their lighting system.
