Led Bar Kit - Optibeam Super Captain Dual 600 Curved - 20" 313W

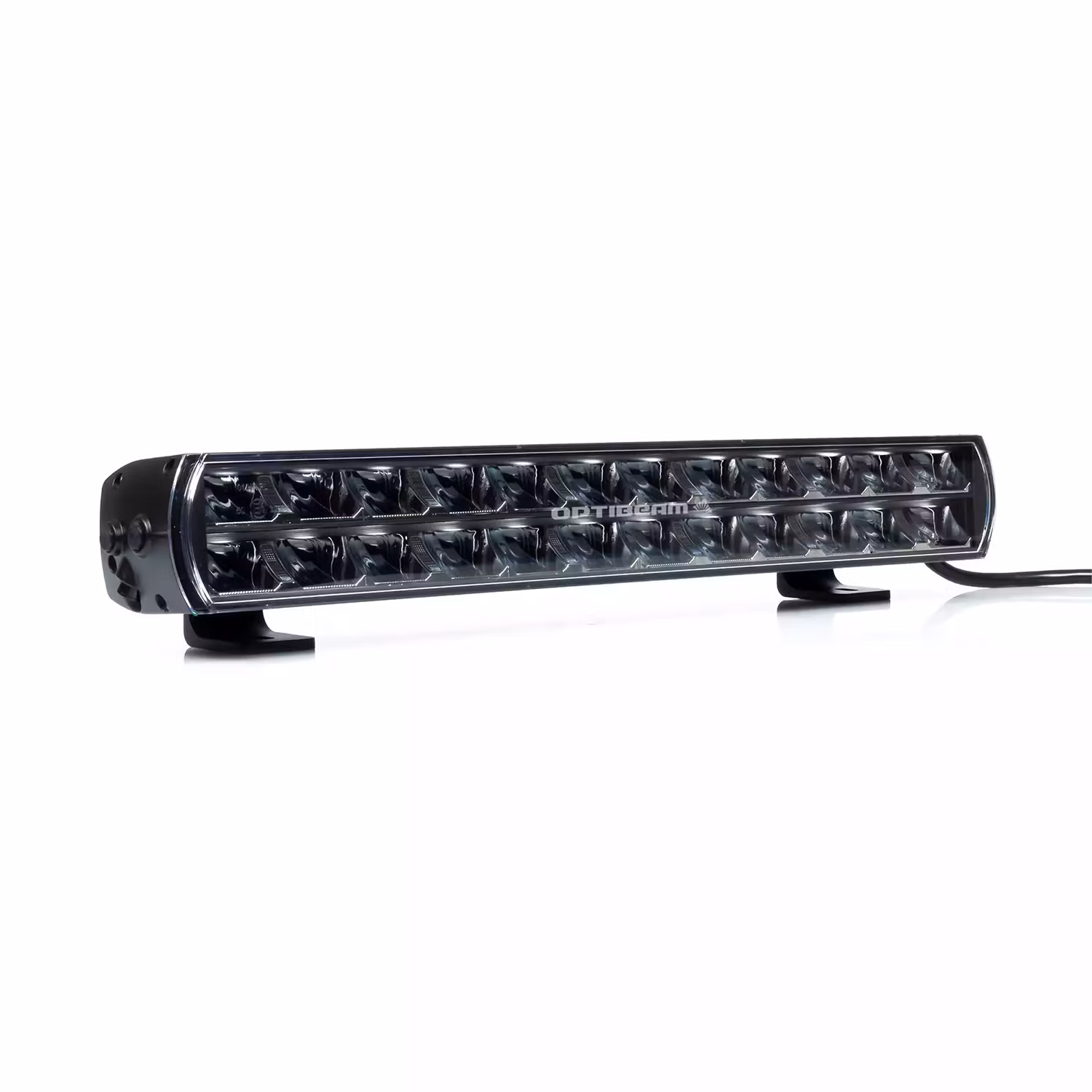

Optibeam Super Captain Dual 600 Curved – powerful curved LED light bar with BOOST mode

Discover the new Optibeam Super Captain Dual 600 Curved – the long-awaited upgrade of Optibeam’s most popular LED light bar!
Now with a curved design for improved light spread, longer range, and a sleek, aerodynamic look.

Perfect for Volvo, Tesla, pickups, work vehicles, and trucks such as Scania and Volvo Trucks – or for those who drive off-road and want the best in both performance and style.

Unmatched power and performance

The Super Captain Dual 600 Curved is engineered to deliver unbeatable brightness in its class.

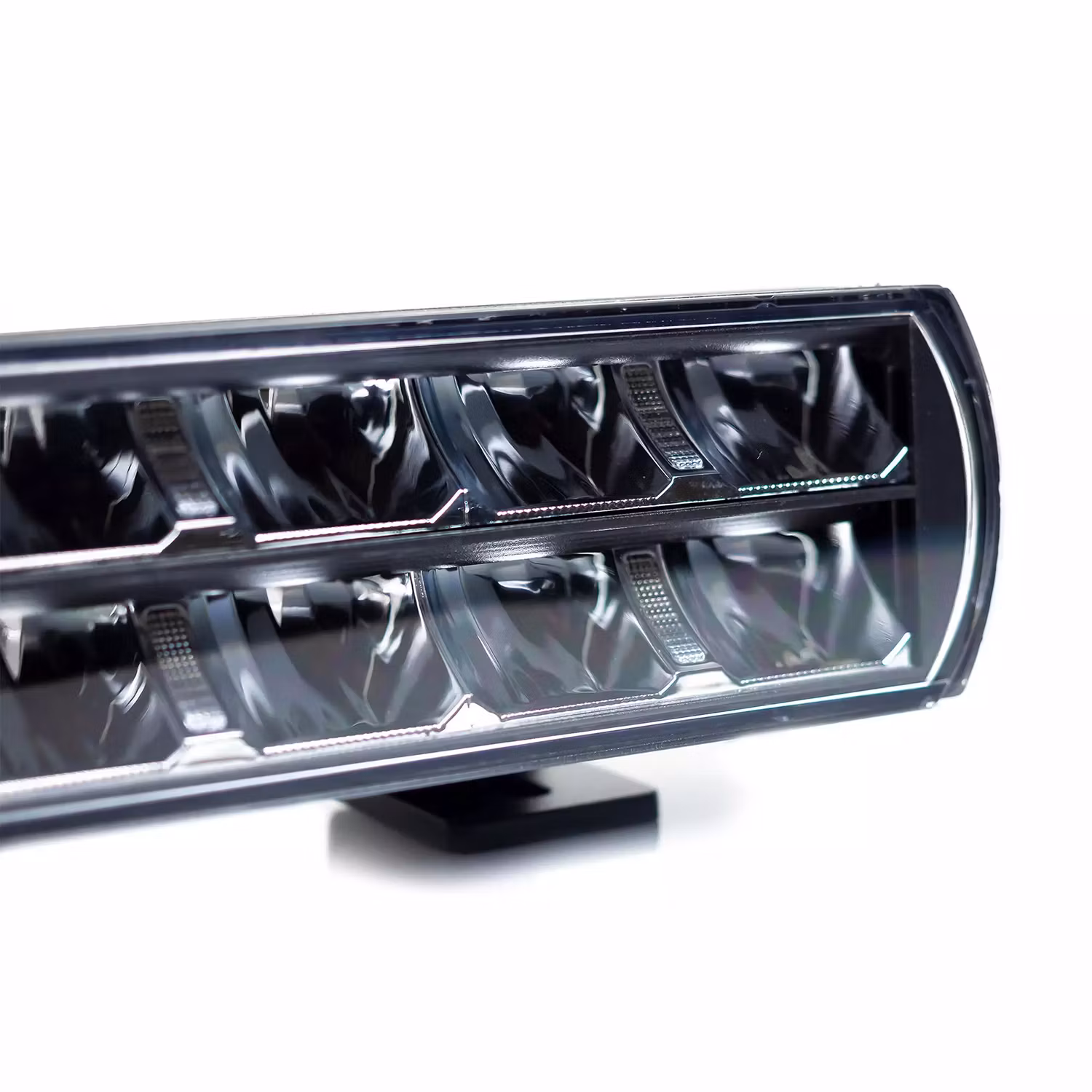

Its compact, curved construction houses 24 high-performance LEDs, producing an impressive 21,000 real lumens.
Thanks to its precision-engineered reflector, you get an optimized light pattern that illuminates the road, lane markings, and obstacles effectively – even in the toughest driving conditions.

Double Up-BOOST – next level brightness

Experience the power of Double Up mode, which boosts the light output to a remarkable 21,000 lumens.
Perfect for dark highways, off-road trails, or long nighttime journeys.

• Boost on: maximum distance – up to 787 m @ 1 lux
• Boost off: wider beam – ideal in fog, rain, or snow

The Double-Up function activates automatically when the limiter wire is left disconnected or through a switch.

Stylish and functional design

The Super Captain Dual 600 Curved combines high performance with refined design.

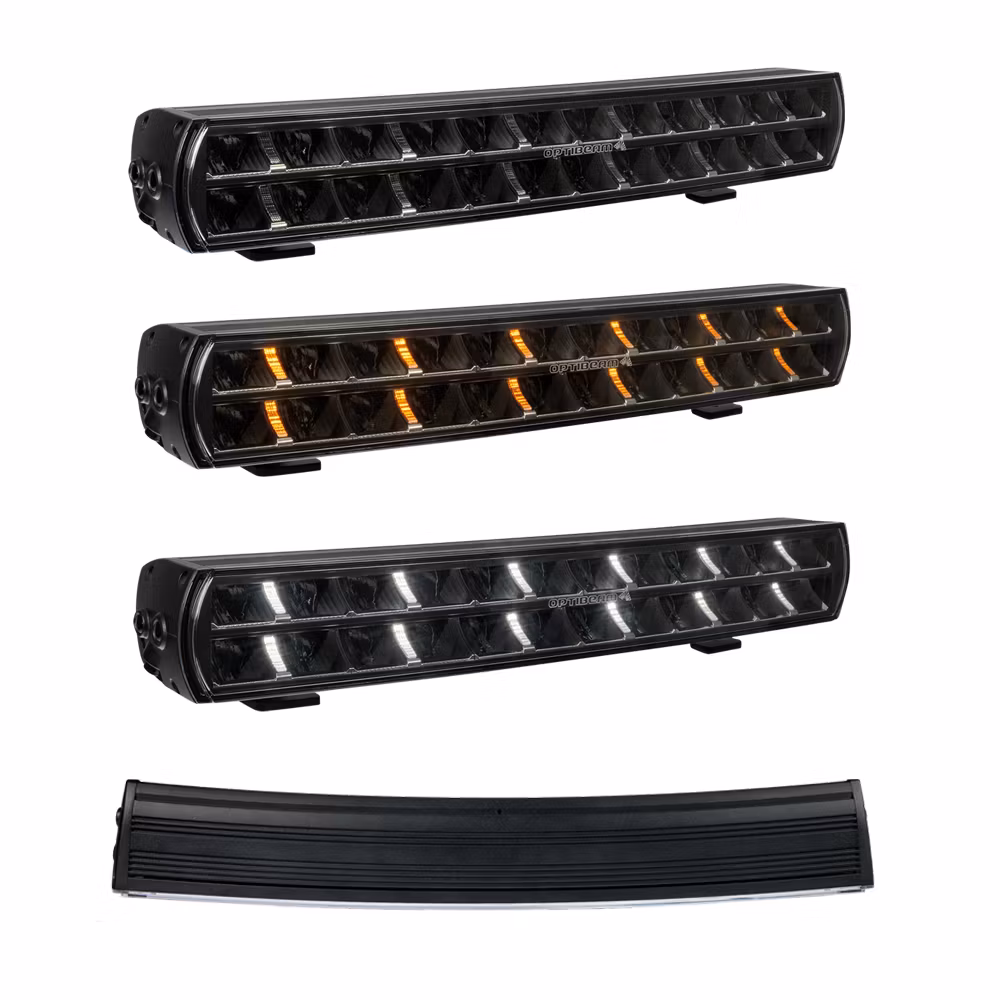

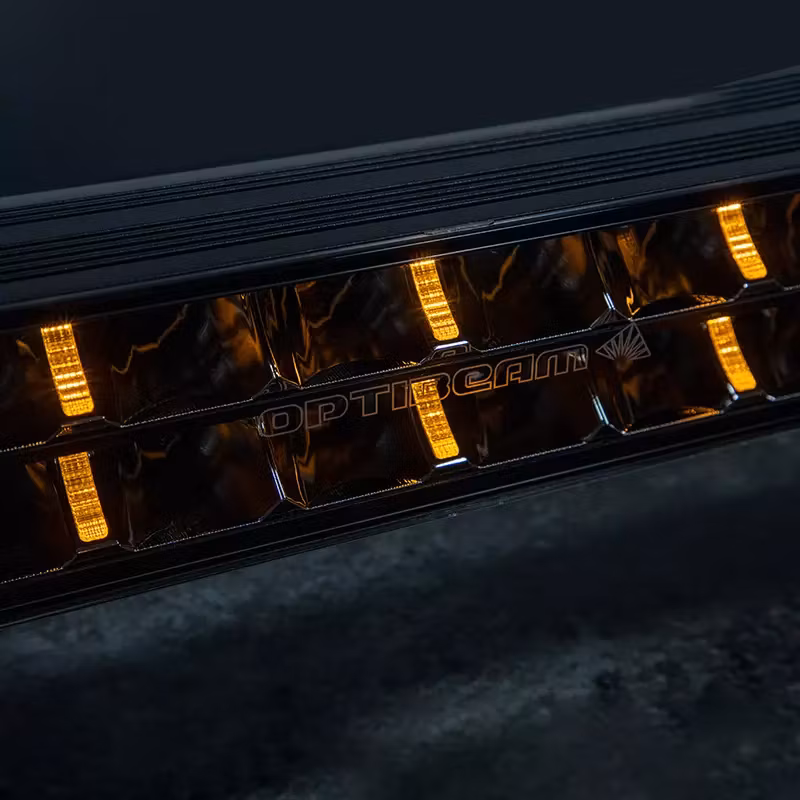

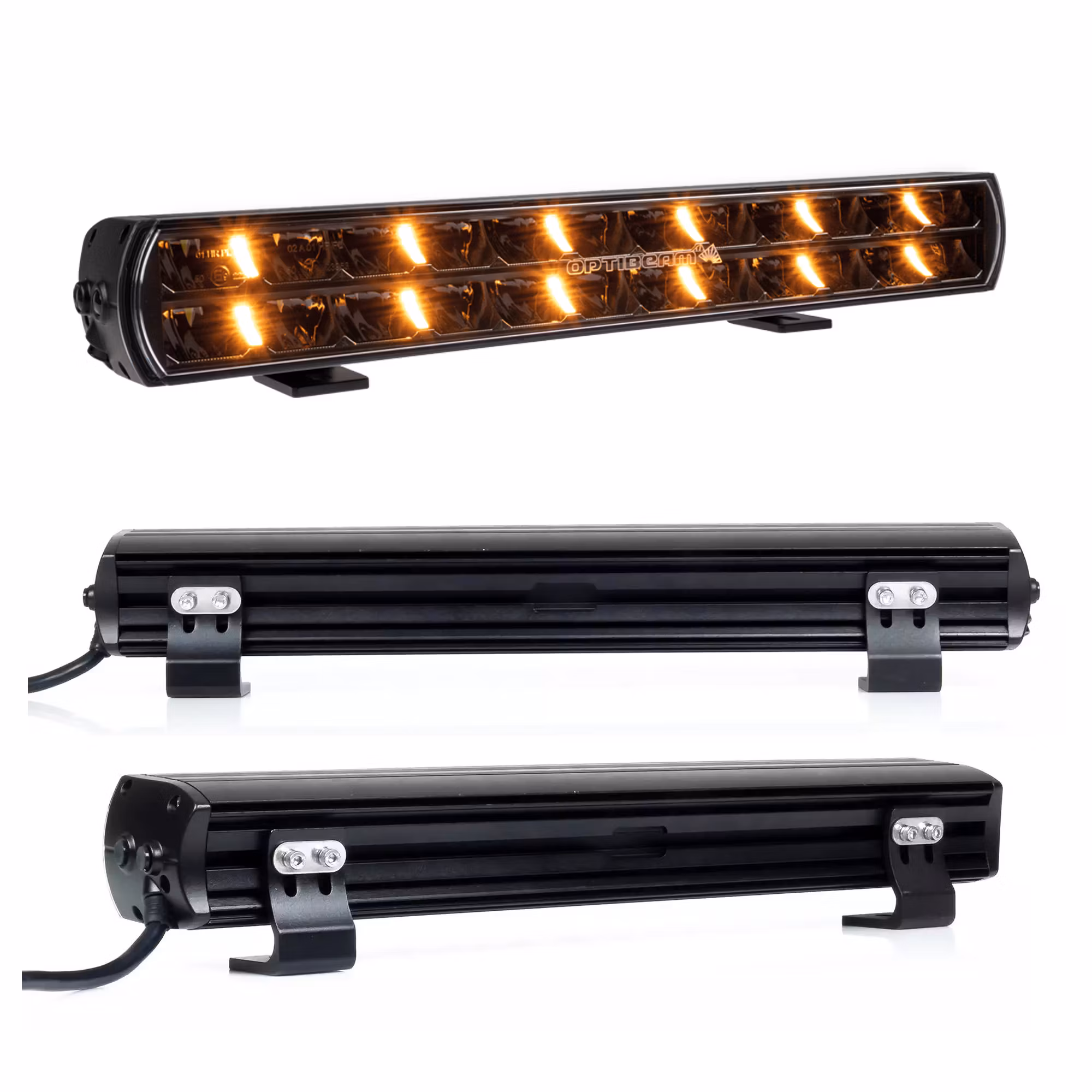

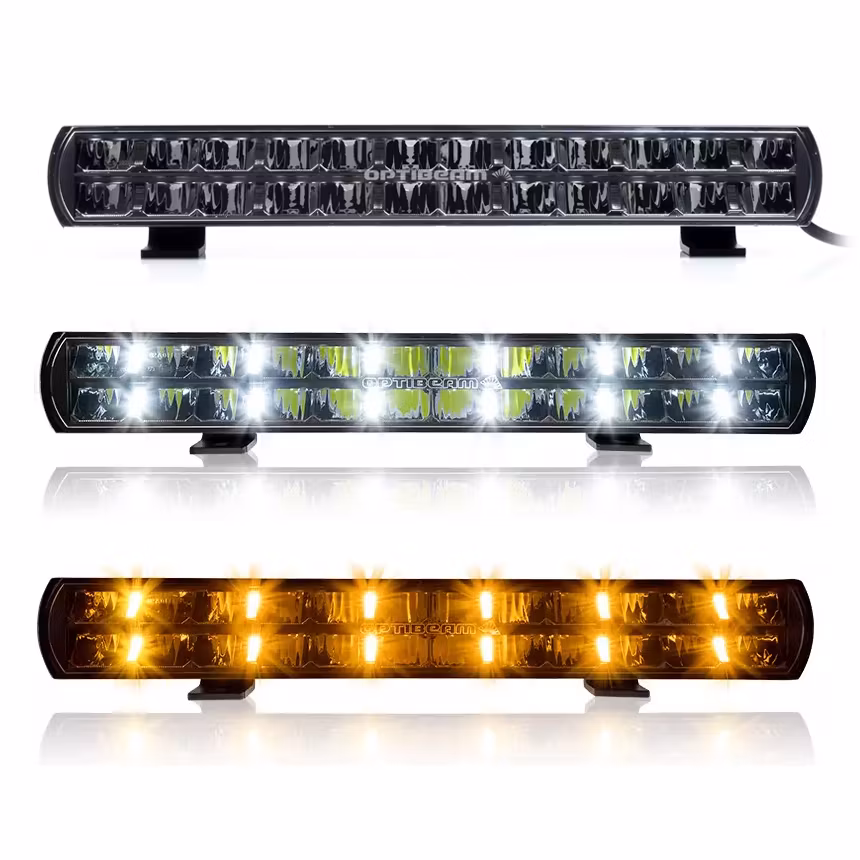

Its integrated position light can be switched between white and amber, giving both functionality and style.
For additional flexibility, an optional flash relay can transform the position light into a warning or strobe function for emergency or signaling use.

The frameless lens prevents snow and dirt buildup – perfect for harsh Nordic conditions.

Available kits

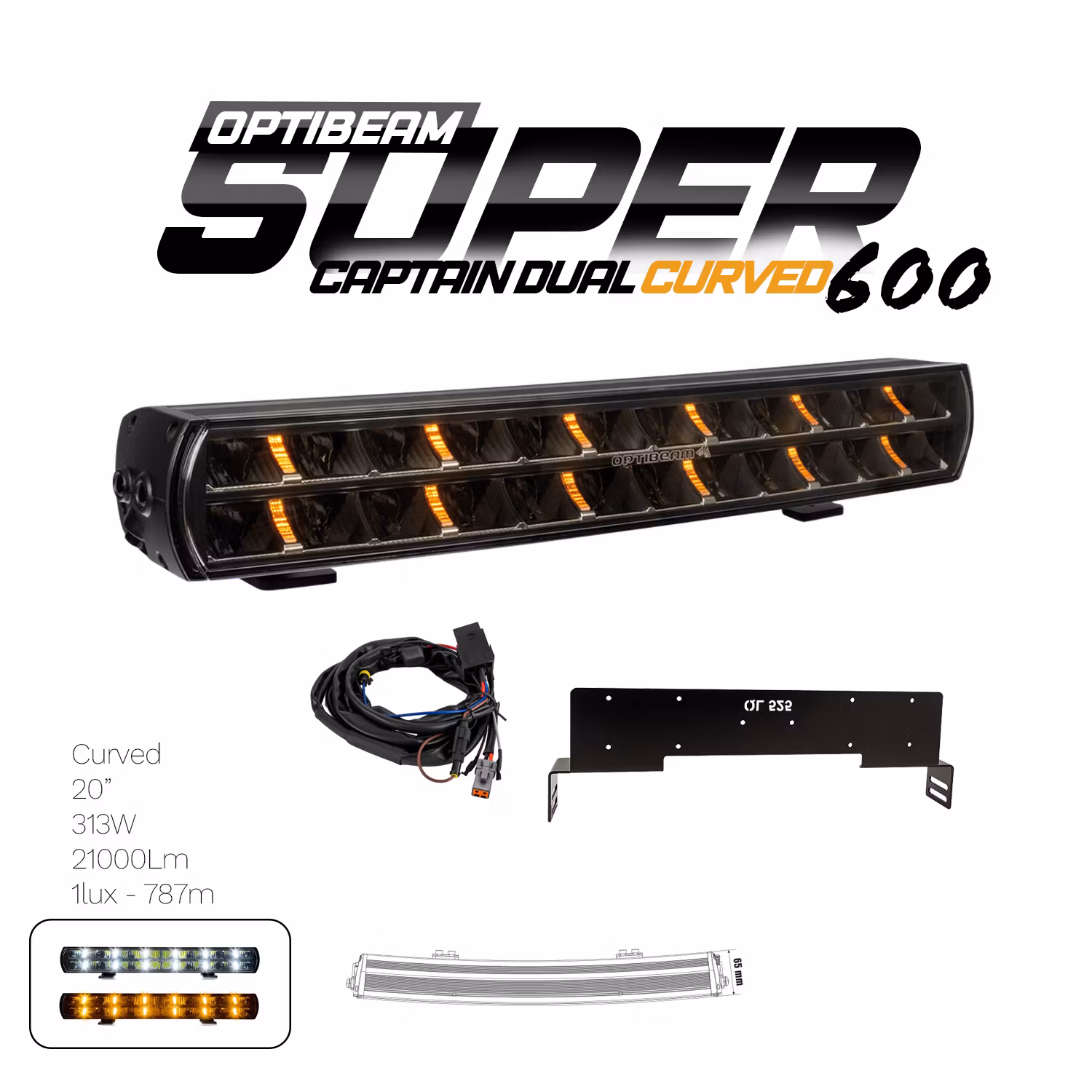

Kit 1 – LED light bar + bracket + wiring harness
Everything you need for a complete installation.

• Optibeam Super Captain Dual 600 Curved
• Mounting brackets
• Complete wiring harness with relay

Kit 2 – LED light bar + bracket + wiring harness + XBB system
A fully integrated plug-and-play solution for modern vehicles such as Volvo, Tesla, pickups, and work vehicles.

• Optibeam Super Captain Dual 600 Curved
• Mounting brackets
• Complete wiring harness with relay
• XBB CANBUS interface (no wire cutting, easy installation)

Technical specifications

• Real light output: 21,000 lm
• Distance: 787 m @ 1 lux
• Color temperature: 5000K
• Operating voltage: 9–36V
• LEDs: 24
• Current draw: 22.77A @ 13.7V
• Cable length: 220 cm
• Connector: DPT

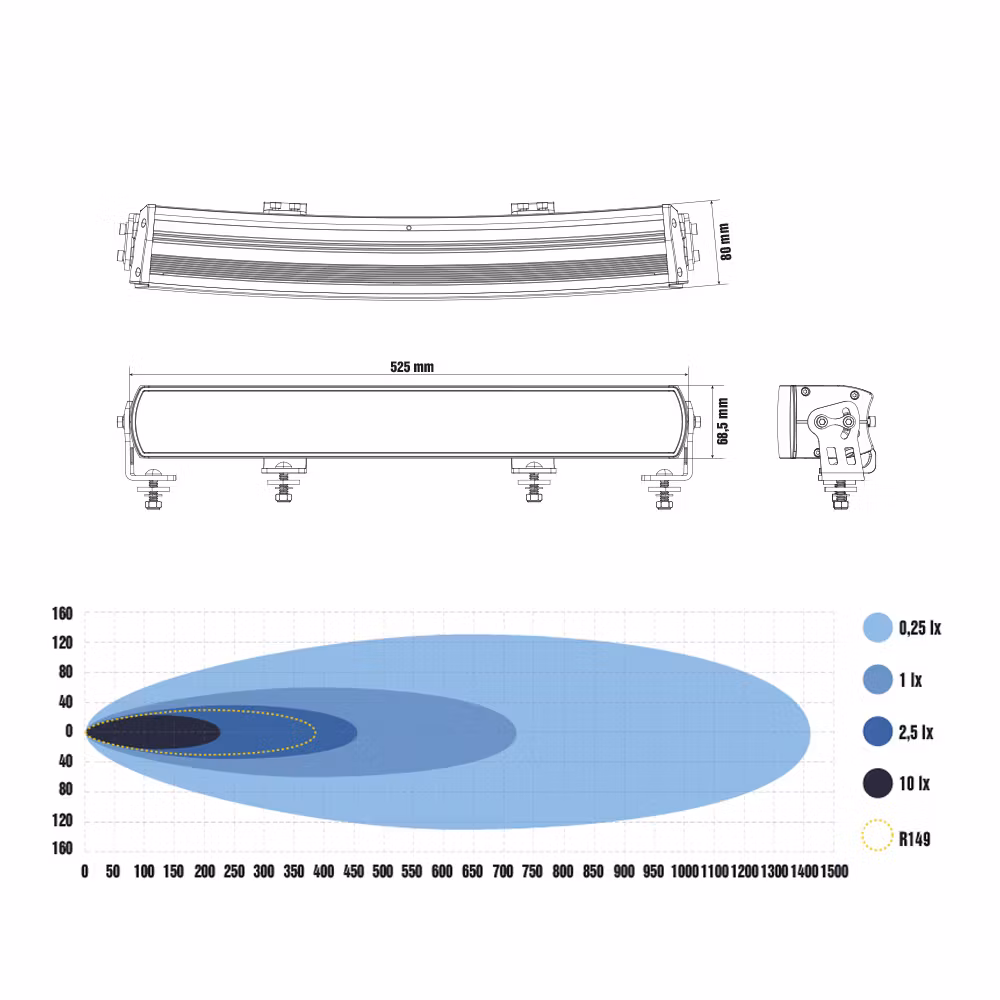

• Dimensions: 525 × 68.5 × 80 mm
• Position light: white / amber
• Certification: E-approved
• Rating: IP68
• Warranty: 3 years

Suitable for

Perfect for Volvo passenger cars and SUVs, including:
XC90, XC60, XC70, XC40, V90, V90CC, V60, V60CC

Also ideal for:

• Pickups and 4×4 vehicles
• Work and service vans
• Heavy trucks: Scania and Volvo Trucks
• Construction, forestry, and off-road vehicles

Summary

The Optibeam Super Captain Dual 600 Curved is a premium LED light bar for those who demand maximum visibility, reliability, and design.
With its curved construction, Double-Up BOOST mode, selectable position lights, and Nordic-grade durability, it delivers top-tier performance no matter the vehicle or weather conditions. Take your lighting to the next level – and dominate the night with the Super Captain Dual 600 Curved.
