OPTIBEAM Super Captain Dual 800 Curved - 30" 370W

Optibeam Super Captain Dual 800 Curved – extreme curved LED light bar with BOOST mode

The Optibeam Super Captain Dual 800 Curved is the latest evolution of the popular Super Captain Dual series, now with a sleek curved design for improved visibility, wider beam spread, and a modern aesthetic. Designed for drivers who demand maximum performance in dark, challenging environments. Ideal for Volvo, Tesla, pickups, work vehicles, and heavy trucks such as Scania and Volvo Trucks.

With a precisely engineered optical system and a powerful LED setup, this curved model delivers 32,000 real measured lumens and an exceptionally balanced 5000K color temperature for optimal comfort and clarity.

Key improvements vs. straight Super Captain Dual 800

• New curved design for enhanced coverage and style
• Higher measured output: 32,000 lm
• Improved long-range throw: 775 m @ 1 lux
• Same eye-friendly 5000K color temperature
• Optimized beam distribution for mixed driving conditions

Double Up-BOOST function

Two lighting modes for maximum flexibility:

Boost on – maximum range

• 775 m @ 1 lux
• Ideal for long-range highway and rural driving

Boost off – wide beam spread

• Perfect for wet, snowy or foggy conditions

Boost activates automatically when the limiter wire is left disconnected or via switch.

Curved design and Nordic durability

The curved housing delivers wider road coverage while maintaining a compact profile. Built for Nordic conditions with a frameless lens that prevents snow, ice and dirt from collecting, ensuring optimal light output year-round.

Selectable white or amber position lights, with optional strobe capability via external relay for emergency or signaling use.

Available kits

Kit 1 – LED light bar
For vehicles where wiring is already installed.

• Optibeam Super Captain Dual 800 Curved

Kit 2 – LED light bar + complete wiring harness
Includes everything needed for installation.

• Optibeam Super Captain Dual 800 Curved
• Relay kit and wiring harness

Kit 3 – Complete PRO kit (LED bar + harness + XBB system)
Recommended for modern vehicles like Volvo, Tesla, pickups and commercial vans.

• Optibeam Super Captain Dual 800 Curved
• Relay kit and wiring harness
• XBB CANBUS interface (no cutting, plug-and-play integration)

Technical specifications

• Measured light output: 32,000 lm
• Distance: 775 m @ 1 lux
• Color temperature: 5000K
• Voltage: 9–36V
• LEDs: 36
• Current draw: 30.22A @ 13.7V
• Cable length: 220 cm
• Cable Plug: DPT

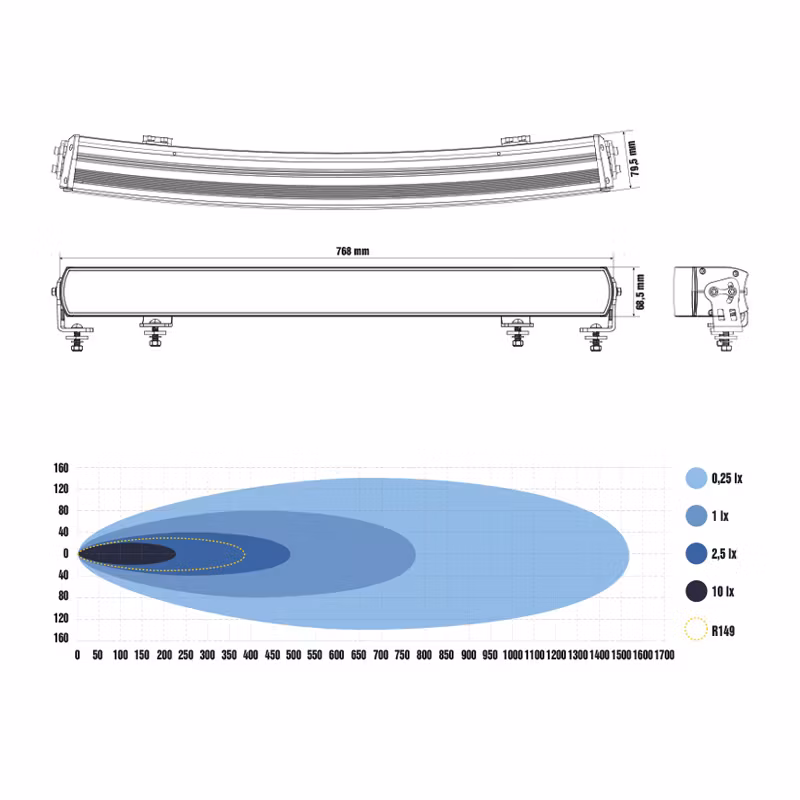

• Dimensions: 768 × 68.5 × 80 mm
• Position lights: white / amber
• Certifications: E-approved
• Rating: IP68
• Warranty: 3 years

Suitable for

• Volvo passenger vehicles (roof mount, grill integration, etc.)
• Tesla Model 3 / Model Y / Cybertruck (CANBUS safe with XBB kit)
• Pickups and 4×4 vehicles
• Work and service vans
• Heavy trucks: Scania and Volvo Trucks
• Construction, forestry and off-road equipment

Summary

The Optibeam Super Captain Dual 800 Curved is a premium curved LED light bar delivering exceptional real-world brightness, a wider and more controlled beam pattern, and advanced BOOST capability. With rugged Nordic engineering, selectable position light colors, and CANBUS-safe integration options, it is the perfect upgrade for drivers and professionals who demand superior visibility, reliability, and design.

Take command of the night with the Super Captain Dual 800 Curved – where performance meets style.
