ASK Design Roof Rack LED Bar Kit – Epix30+ Prime 30” 270W Powerboost

Complete roof rack lighting kit featuring ASK Design's own developed and manufactured LED bar mounts.

Upgrade your vehicle with powerful auxiliary lighting and a distinctive, integrated design. This kit combines the Ledson Epix30+ Prime 30” Powerboost LED bar, ASK Design's custom-developed roof rack mounts, Ledson Connect wiring harness and XBB Dongle & PowerUnit for convenient high-beam control.

The Epix30+ Prime stands out with its sporty design, powerful Driving Beam optics and unique dynamic position light integrated directly into the reflectors.

Simply select your roof rack type to get a lighting package tailored to your setup.

Powerful Driving Beam – Up to 672 Metres

The Epix30+ Prime combines 18 high-performance LEDs with advanced Driving Beam optics, producing a wide and elongated beam pattern that complements the vehicle's existing headlights.

Performance highlights:

• 672 metres at 1 lux in Powerboost mode
• 458 metres at 1 lux in E-approved mode
• 16,300 actual lumens in Powerboost mode
• 6,240 actual lumens in E-approved mode
• 270 W and 18 high-performance LEDs
• 5000K neutral white light

Dynamic Position Light – White or Amber

One of the defining features of the Epix30+ Prime is its integrated dynamic position light.

When activated, the light sweeps across the LED bar before reaching full brightness, creating a distinctive and modern appearance.

Choose between white and amber position lighting to complement your vehicle's styling.

The position light has a separate electrical connection and requires appropriate connection to the vehicle.

Powerboost – Additional Performance When Needed

The Epix30+ Prime offers an E-approved lighting mode and a separate Powerboost mode for off-road use.

Powerboost increases the light output to 16,300 actual lumens and extends the beam distance to 672 metres at 1 lux.

Switching between the modes is performed mechanically using an adjustment screw on the LED bar, following Ledson's instructions.

Custom-Developed Roof Rack Mounts by ASK Design

The included mounting brackets are developed and manufactured by ASK Design for a clean, secure and integrated installation.

Each bracket option is designed to match the profile of the corresponding roof rack, providing a discreet alternative to universal mounting solutions.

Choose your roof rack type:

• Thule WingBar Edge & Evo
• Volvo OEM WingBar & older Thule WingBars
• Turtle Air
• Mont Blanc Xplore

The brackets feature an integrated cable recess for discreet wiring and a stable, vibration-resistant design.

Ledson Connect Wiring with XBB Integration

The package includes the Ledson Connect wiring harness, XBB Dongle & PowerUnit and Ledson Connect XBB control cable.

On compatible vehicles, the XBB system provides high-beam activation while the Ledson Connect relay harness supplies power to the LED bar.

The XBB control cable connects the systems, allowing the LED bar to operate without routing its full electrical load through the XBB PowerUnit.

The dynamic position light uses a separate 2-pin DT connection. Additional wiring may be required for this function.

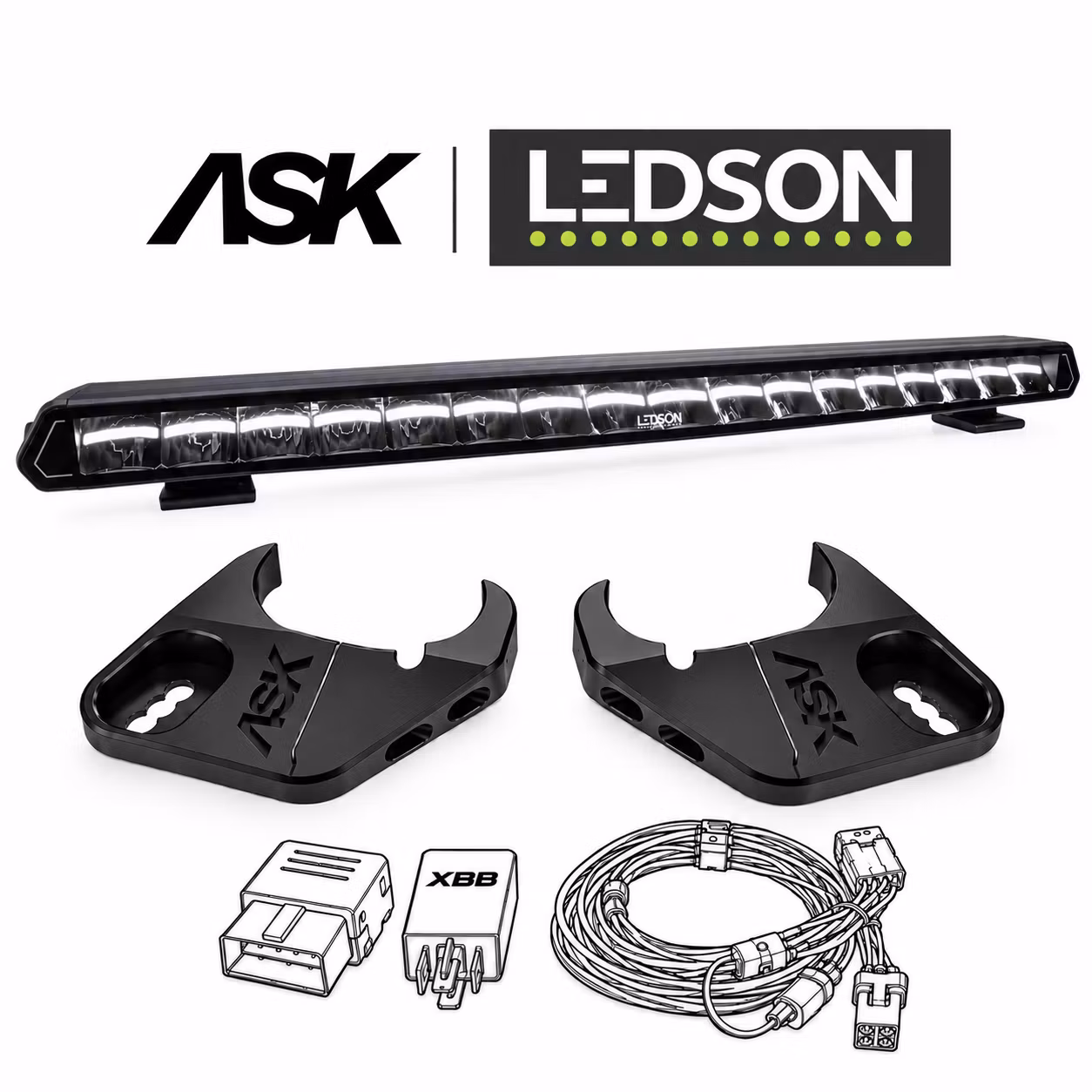

What's Included?

• 1 × Ledson Epix30+ Prime 30” Powerboost LED bar
• 1 × ASK Design roof rack mounting kit (selected type)
• 1 × Ledson Connect wiring harness, 2-pin DTP
• 1 × XBB Dongle & PowerUnit kit
• 1 × Ledson Connect XBB control cable
• Mounting screws, washers and LED bar mounting hardware

Roof rack bars are not included. Vehicle compatibility with XBB must be verified before ordering.

Technical Specifications

Designed for Performance and Style

Combining Ledson's distinctive lighting technology with ASK Design's purpose-built roof rack mounts, the Epix30+ Prime kit delivers powerful auxiliary lighting in a clean, integrated installation.

Choose your roof rack type and upgrade your vehicle with premium roof-mounted lighting.
