Super Slim Reverse Light Kit- Ledson Nano 2x30W

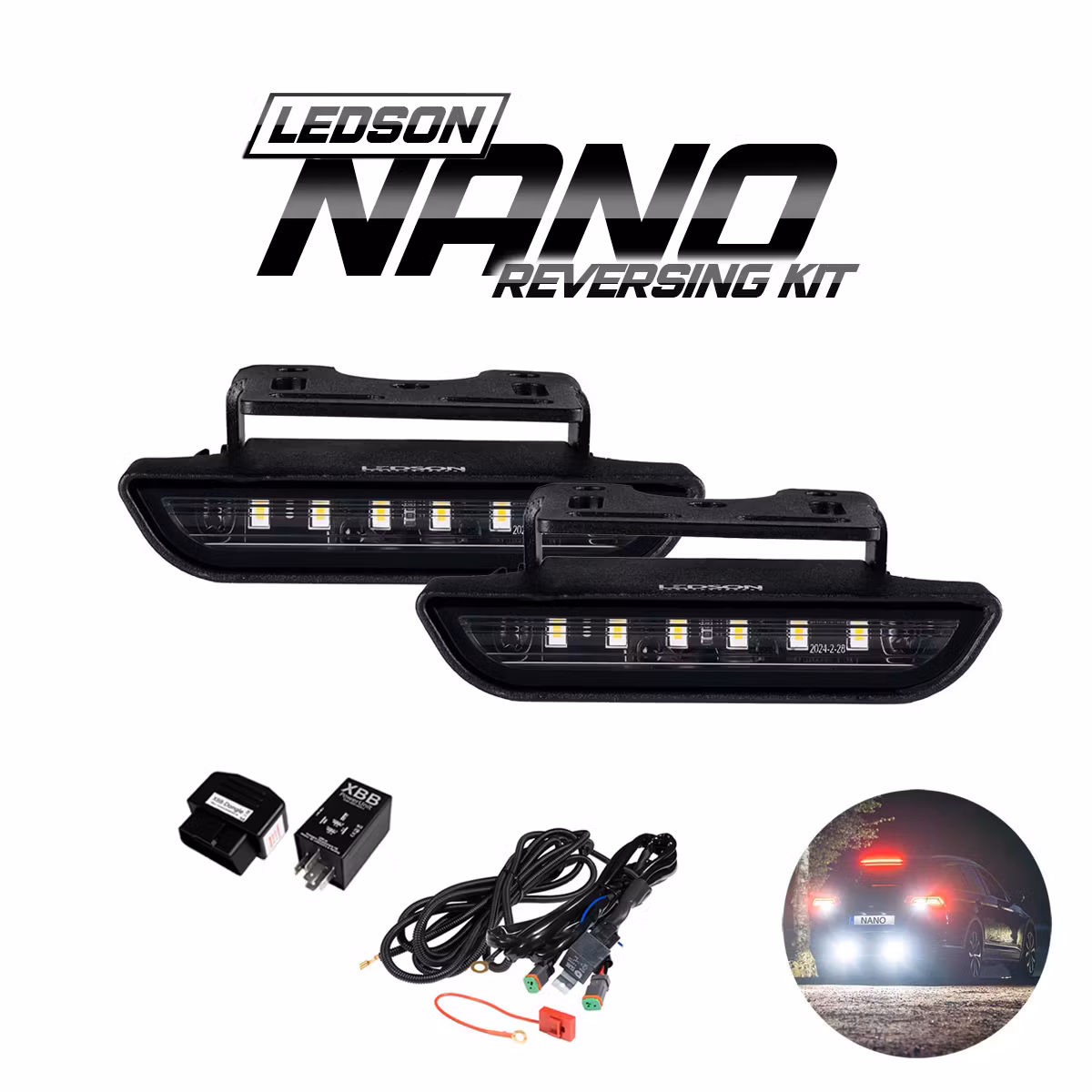

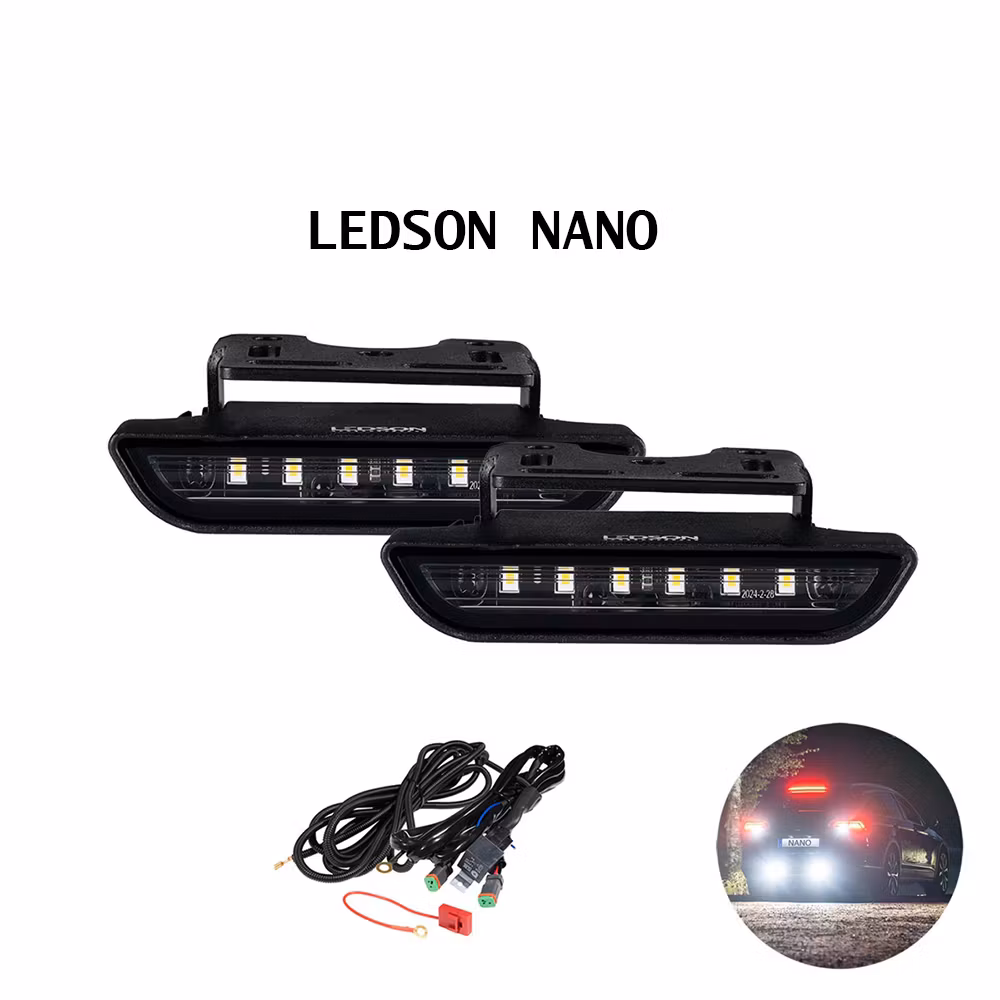

Ledson Nano Reverse Light Kit – Dual Lights with Harness for Enhanced Reversing Visibility

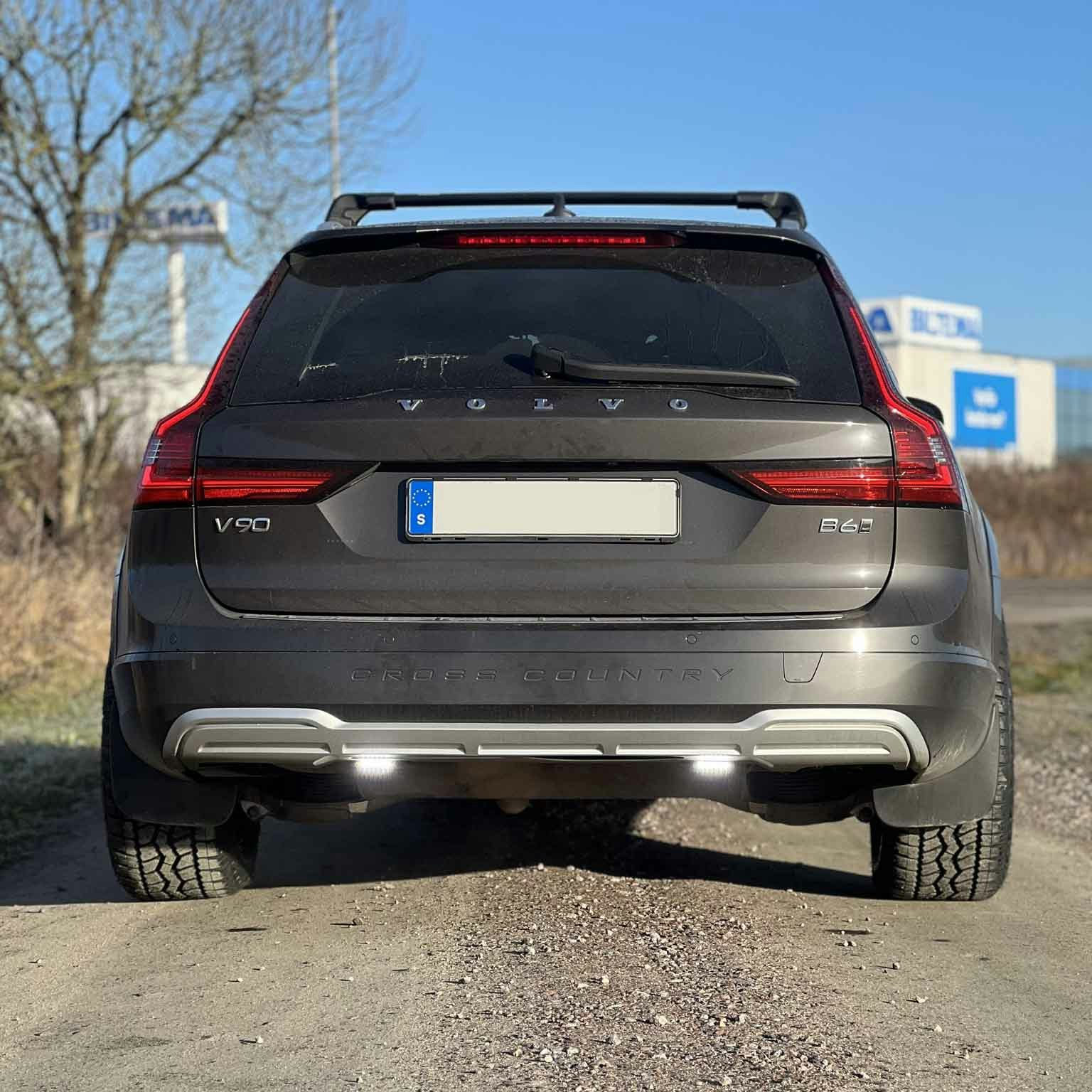

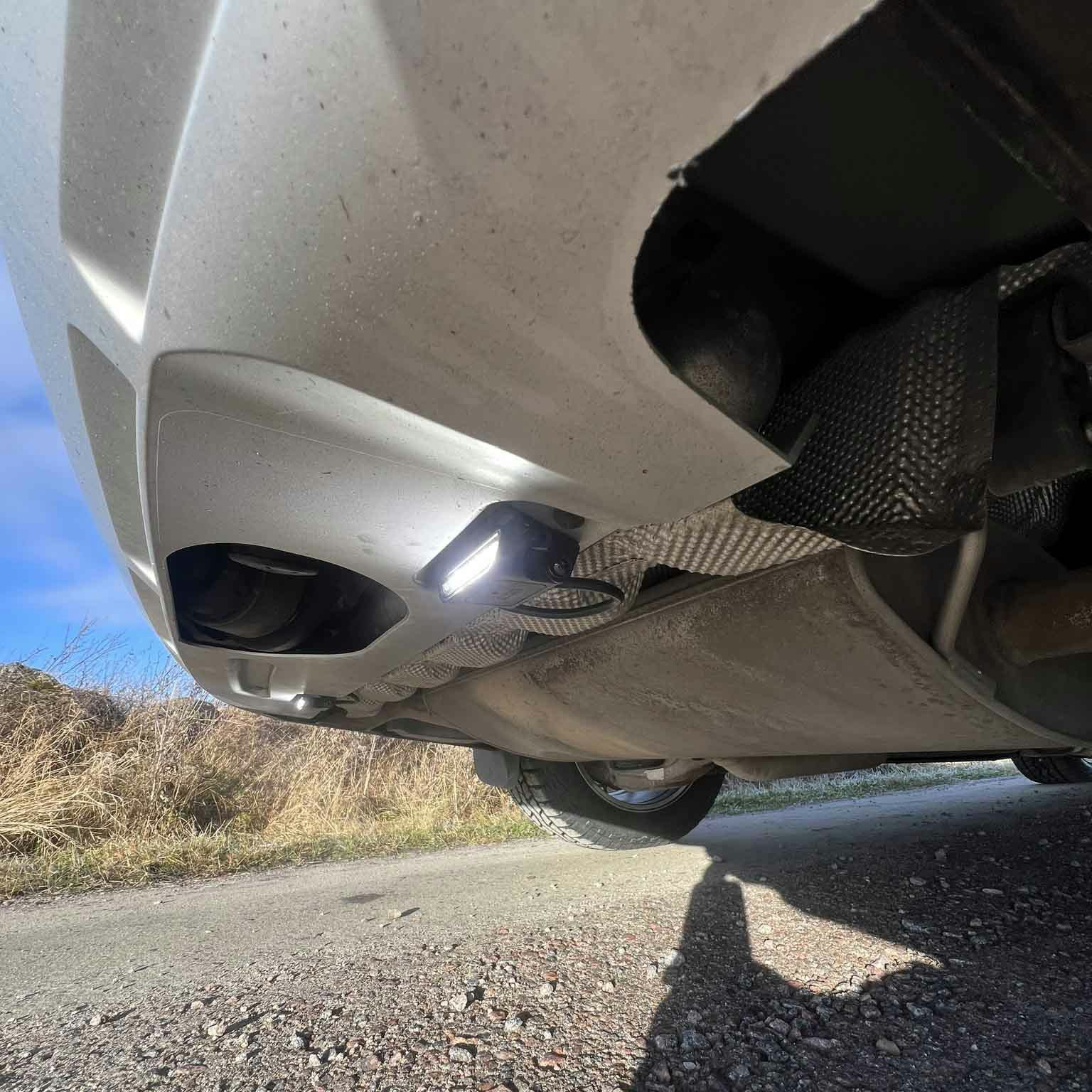

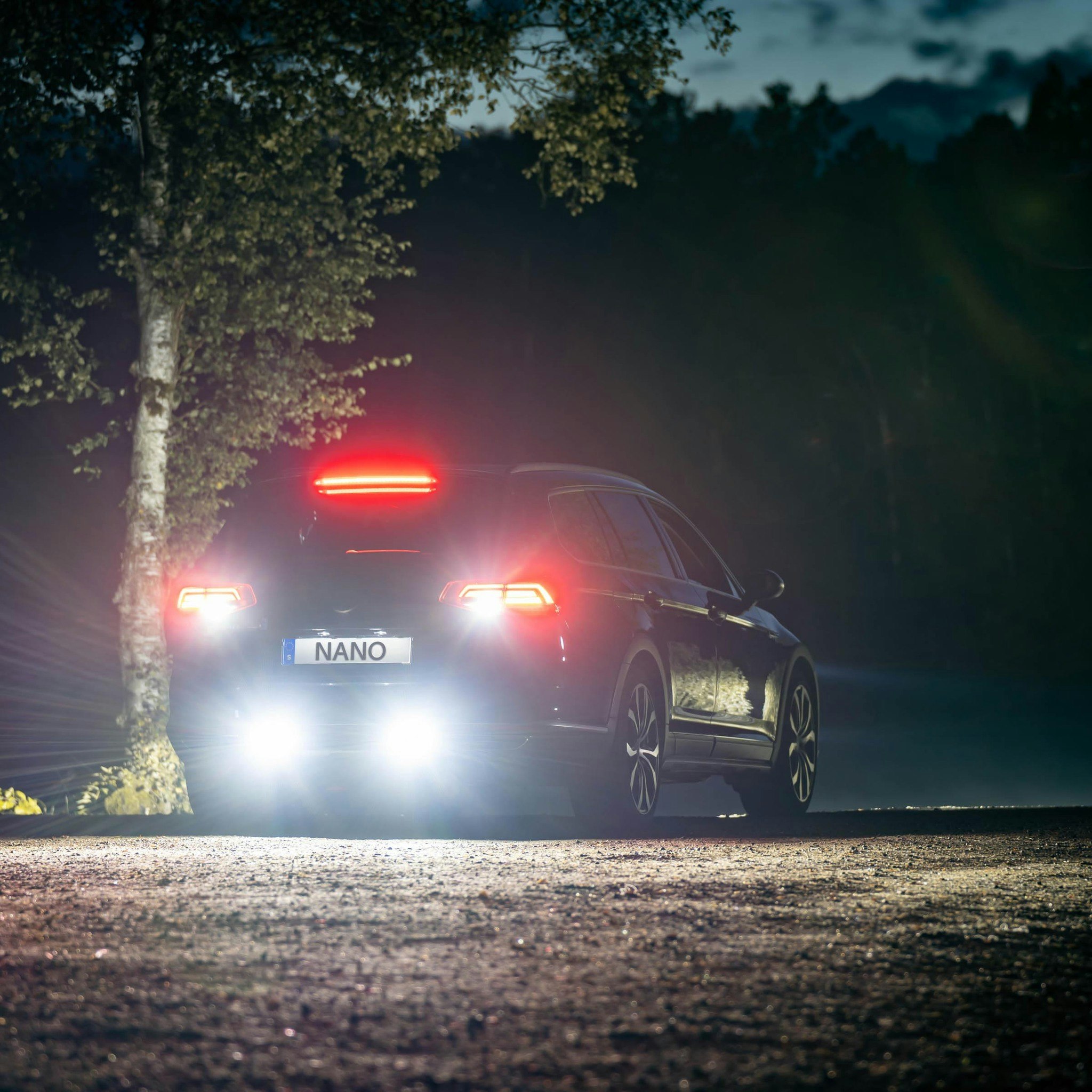

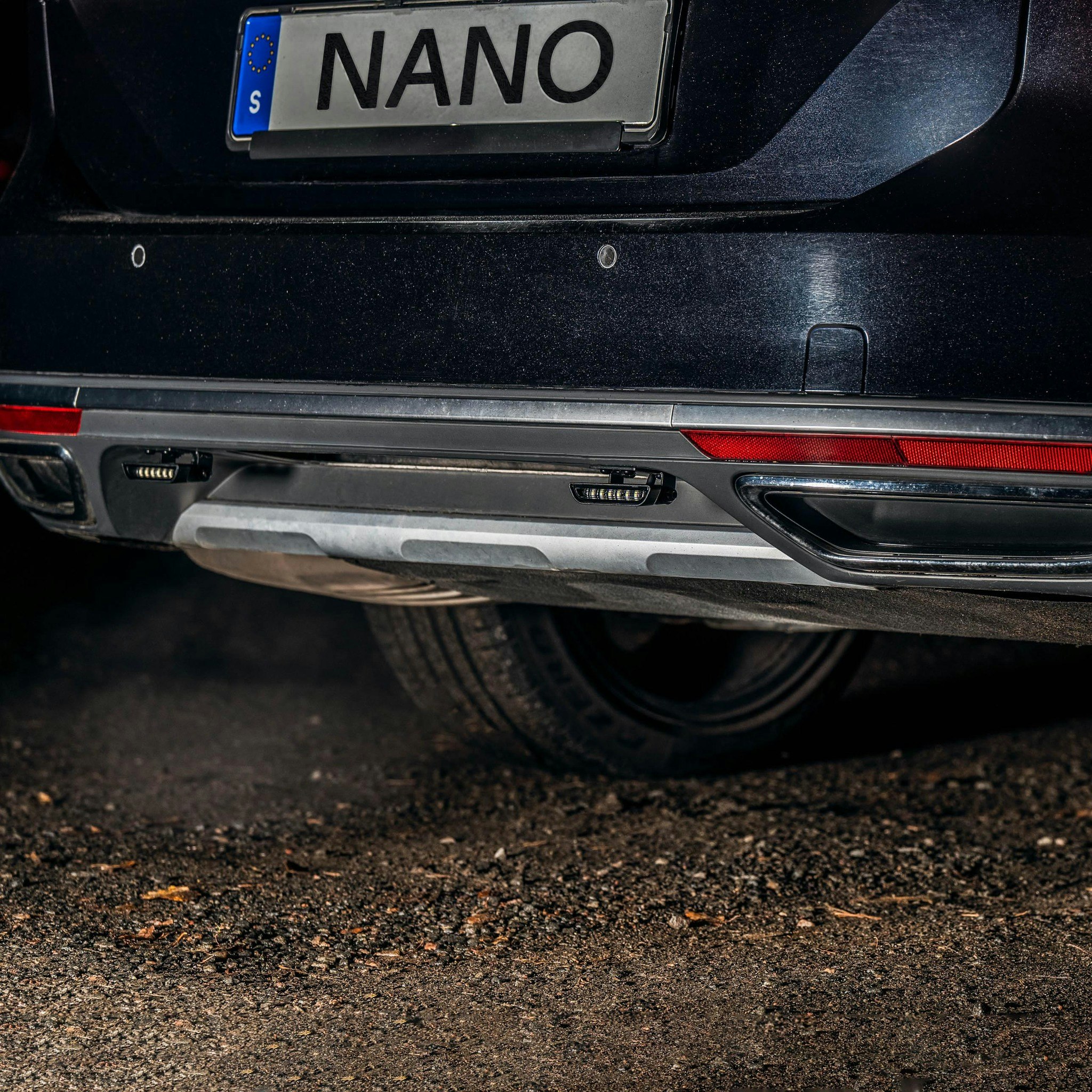

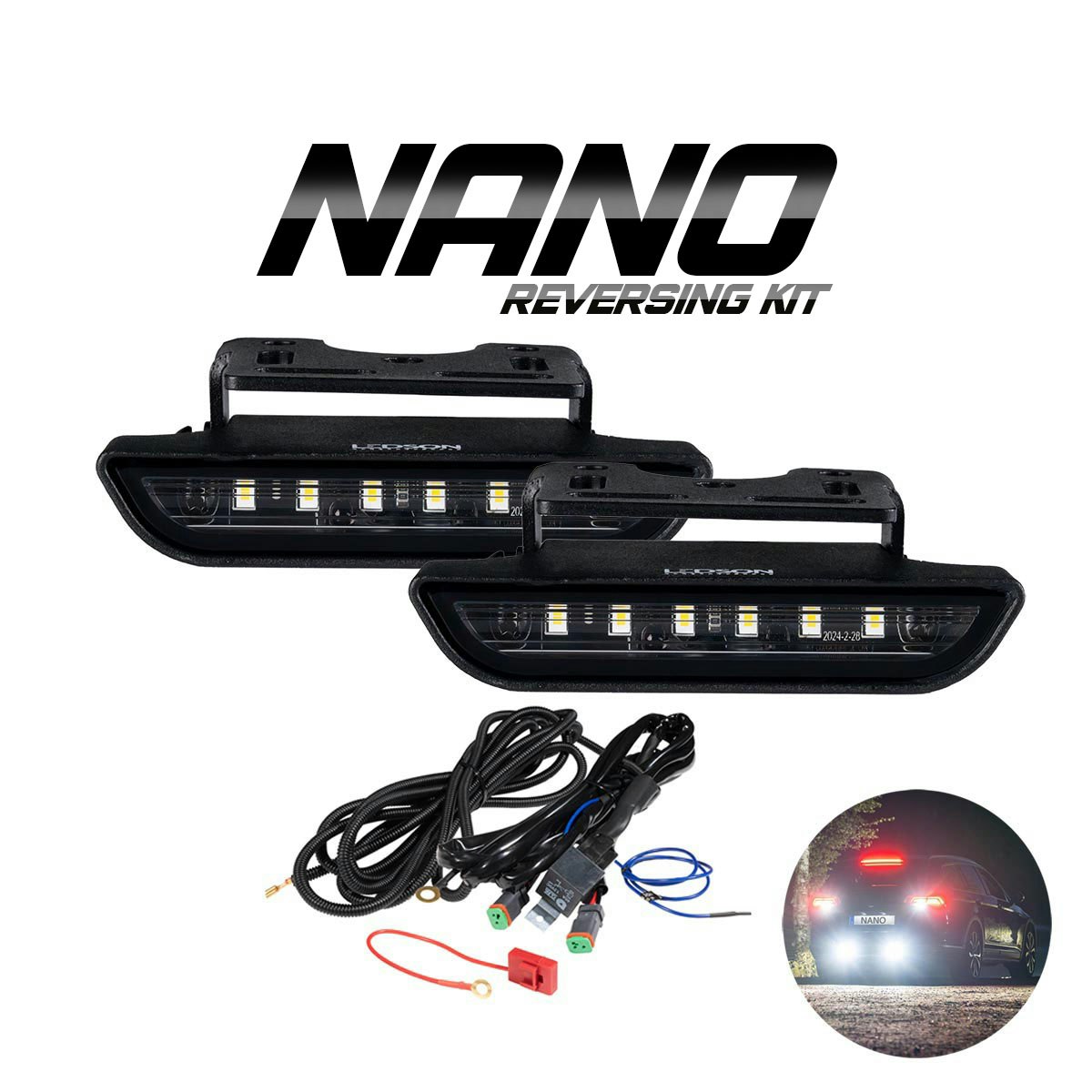

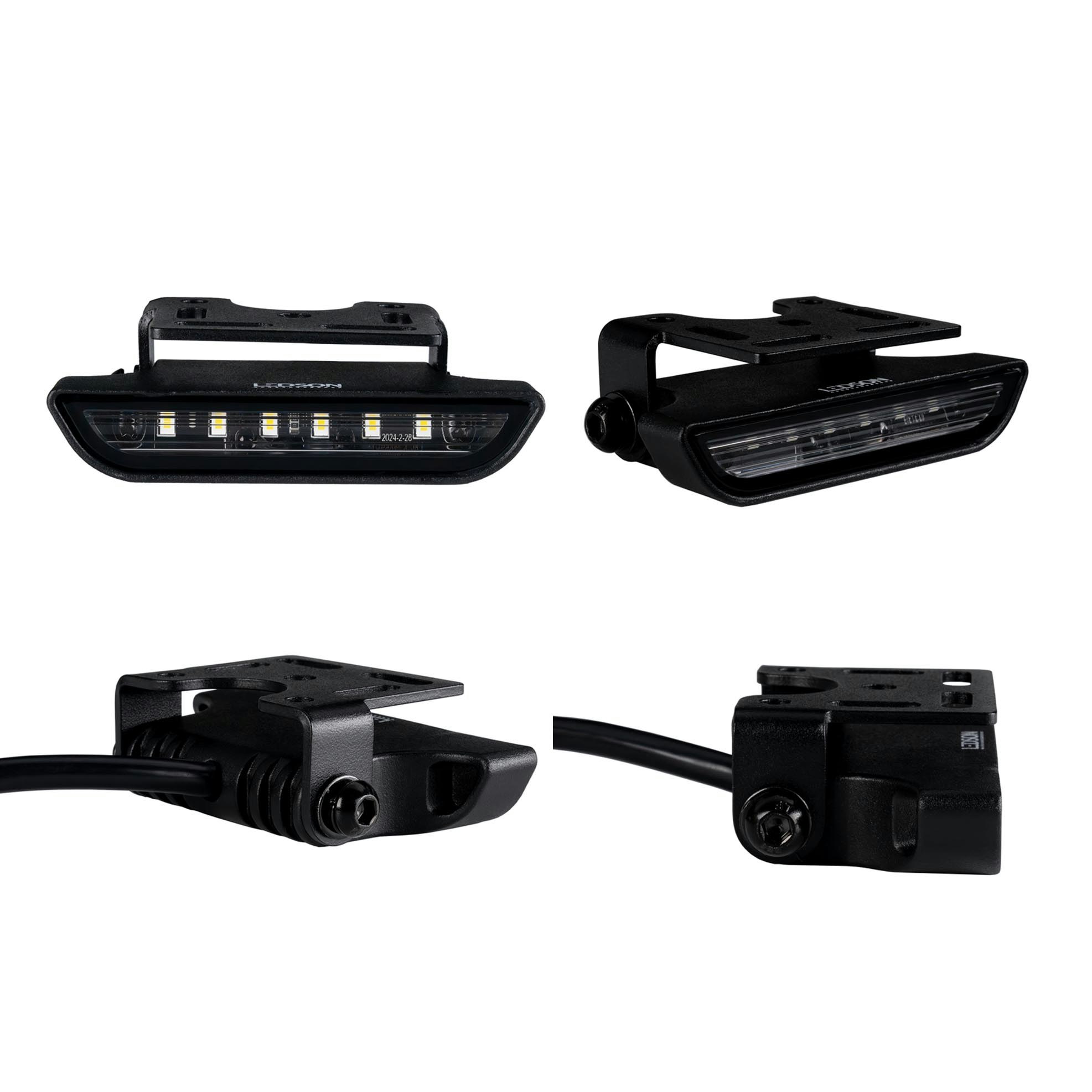

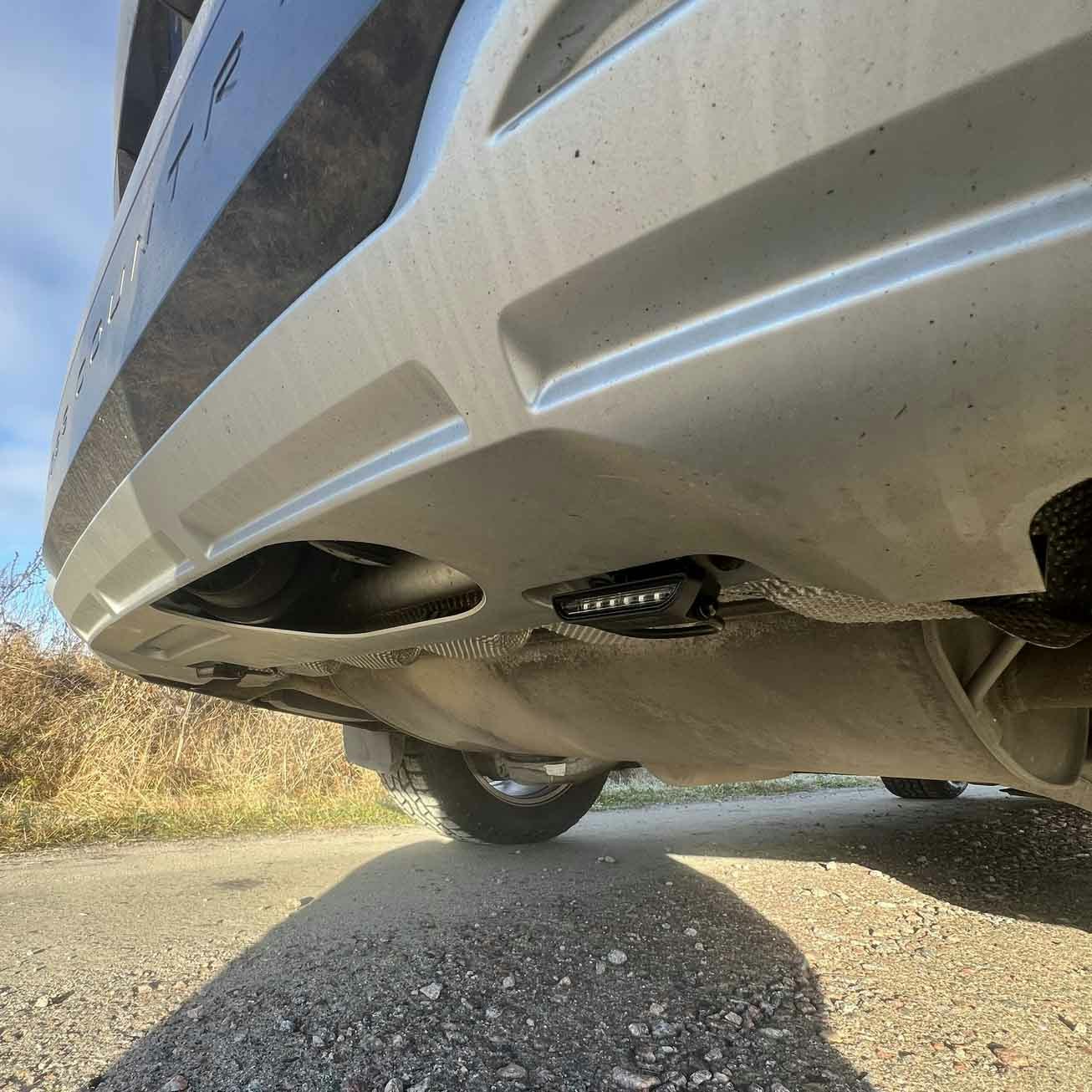

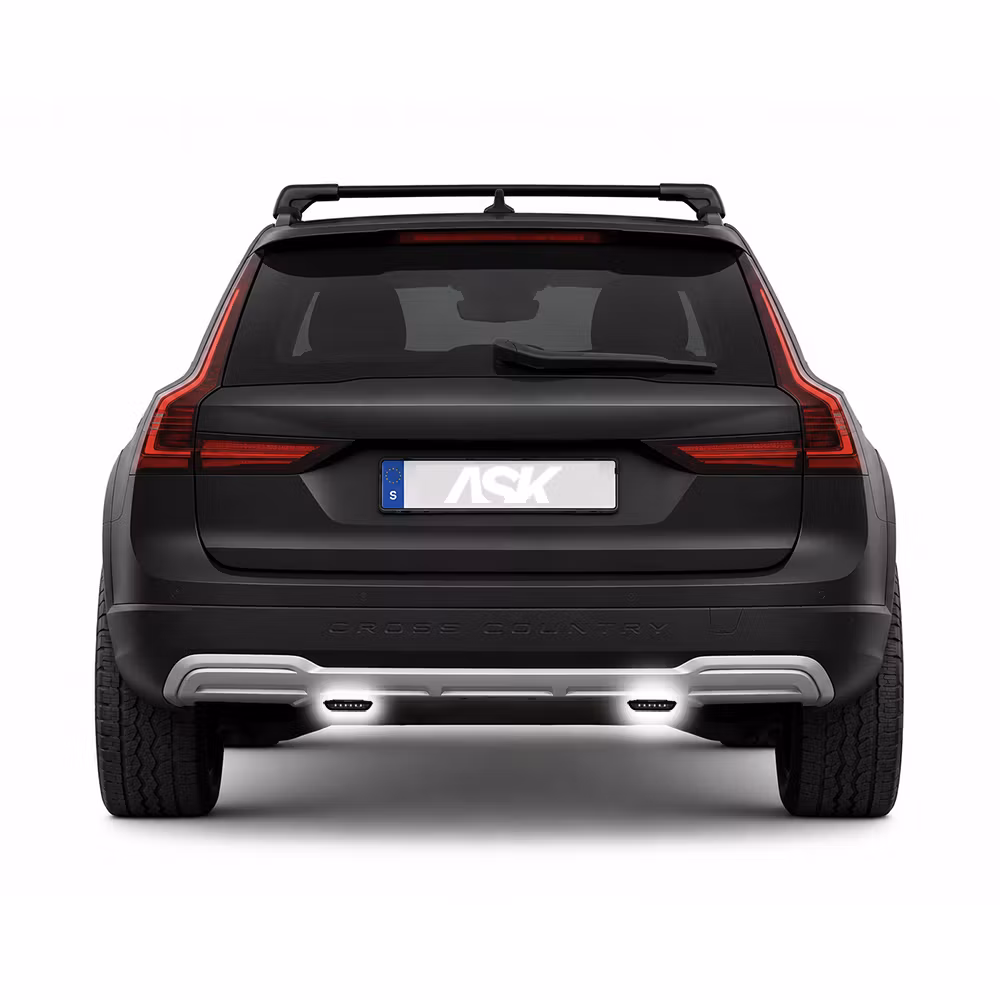

Enhance your vehicle’s reversing capabilities with the Ledson Nano Reverse Light Kit, which includes two ultra-compact Nano lights and a premium relay harness designed for seamless installation. Each Nano light, only 17 mm in height, remains discreet when not in use but delivers powerful, 140° wide-beam illumination for superior visibility while reversing.

The included relay harness simplifies installation with two DT connectors and a 3.9-meter power cable, which easily extends from the reverse lights to the battery in most vehicles. It also includes an input for connection to the existing reverse light circuit, ensuring the lights automatically activate when needed. For even more convenience, you can swap the relay for an XBB Dongle (sold separately) for simplified setup and control.

Key Advantages

• Dual Nano Lights for optimal, wide-angle reverse lighting
• E-marked, R23-approved (approved as reversing light)
• IP68-rated for water and dust resistance
• Harness with relay and dual DT connectors for straightforward installation
• XBB Dongle compatibility for advanced connection options

Technical Specifications

• Lumens: 2800 (1750 actual lumens)
• Beam Angle: 140° wide beam
• Color Temperature: 5000K
• Power Consumption: 30W per light (6 x 5W LEDs)
• Voltage: 9-36V
• Waterproof Rating: IP68

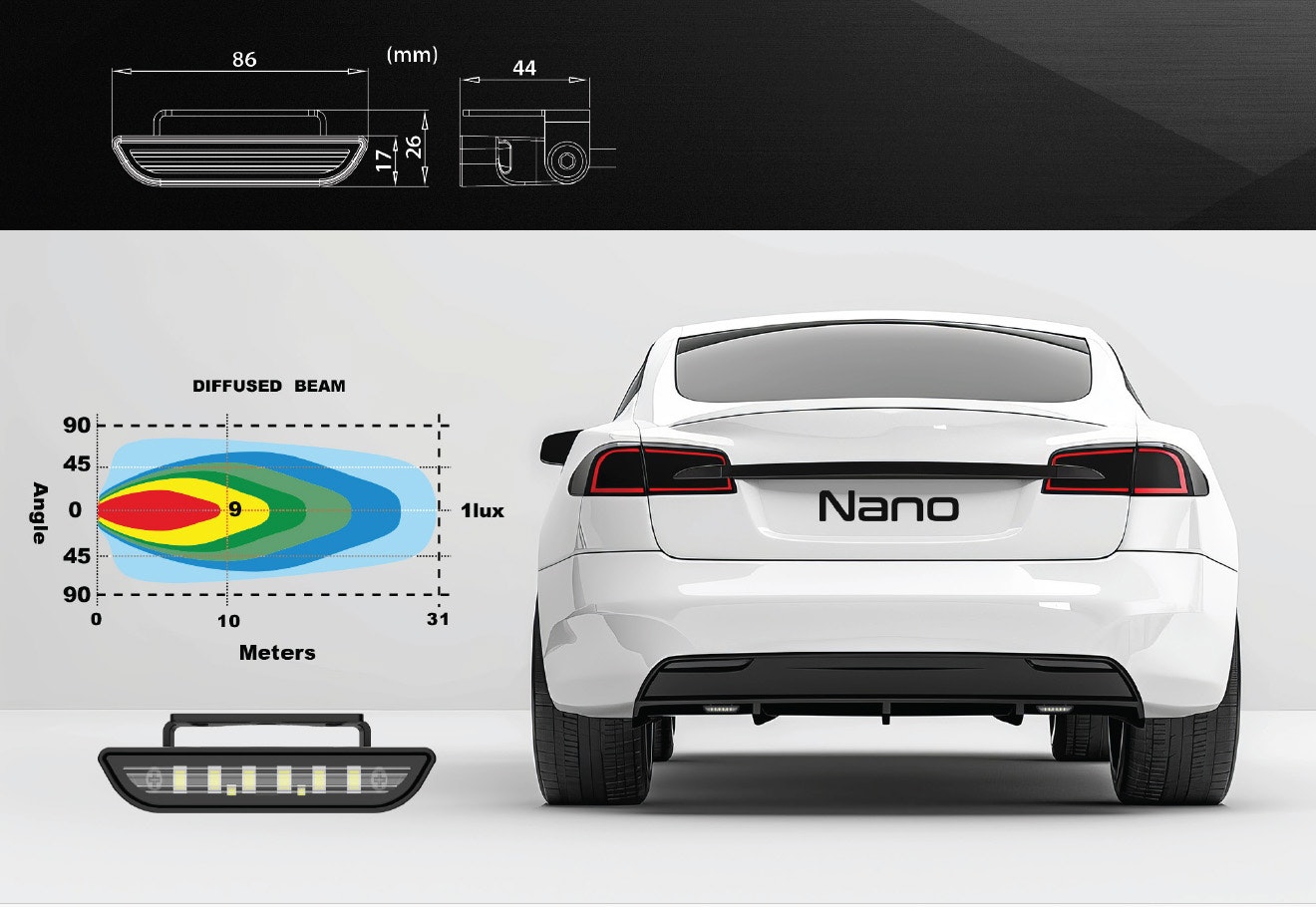

• Dimensions: Width: 86 mm, Height: 17 mm (26 mm with mount), Depth: 44 mm
• DT-connector: 2PIN
• Cable Lengths:
  • Power Cable (Red): 3.9 m
  • Ground Cable (Black): 21 cm
  • DT Connector 1: 90 cm
  • DT Connector 2: 170 cm
  • Blue Trigger Wire: 88 cm (connects to existing reverse light)
• Compatibility: Designed for 12V vehicles, such as passenger cars
• 3 Year guarantee

[Installation instructions available here (PDF)](Link to PDF).
