Ledson Epix5+ Work + Strobe Light

LEDSON EPIX5+ Work Strobe – Work Lighting for All Applications

Upgrade your work environment with the LEDSON EPIX5+ Work Strobe, a high-quality work light that offers unmatched performance and versatility for modern vehicles. The EPIX5+ Work Strobe is the perfect solution for pickups, off-road vehicles, SUVs, as well as both light and heavy trucks and work vehicles.

Features and Benefits:

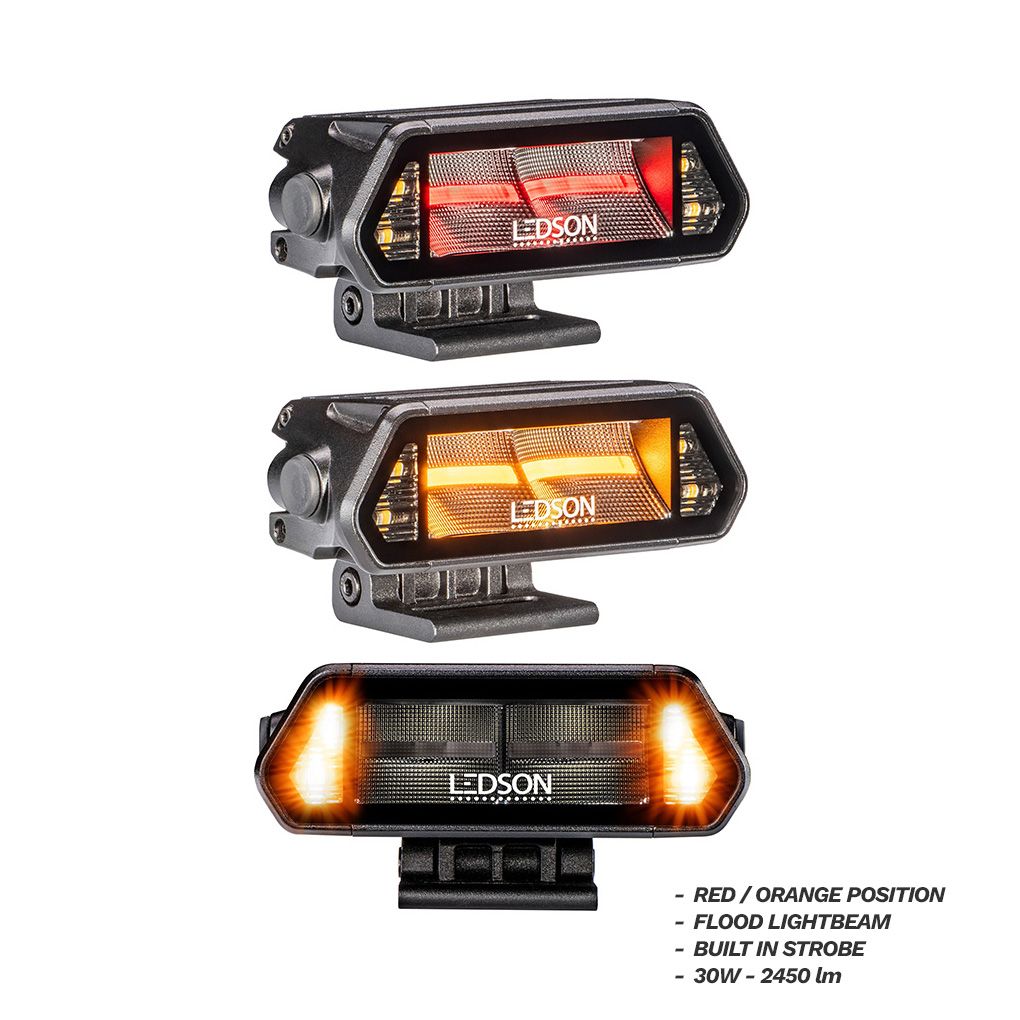

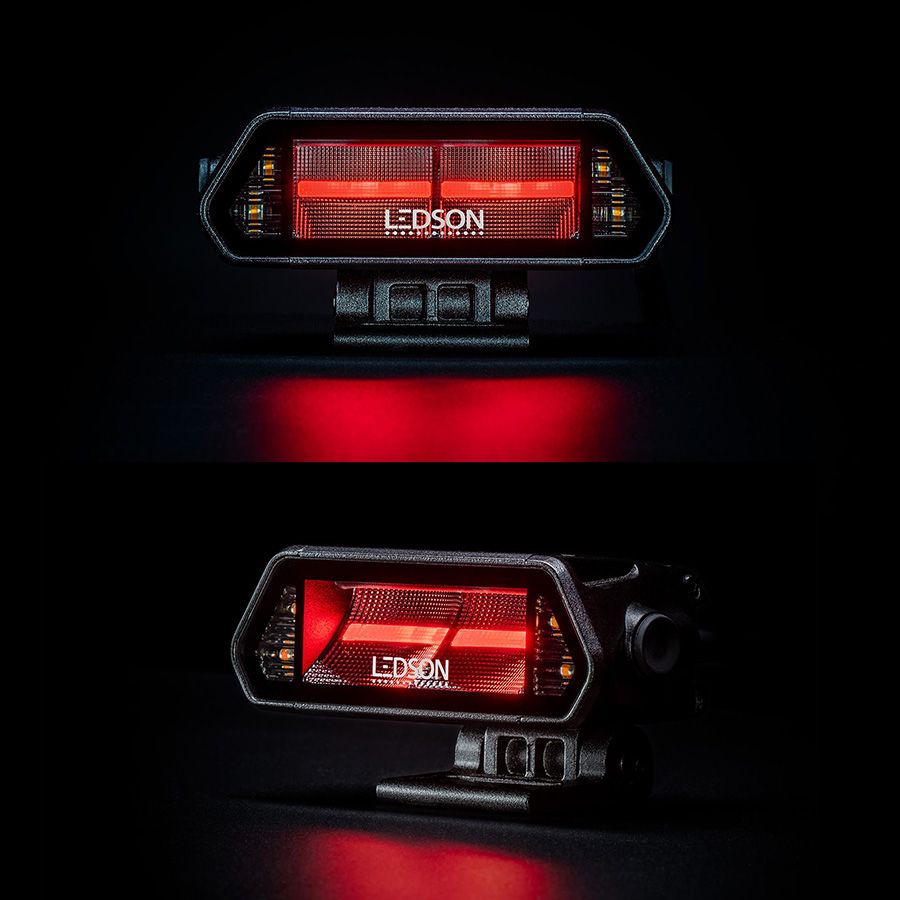

• Selectable Position Light: Choose between red or yellow/orange position light, which is fully integrated into the reflector and approved according to ECE R23 and R148 for rear lights and reverse lights.
• Strobe Light: The EPIX5+ Work Strobe is equipped with 10 different strobe light patterns, including an ECE R65-approved pattern. You can synchronize or desynchronize the strobe lights to create optimal visibility for your work vehicle.

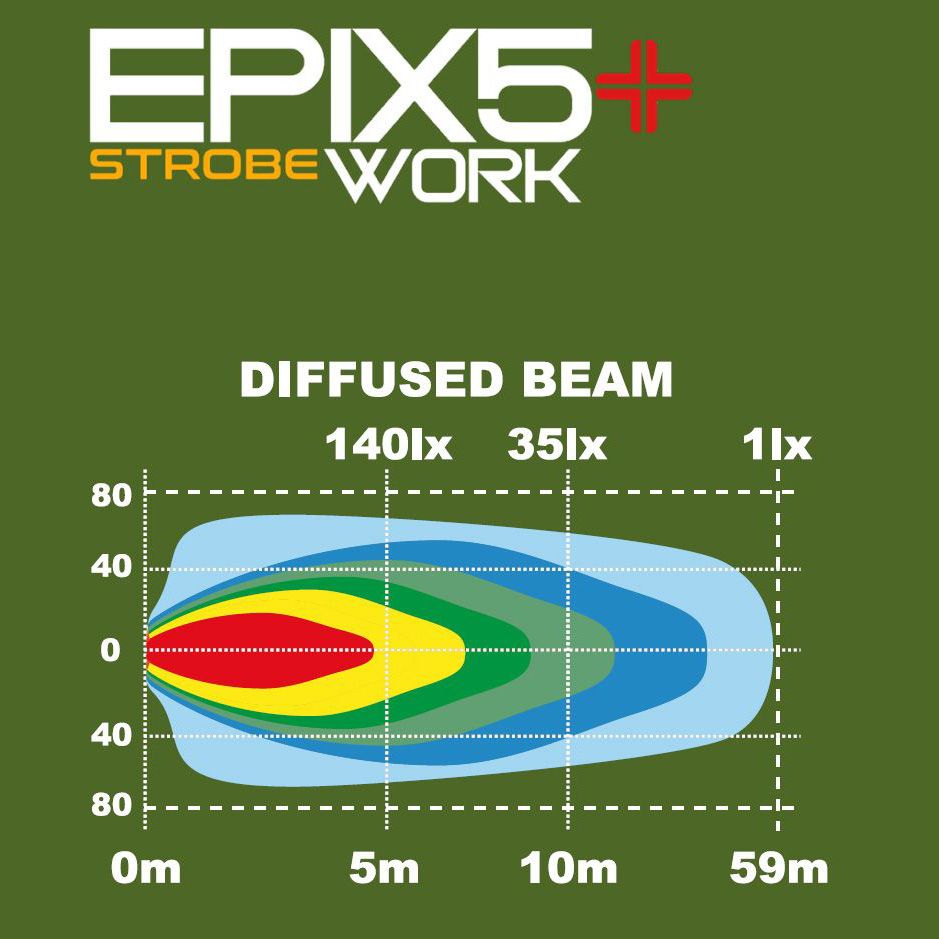

• Wide Beam: With a 120° light beam, the ramp provides effective work lighting with a reach of 59 meters at 1 lux. This makes it ideal for illuminating large areas during work.

Technical Specifications:

• Range: 59 meters at 1 lux
• Light Output: 1700 lumens (actual), 2450 lumens (theoretical)
• Color Temperature: 5000K (Neutral White)
• Power: 30 W (2 x 15 W LED)
• Voltage: 9-36V
• Certifications: E-marked ECE R148 (R1, SM1), R23, R65, and R10 (EMC-classified)
• Light Pattern: 120° diffuse light pattern (wide beam)
• IP69K: Waterproof and dustproof
• Material: Aluminum housing and polycarbonate lens
• Mounting Options: Flexible mounting details for both upright and hanging installation
• DT Connector: 6-pin DT connector included (optional cable kit available for easy connection and expansion)

Perfect For:

• Pickups such as Ford Ranger and Toyota Hilux
• Off-road vehicles and SUVs such as Toyota Land Cruiser and Jeep Wrangler
• Light and heavy trucks like Volvo and Scania
• Work vehicles for construction and development

Accessories and Features:

• E-screw for Eco Mode: Lower energy consumption by installing our E-screw to set the ramp in eco mode, reducing brightness and energy consumption.
• Ledson Connect: Makes it easy to connect multiple ramps and additional lights for future expansion of your lighting system.
• Mounting: Bolts and screws for quick installation, including mounting details for both side and rear mounting.

Dimensions (excluding mounts):

• Width: 128 mm
• Height: 43 mm
• Depth: 61 mm

Strobe Light Patterns:

• Synchronized: Single flash (2.2 Hz), Triple flash (1.1 Hz), Quad flash (1.25 Hz), Combination (one long and five short) (0.83 Hz), Flash series (10 Hz)
• Asynchronized: Allows asynchronous patterns when using multiple ramps for better visibility and flexibility.

Enhance safety and efficiency in your work tasks with the EPIX5+ Work Strobe. The perfect work lighting for tough conditions and modern vehicles.
