The OPTIBEAM Pure 1025 is a powerful 40-inch LED light bar combining an ultra-slim design with outstanding lighting performance. Measuring just 42 mm in height, it offers an elegant, streamlined appearance while delivering an impressive 28,430 measured lumens and a range of 727 metres at 1 lux.
Designed for drivers who demand excellent visibility without compromising on aesthetics, the Pure 1025 provides a wide, powerful beam pattern ideal for illuminating dark roads and surrounding areas.
Choose between the LED light bar on its own, with a wiring harness, or as a complete lighting package with XBB wireless high beam control.
Equipped with 39 high-performance LEDs, OPTIBEAM Pure 1025 delivers an impressive 28,430 measured lumens.
With a range of 727 metres at 1 lux, the light bar provides excellent long-distance visibility while maintaining a wide beam pattern that illuminates both the road ahead and surrounding areas.
The 5000K colour temperature produces a natural, neutral white light for clear visibility and comfortable driving in dark conditions.
With a height of only 42 mm, OPTIBEAM Pure 1025 offers a sleek, low-profile design that integrates neatly with the vehicle's appearance.

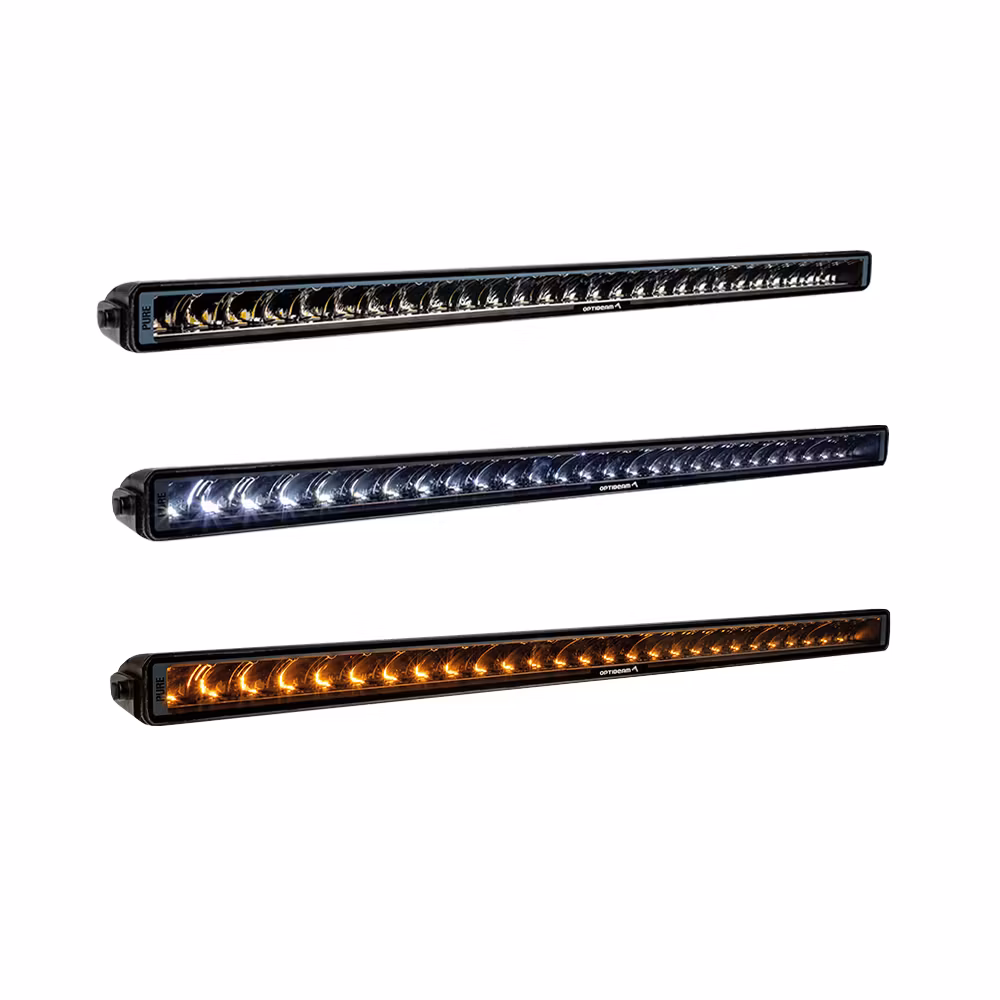

The integrated dual-colour position light allows you to choose between white and amber illumination, adding a distinctive visual element to the installation.
Its slim construction makes it particularly suitable for installations where a discreet appearance and powerful lighting performance are equally important.
OPTIBEAM Pure 1025 is available in three configurations, allowing you to select the installation components that best suit your vehicle.
Option 1 – LED Light Bar Only
Includes the OPTIBEAM Pure 1025 LED light bar. Ideal if you already have the necessary wiring and control equipment or prefer to arrange your own installation.

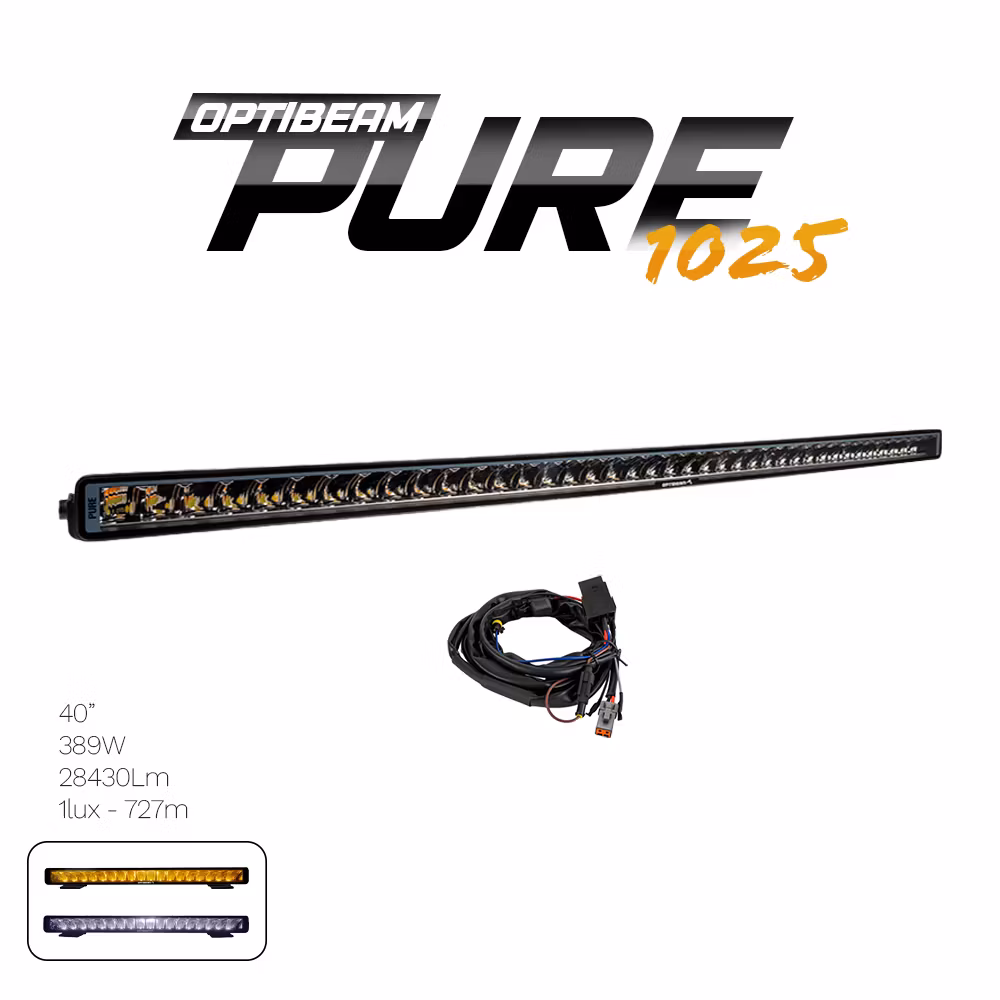

Option 2 – LED Light Bar + Wiring Harness
Includes the OPTIBEAM Pure 1025 and an auxiliary lighting wiring harness with relay, fuse, and switch.
A practical solution for installations using a conventional relay-controlled wiring setup.

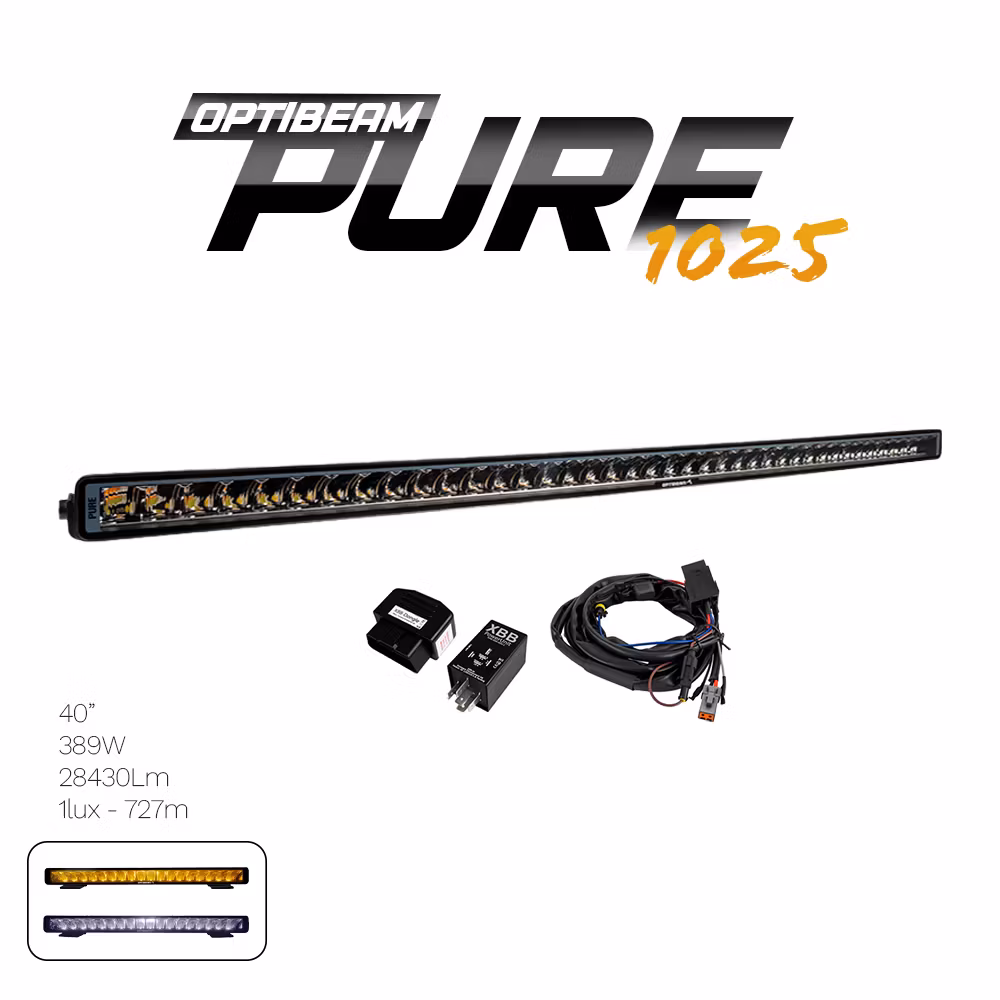

Option 3 – LED Light Bar + Wiring Harness + XBB Dongle & PowerUnit
Includes the OPTIBEAM Pure 1025, auxiliary lighting wiring harness, and XBB Dongle & PowerUnit.
The XBB system reads the vehicle's high beam signal via the CAN bus and enables wireless control of the auxiliary lighting without the need to connect directly to the vehicle's original high beam wiring.
The XBB PowerUnit controls the external relay, which supplies power to the LED light bar through the wiring harness.
This option is particularly convenient for compatible modern vehicles with advanced electrical systems.
OPTIBEAM Pure 1025 is designed for reliable performance in demanding driving conditions.
The light bar operates within a 9–48V voltage range and features ECE R10, R148, and R149 approvals.
A 2-pin DTP connector and 2.2-metre cable are supplied with the light bar.
Width: 1,027 mm
Height: 42 mm
Depth: 65 mm
The light bar features a threaded mounting hole on its upper edge for a stabilizing support rod. If this hole is not used, it must be sealed with silicone to prevent water ingress.
The optional wiring harness is supplied without DT connectors and is preconfigured for 12V systems. For 24V installations, the relay and fuse must be replaced with the included 24V relay and 30A fuse.
When using XBB, the PowerUnit must control the external relay rather than power the light bar directly. Vehicle compatibility and correct electrical installation must be verified before installation.
With its impressive 28,430 measured lumens, 727-metre range, and ultra-slim design, OPTIBEAM Pure 1025 delivers powerful auxiliary lighting with a refined appearance.
Whether you choose the LED light bar alone, add a wiring harness, or select the complete package with XBB control, you get a versatile lighting solution designed for excellent visibility and a clean installation.
