Ledson Connect 6-Pin DT Wiring Harness – Smart Connection for Driving Lights, LED Light Bars & Work Lights
Install driving lights, LED light bars, or work lighting quickly, easily, and safely with the Ledson Connect 6-pin DT wiring harness. It eliminates complicated wiring and saves both time and effort. The system works equally well for direct connection or together with XBB for CAN bus control, making it ideal for modern passenger vehicles. The 6-pin harness is specifically designed for lighting systems with position lights and strobe lights in addition to the high beam function, ensuring a simple, reliable, and future-proof installation.
Technical Specifications
- Application: Driving lights, LED light bars, work lighting
- Connector type: 6-pin DT
- Number of outputs:
- 1 output (for one driving light / LED light bar)
- 2 outputs (for two driving lights / LED light bars)
- 3 outputs (for up to three driving lights / LED light bars)
- Maximum load per output: 13 A
- Functions: High beam + position light + strobe light
- Voltage: 12 V (passenger vehicles)
- Cable length: 2.0 m (from battery to DT connector)
- XBB support: Yes (via Connect control wiring harness, art. no. 7801011)
- Compatibility: LED, Halogen, Xenon
- Connectors: IP-rated DT connectors
- Cable: Durable, flexible, and vibration-resistant
- Included accessories: Heat-shrink connectors for waterproof connections
Maximum Power per Harness

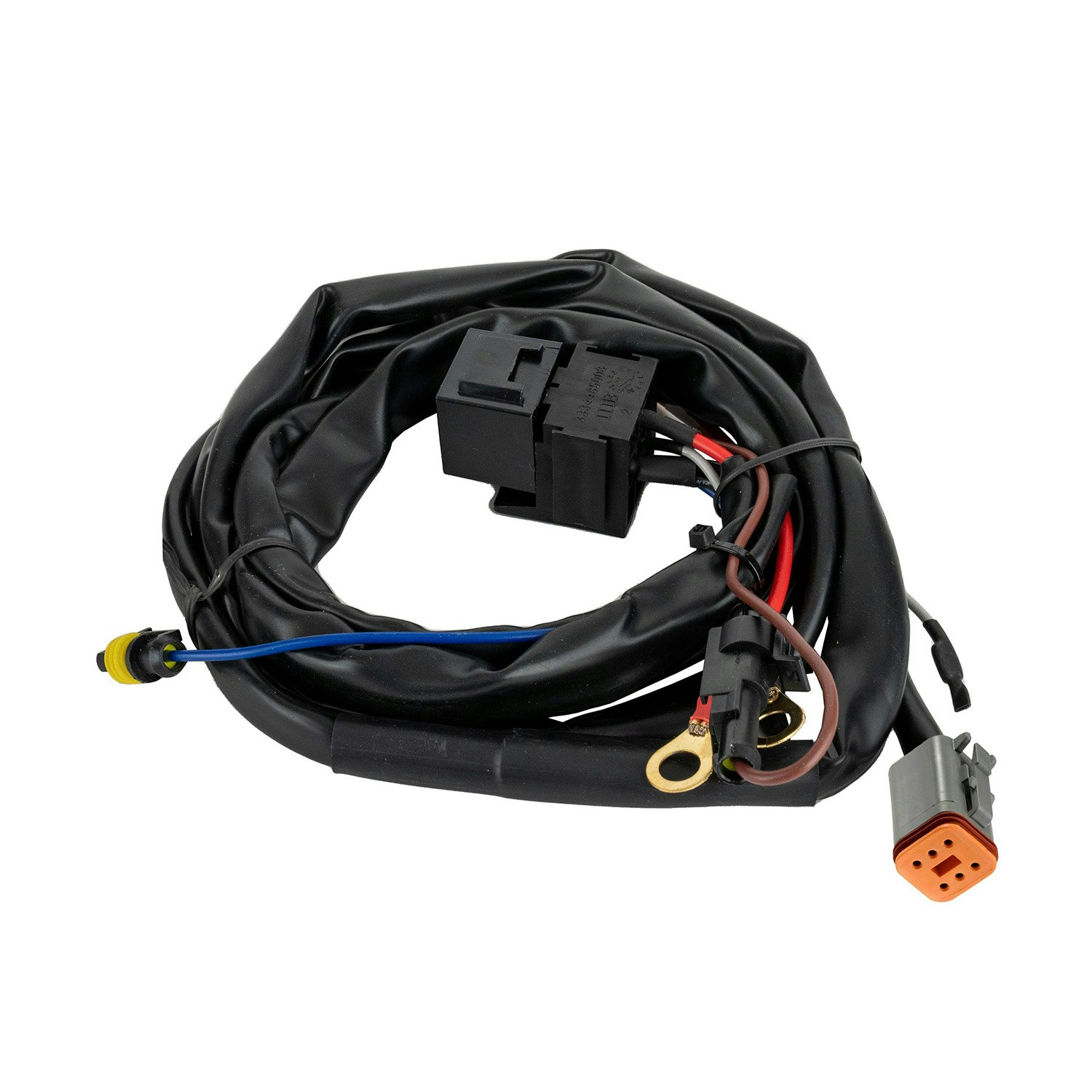

- 1 × 6-pin DT (art. no. 7801006): max 180 W
- 2 × 6-pin DT (art. no. 7801014): max 320 W

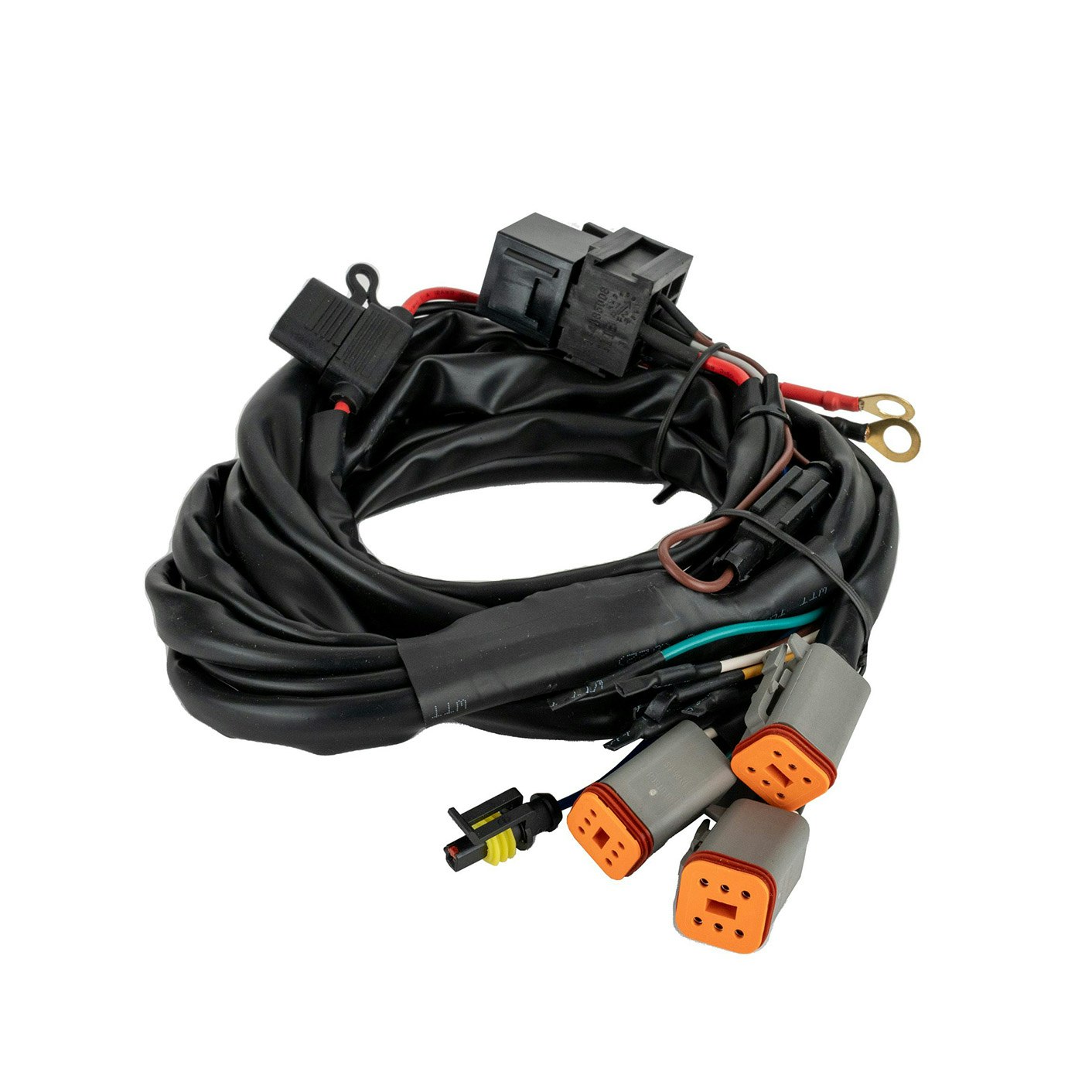

- 3 × 6-pin DT (art. no. 7801017): max 500 W
Manuals
Benefits of Ledson Connect
- Fast and easy installation without modifying the vehicle’s original wiring
- Support for position lights and strobe lights in the same harness
- Ability to control up to three lights per harness
- Fully compatible with XBB and CAN bus systems
- Expandable and daisy-chainable system
- Robust solution designed for Nordic conditions
