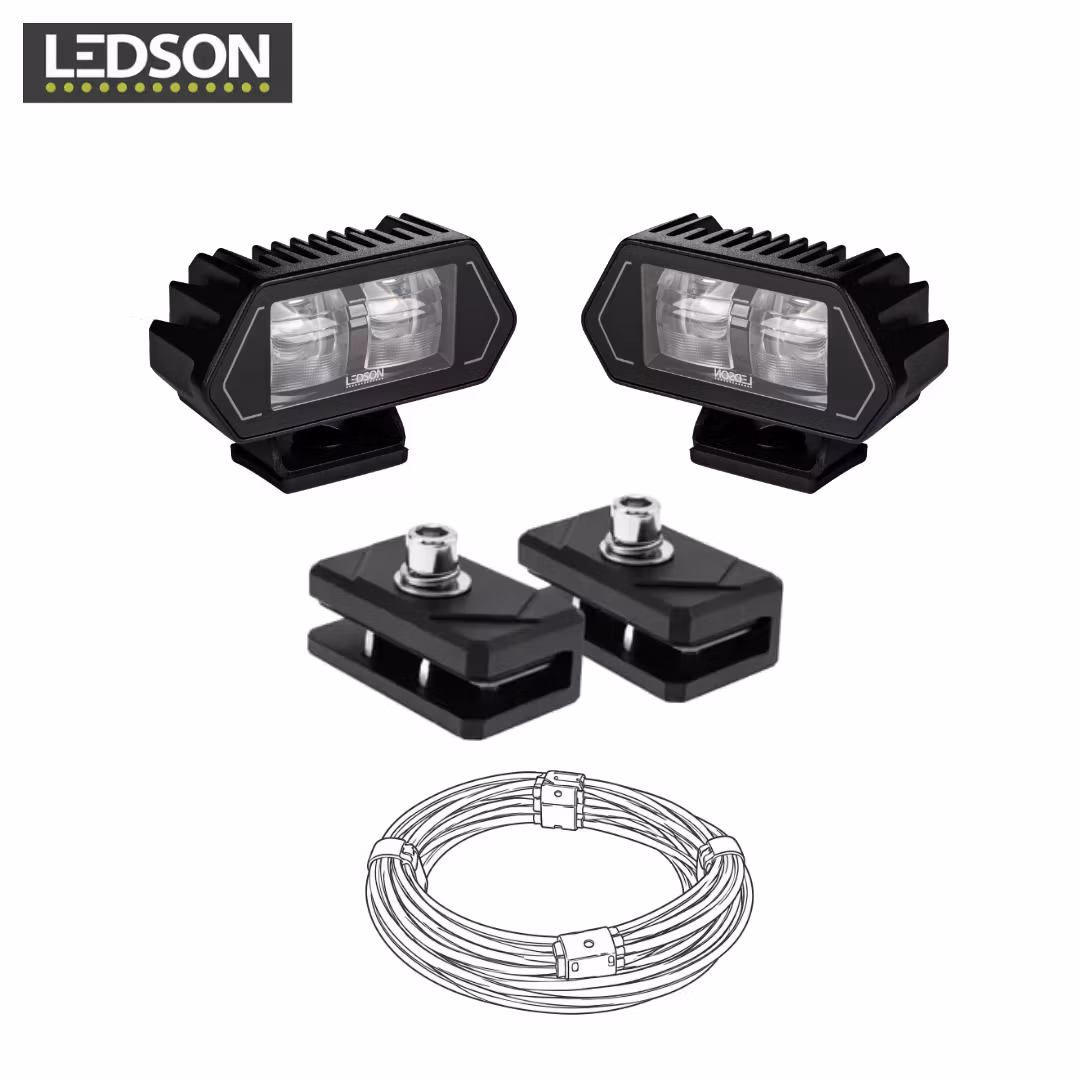

Complete ditch light kit with two powerful 80W LED lights, advanced Non-Glare optics, universal hood mounts and matching wiring harness.
Upgrade your vehicle with the Ledson Epix5 Work Non-Glare Ditch Light Kit – a complete lighting solution designed to provide powerful, wide-area illumination while minimising glare.
Featuring two Ledson Epix5 Work Non-Glare LED lights, universal hood mounts and a matching Ledson Connect wiring harness, this kit combines outstanding lighting performance with a clean, discreet installation.
The advanced Non-Glare optics direct light where it is needed most, making the kit an excellent choice for illuminating roadside areas, ditches and the surroundings of your vehicle.
Unlike conventional LED work lights, the Epix5 Work Non-Glare features specially developed optics that effectively reduce unwanted glare.
By directing the light towards the intended area, the lamps provide excellent visibility without producing unnecessary dazzling light.
This makes them particularly suitable for situations where controlled illumination and visual comfort are important.
Each Ledson Epix5 Work Non-Glare delivers 3,800 actual lumens, providing a combined light output of 7,600 actual lumens.
The wide Flood beam illuminates a large area around the vehicle, while the range of 88 metres at 1 lux provides effective visibility in dark conditions.
With a colour temperature of 5000K, the lights produce a clear, neutral white light that helps improve visibility and reduce eye fatigue.

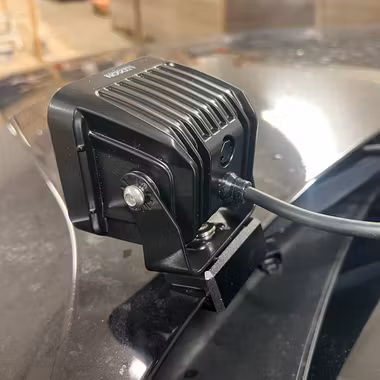

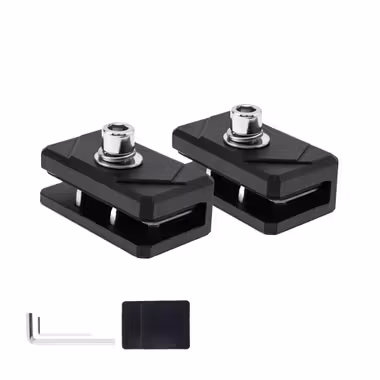

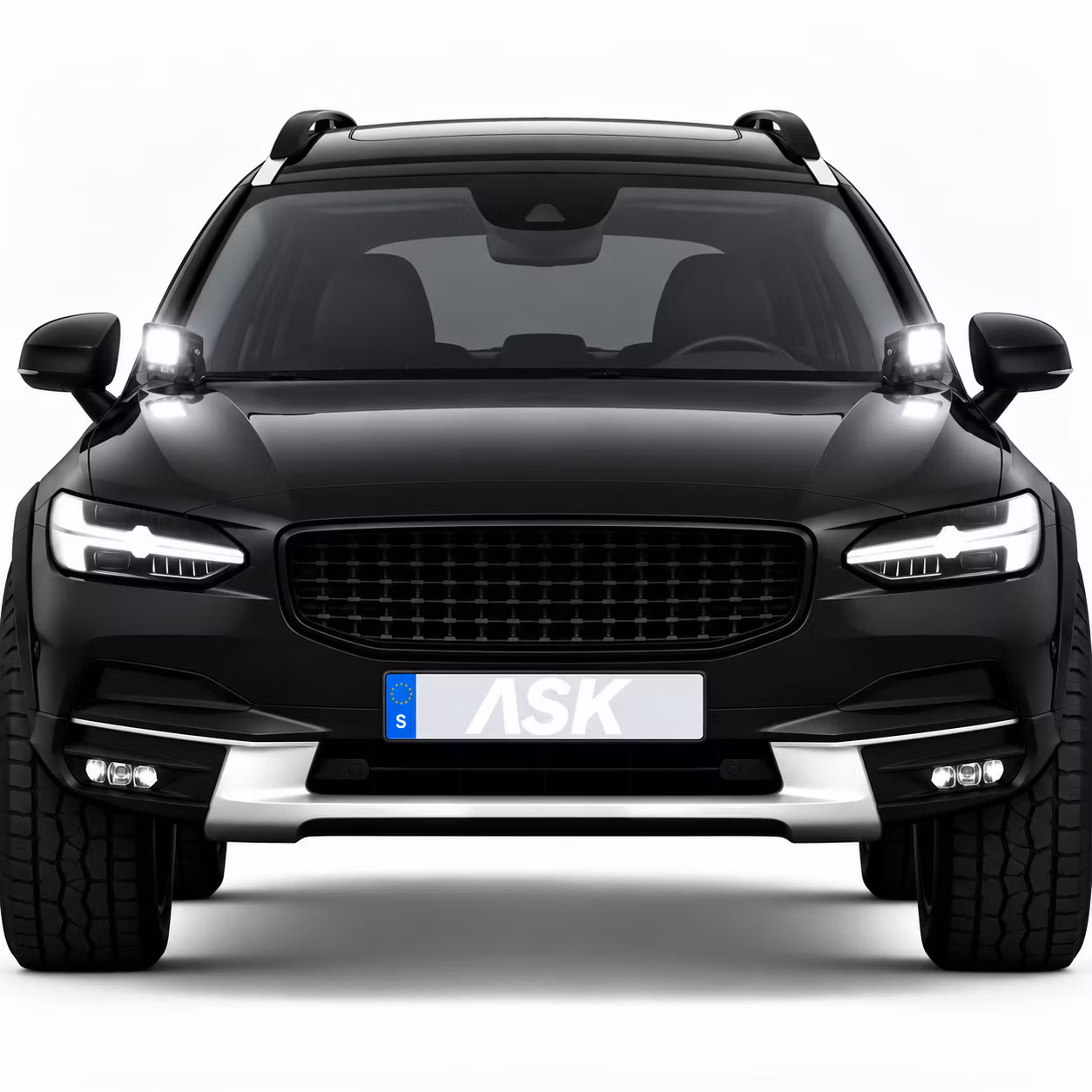

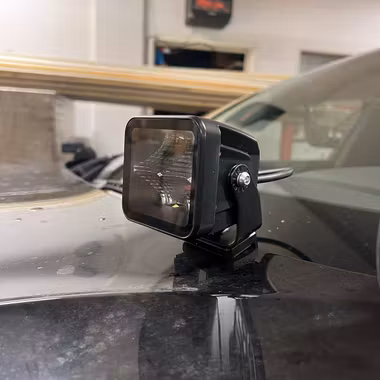

The included universal hood mounts allow the lights to be installed at the rear corners of the vehicle's hood, close to the windshield.
Positioned on either side of the vehicle and angled outwards, the lights can illuminate roadside areas, ditches and surroundings that may otherwise remain difficult to see.
The brackets are designed for secure installation without drilling into the vehicle's bodywork, creating a discreet and integrated appearance.

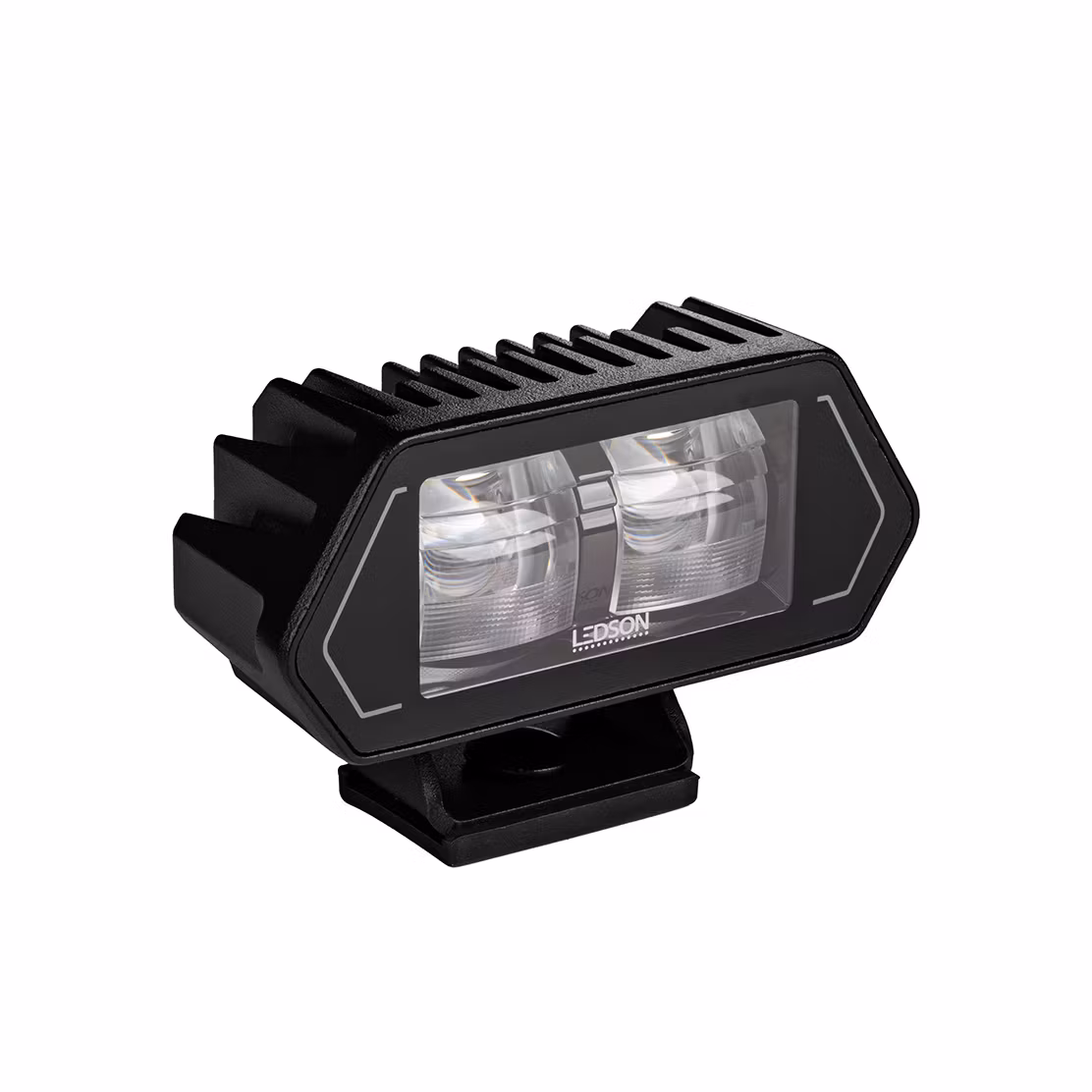

The Epix5 Work Non-Glare features a robust, one-piece aluminium housing designed to withstand demanding environments.
With an IP69K rating, the lights offer excellent protection against dust, water and high-pressure cleaning.
Their compact 5-inch design combines durability with a modern appearance that complements a wide range of vehicles.
The kit includes a Ledson Connect 12V relay wiring harness with two 2-pin DT connectors, providing a practical connection solution for both LED lights.
For customers who prefer wireless control, an XBB system can be purchased separately.
| Specification | Details |
|---|---|
| LED lights | 2 × Ledson Epix5 Work Non-Glare |
| Power | 80W per light (160W total) |
| Actual light output | 3,800 lumens per light |
| Combined light output | 7,600 lumens |
| Beam pattern | Flood / Non-Glare |
| Range | 1 lux at 88 metres |
| Colour temperature | 5000K |
| Operating voltage (lights) | 9–36V |
| Wiring harness voltage | 12V |
| Connection | 2-pin DT |
| Dimensions per light | 127 × 79 × 46 mm |
| IP rating | IP69K |
| E-marking | ECE R10 |
| Warranty | 36 months |
With advanced Non-Glare optics, an impressive combined output of 7,600 actual lumens and discreet hood-mounted installation, the Ledson Epix5 Work Non-Glare Ditch Light Kit provides powerful illumination exactly where you need it.
A complete lighting solution for drivers who value performance, visibility and a clean, integrated design.
