Ledson Raptor 30 Ditch Light Kit



Ledson Raptor 30 Ditch Light Kit

Complete ditch light kit with two powerful 30W LED lights, universal hood mounts and wiring harness. Choose between Flood and Spot beam patterns.

Upgrade your vehicle's lighting with the Ledson Raptor 30 Ditch Light Kit – a complete solution combining powerful LED illumination with discreet hood-mounted installation.

The kit includes two Ledson Raptor 30 LED lights, universal hood mounts and a matching Ledson Connect wiring harness. Choose between the wide Flood beam or the focused Spot beam to suit your lighting needs.

Choose your beam pattern – Flood or Spot

Raptor 30F – Flood

Designed to illuminate a wide area around your vehicle, the Raptor 30F provides broad, even light distribution.

With a range of 54 metres at 1 lux, it is particularly suitable for work lighting, off-road activities and illuminating the surroundings of your vehicle.

Raptor 30S – Spot

The Raptor 30S features a focused beam designed to provide excellent long-distance visibility.

With an impressive range of 275 metres at 1 lux, it is ideal for drivers who want to extend their field of vision further ahead.

Powerful LED performance

Both versions deliver 2,259 actual lumens per light, providing a combined output of 4,518 actual lumens.

The 5700K colour temperature produces a crisp white light, while the robust aluminium housing ensures durability in demanding conditions.

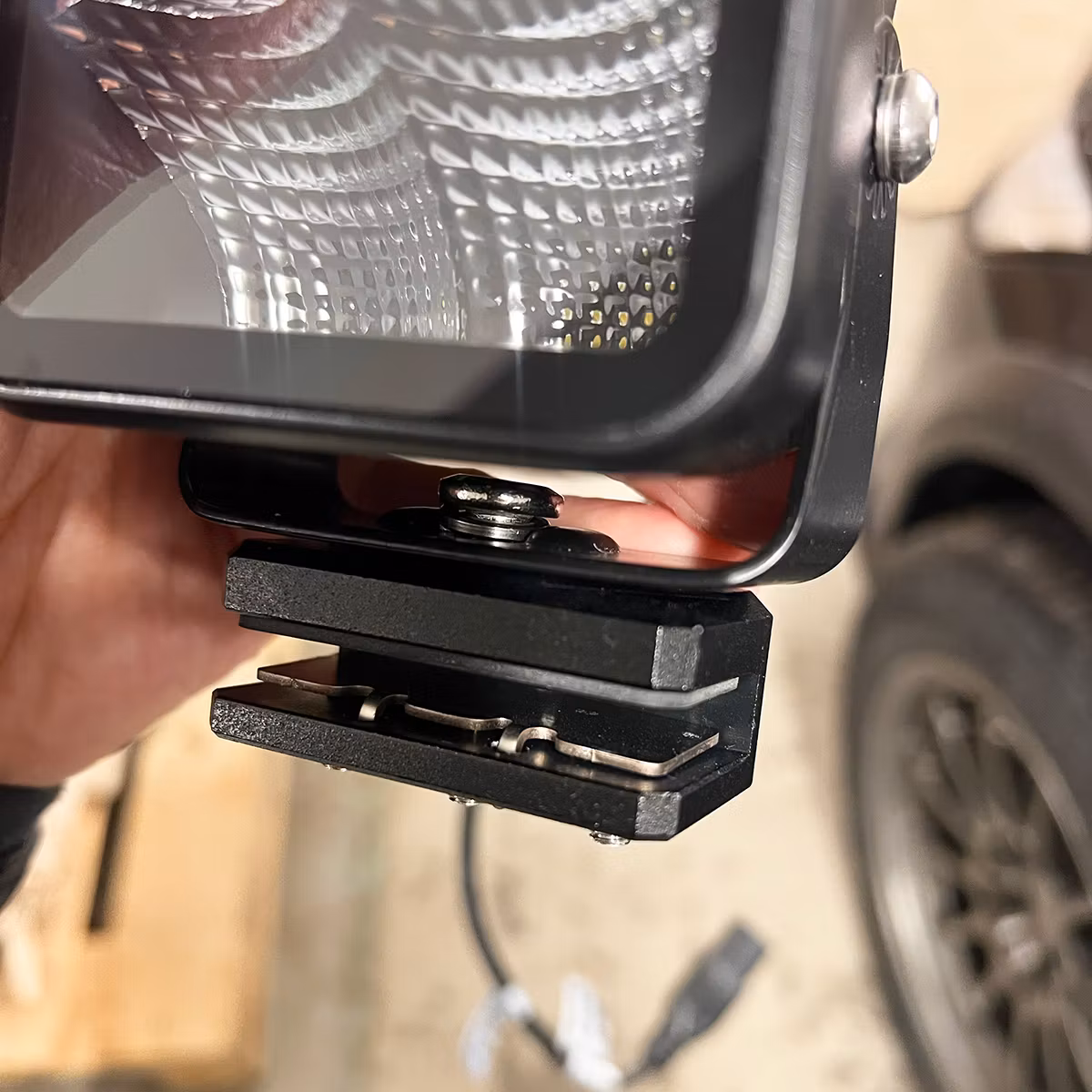

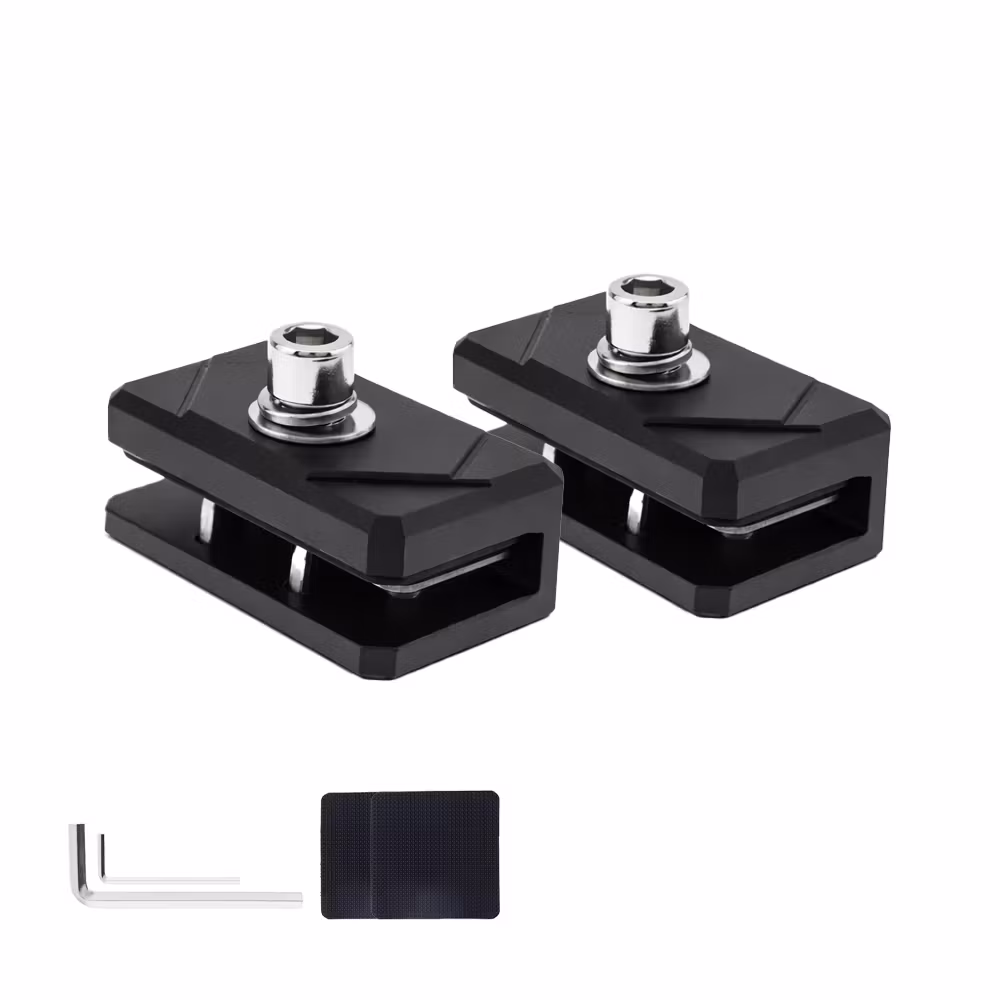

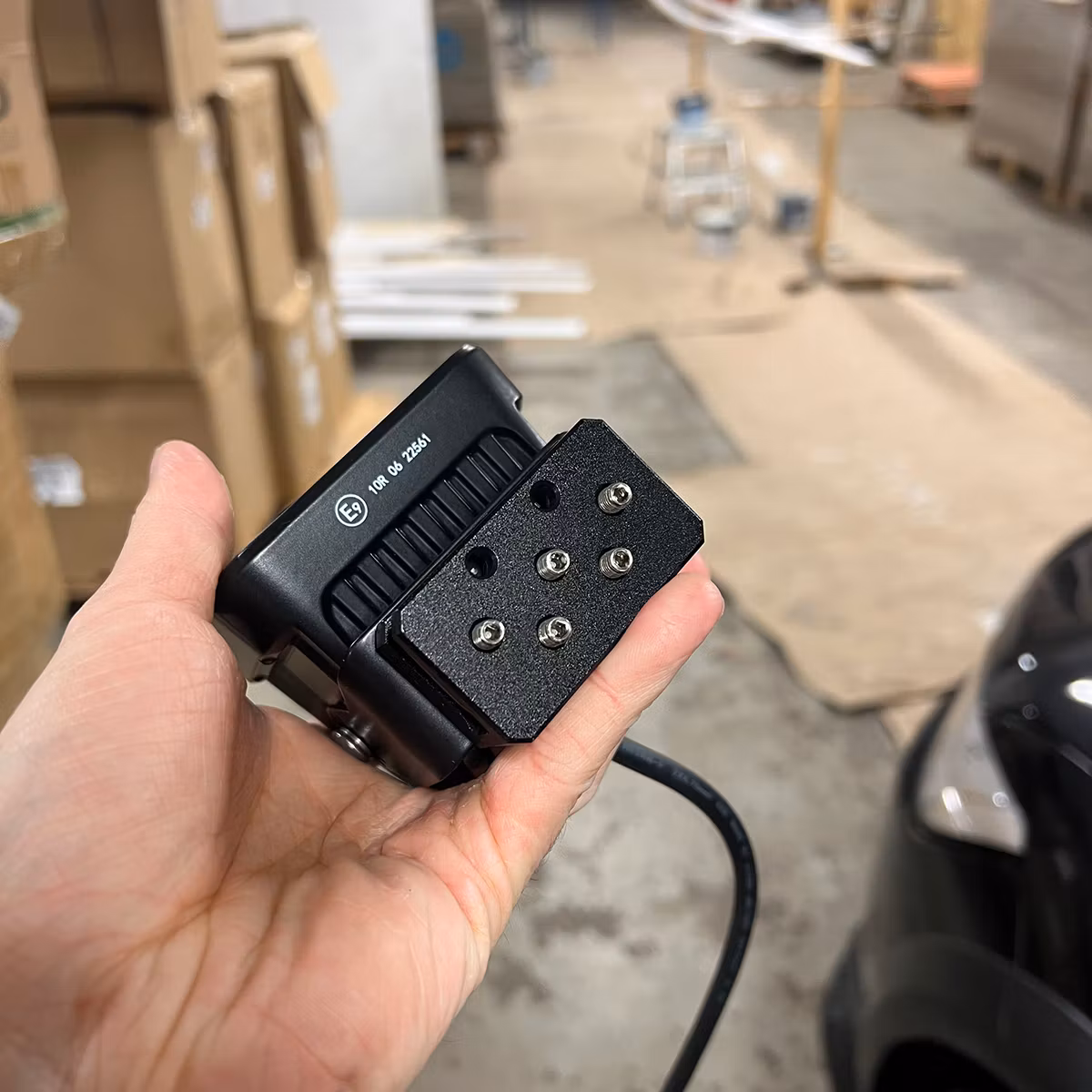

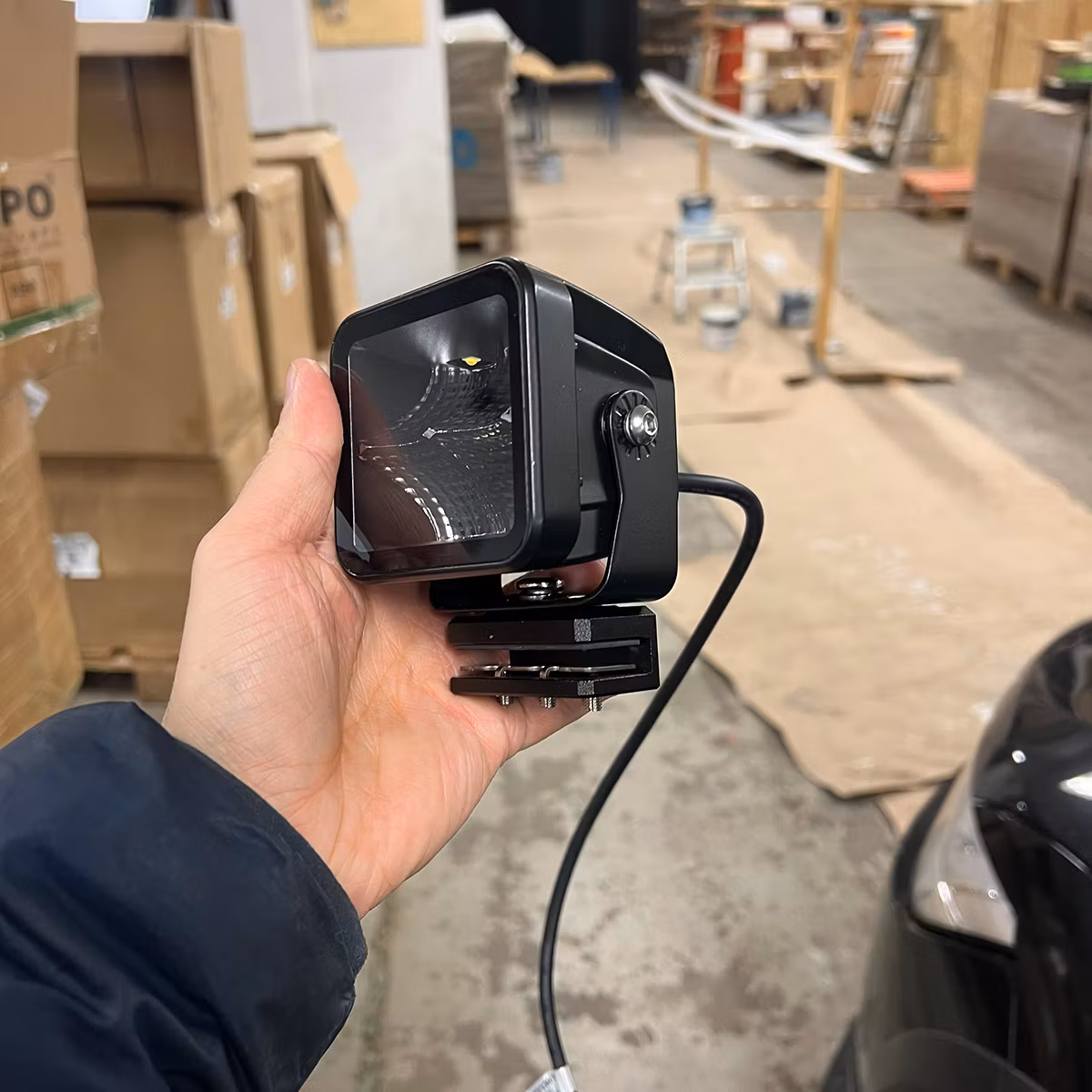

Universal hood mounts – no drilling required

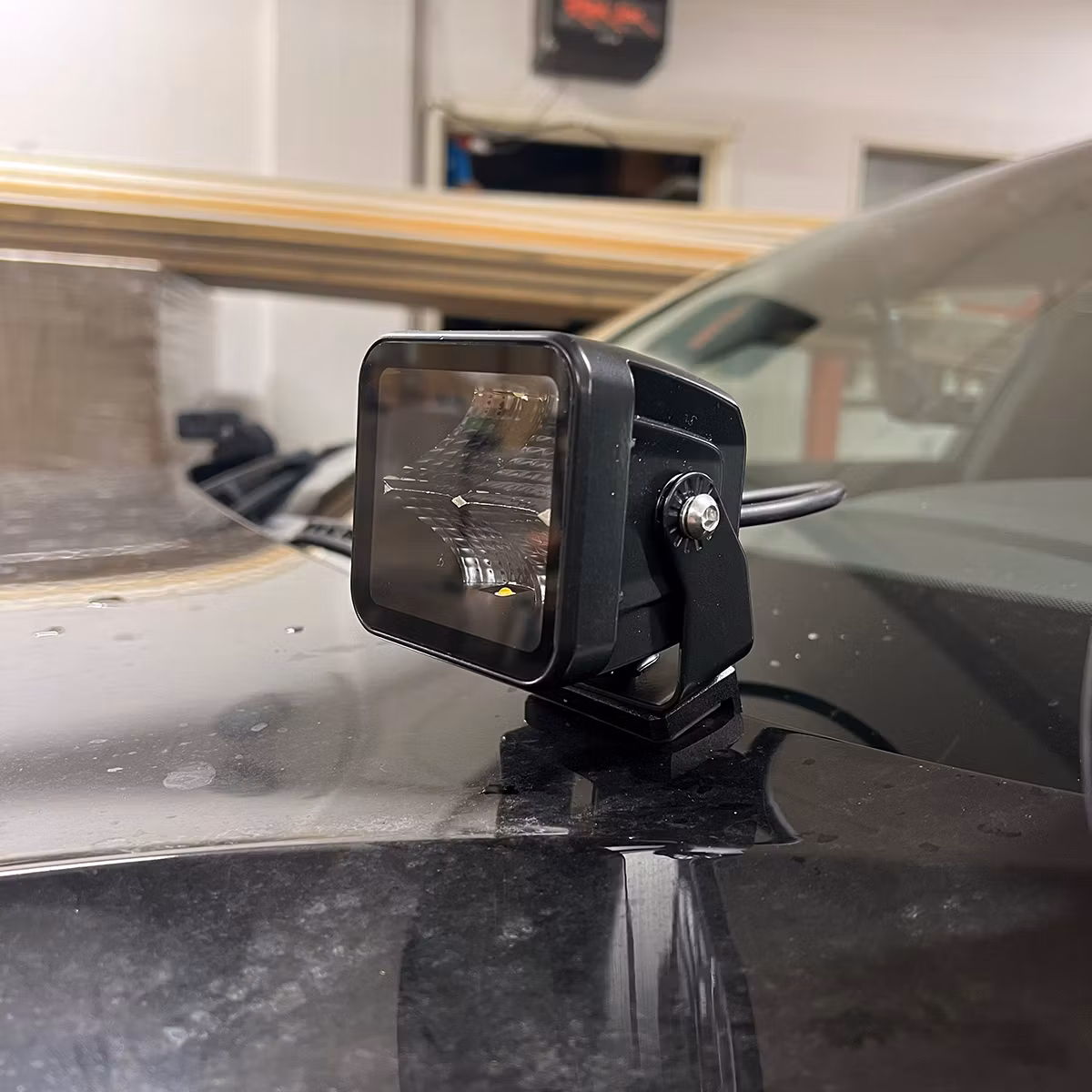

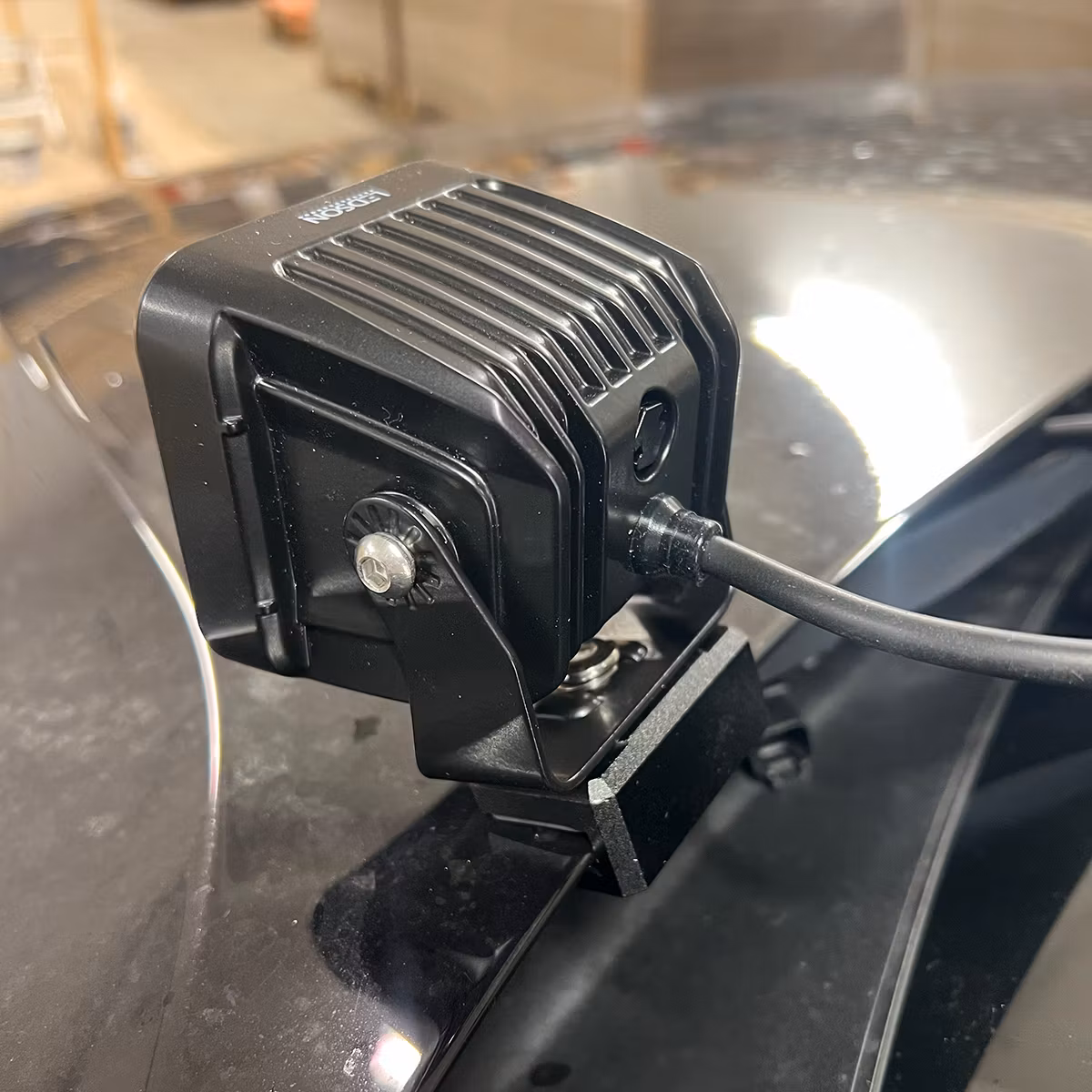

The included universal hood mounts allow the lights to be installed along the rear edge of the vehicle's hood.

The brackets provide a secure installation without drilling into the bodywork, preserving the vehicle's original appearance while creating a clean and discreet look.

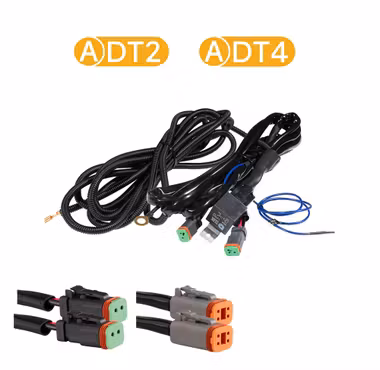

Complete kit with Ledson Connect wiring harness

The kit includes a Ledson Connect wiring harness with two 2-pin DT connectors, allowing both lights to be connected through a relay-controlled installation.

An XBB system for wireless control can be purchased separately.

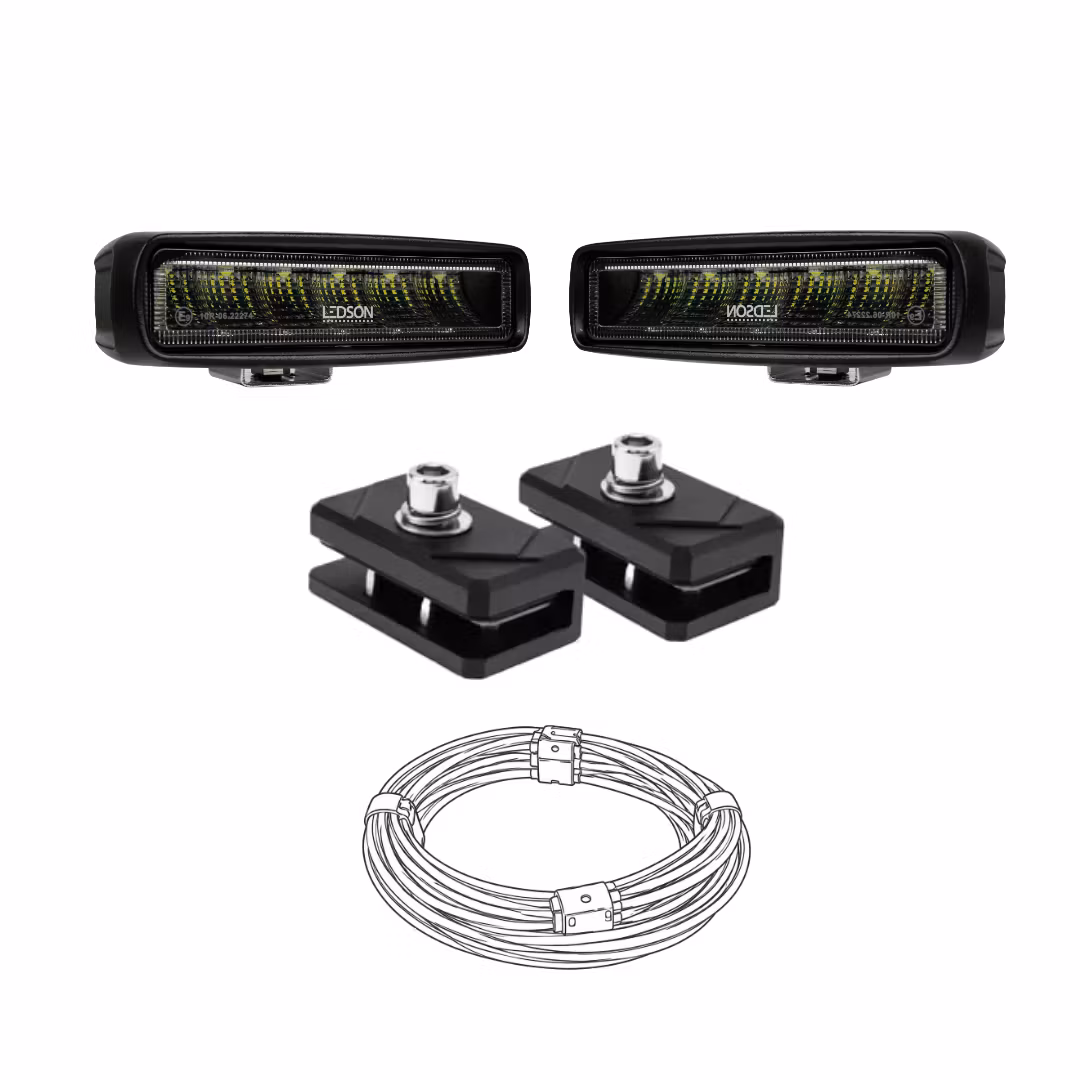

What's included?

  • 2 × Ledson Raptor 30 LED lights (Flood or Spot, depending on your selection)
  • 1 × Pair of universal hood mounts
  • 1 × Ledson Connect wiring harness with 2 × 2-pin DT connectors

Technical specifications

Specification
Raptor 30F Flood
Raptor 30S Spot
Power
30W
30W
Actual light output
2,259 lumens
2,259 lumens
Beam pattern
Flood
Spot
Range (1 lux)
54 metres
275 metres
Colour temperature
5700K
5700K
IP rating
IP69K
IP67
Dimensions
158 × 48 × 63 mm
160 × 46 × 64 mm
E-marking
ECE R23, R10
ECE R112, R10


Complete lighting solution for your vehicle

Whether you need wide illumination for working environments or focused lighting for longer distances, the Ledson Raptor 30 Ditch Light Kit offers a practical and stylish upgrade.

Choose your preferred beam pattern and get everything conveniently gathered in one package.
