Led Bar kit - Optibeam Pure 730 - 30" 368W

OPTIBEAM Pure 730 – 30" LED Light Bar with White/Amber Position Light

OPTIBEAM Pure 730 is a slim and powerful LED light bar combining impressive lighting performance with a sleek, discreet design. With a height of only 42 mm, it is easy to integrate into the vehicle and ideal for installations where space is limited.

Despite its compact profile, the Pure 730 delivers an impressive 25,670 measured lumens and a range of 674 metres at 1 lux. The wide beam pattern provides excellent visibility both ahead and along the sides of the road, making it an excellent choice for dark roads and demanding driving conditions.

25,670 lumens and 674 metres of range

Equipped with 27 LEDs, the Pure 730 delivers powerful illumination from an exceptionally slim housing. The combination of long-range performance and a wide beam pattern significantly improves visibility when driving in the dark.

With a colour temperature of 5000K, the light provides natural colour reproduction and comfortable visibility.

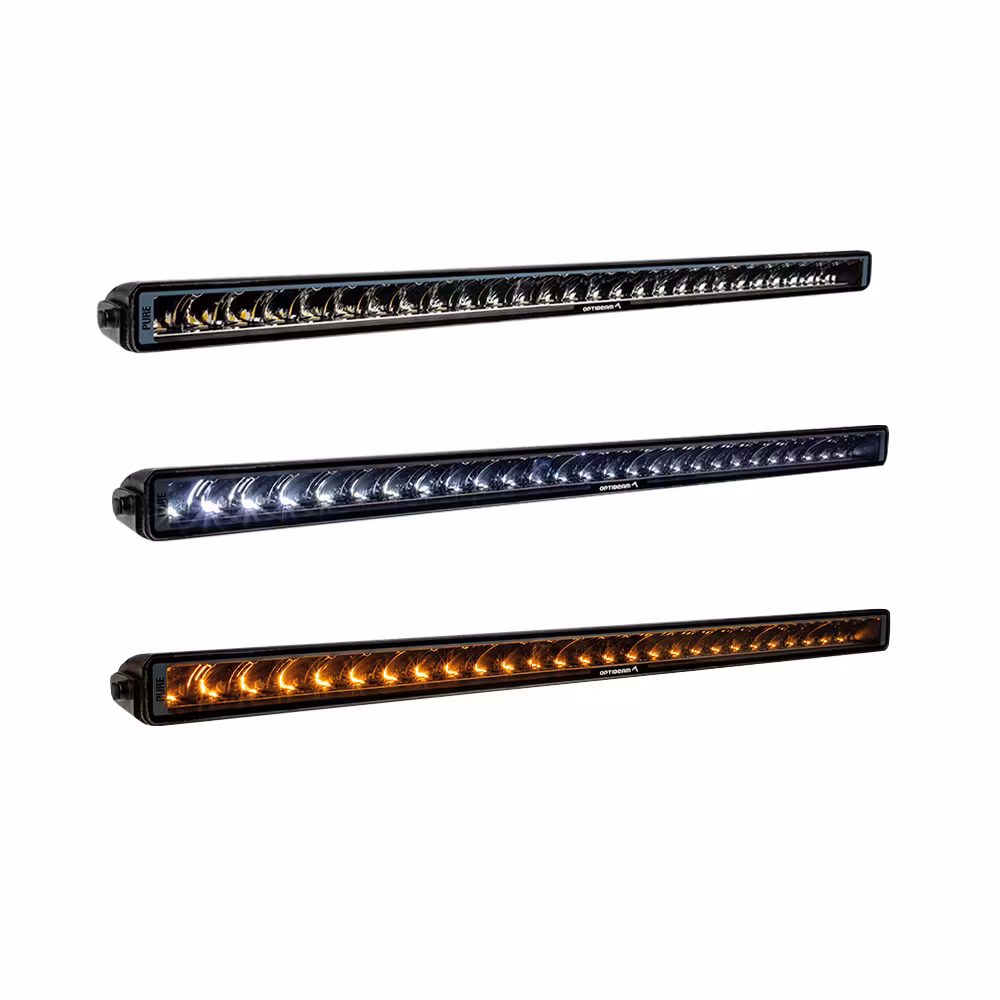

White or amber position light

The integrated position light can be set to white or amber, allowing you to customise the appearance to suit your vehicle and preferred style.

Its dark, streamlined design and low profile give the Pure 730 a clean and discreet appearance when switched off – while delivering serious lighting performance when you need it.

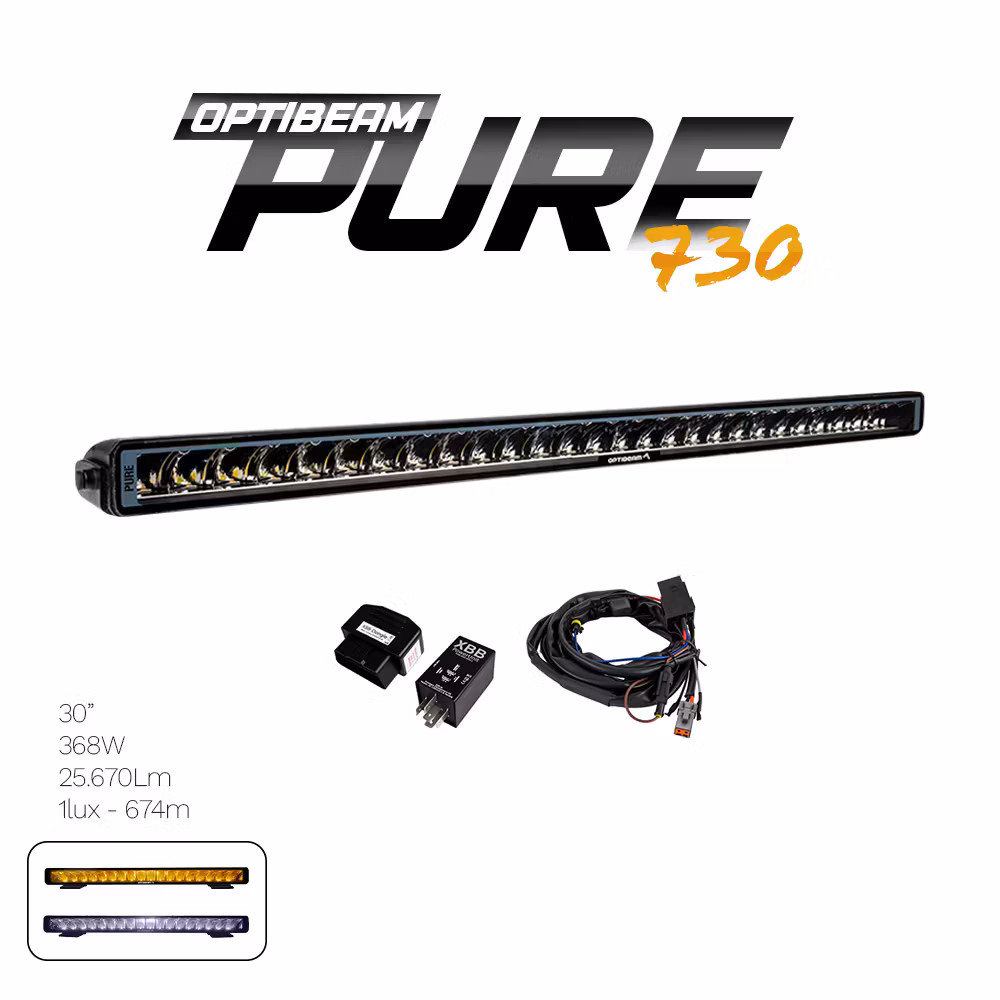

Choose your kit

The OPTIBEAM Pure 730 is available in different configurations, allowing you to choose the solution that best suits your vehicle and installation:

LED bar only – OPTIBEAM Pure 730 LED light bar.

LED bar + wiring harness – Includes a wiring harness with relays, fuses and connectors required for installation. The harness is prepared for 12V systems and can also be used with 24V systems by replacing the relay and fuse with the included 24V relay and 30A fuse.

LED bar + wiring harness + XBB Dongle & PowerUnit – The most complete option, including the wiring harness and an XBB kit for reading CAN bus information via the vehicle's OBD-II port. The XBB Dongle communicates wirelessly with the PowerUnit via Bluetooth, allowing compatible vehicle signals to control the auxiliary lighting without having to tap into the vehicle's original wiring.

Please note: XBB compatibility varies between vehicle models. Always check that your vehicle is supported before ordering the XBB option.

Specifications

• Voltage: 9–48V
• Range: 1 lux @ 674 m
• Light output: 25,670 lumens (measured)
• Current draw: 26.88A @ 13.7V
• Reference number: 30
• Colour temperature: 5000K
• LEDs: 27
• Position/effect light: white or amber

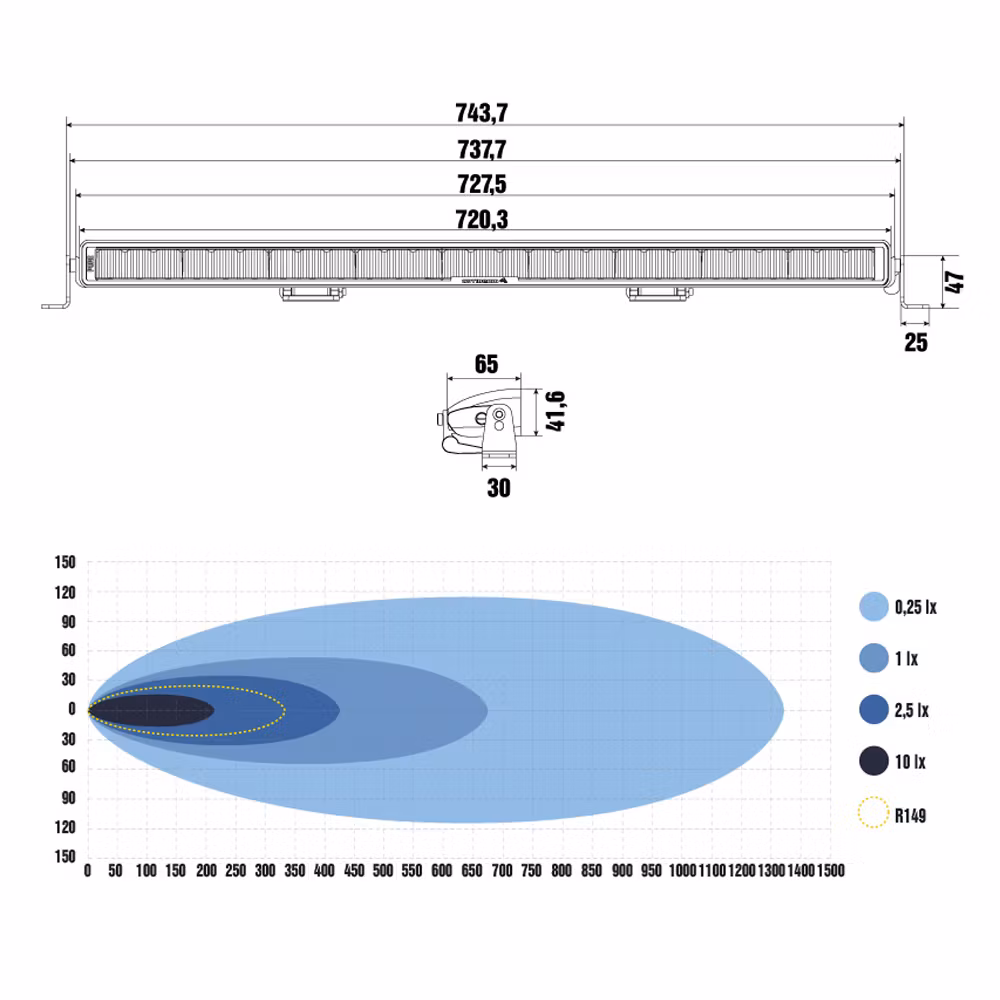

• Dimensions: 729 × 42 × 65 mm (W × H × D)
• E-approved: R10, R148, R149
• Connector: 2-pin DTP connector included
• Cable length: 2.2 m
