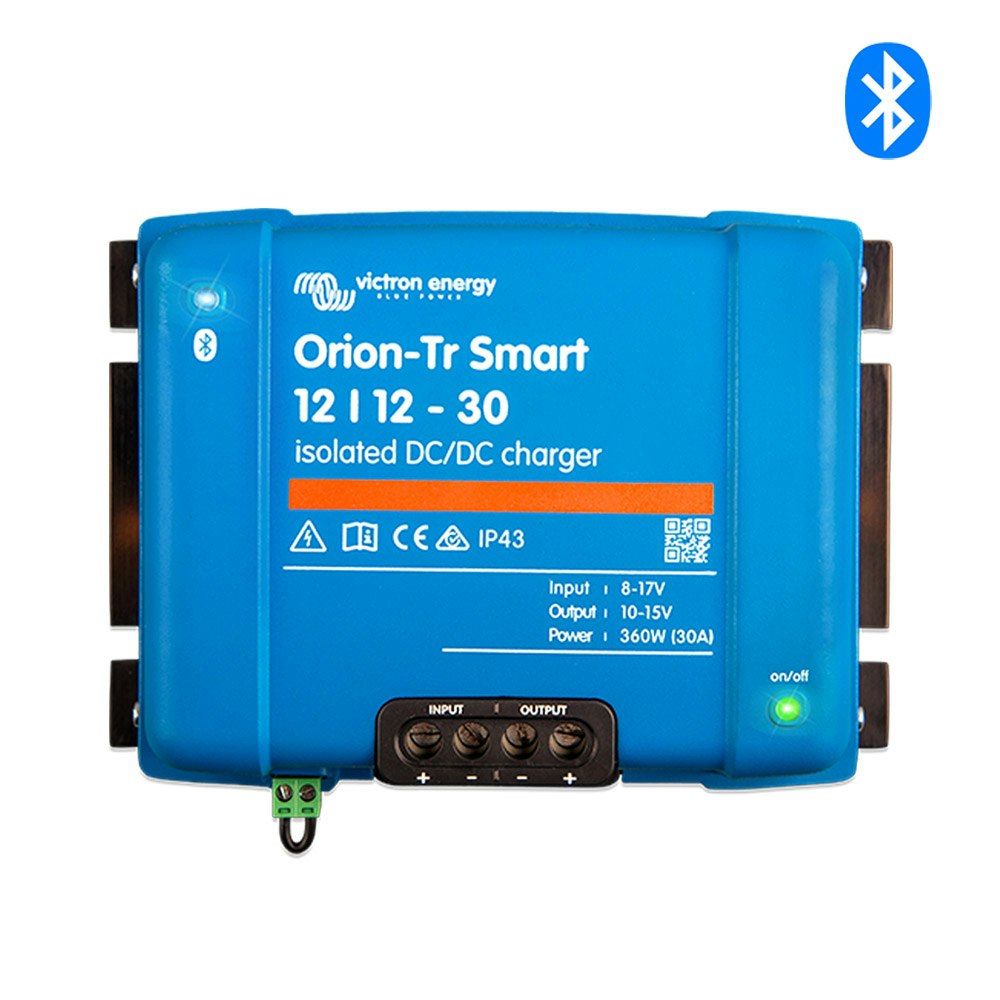

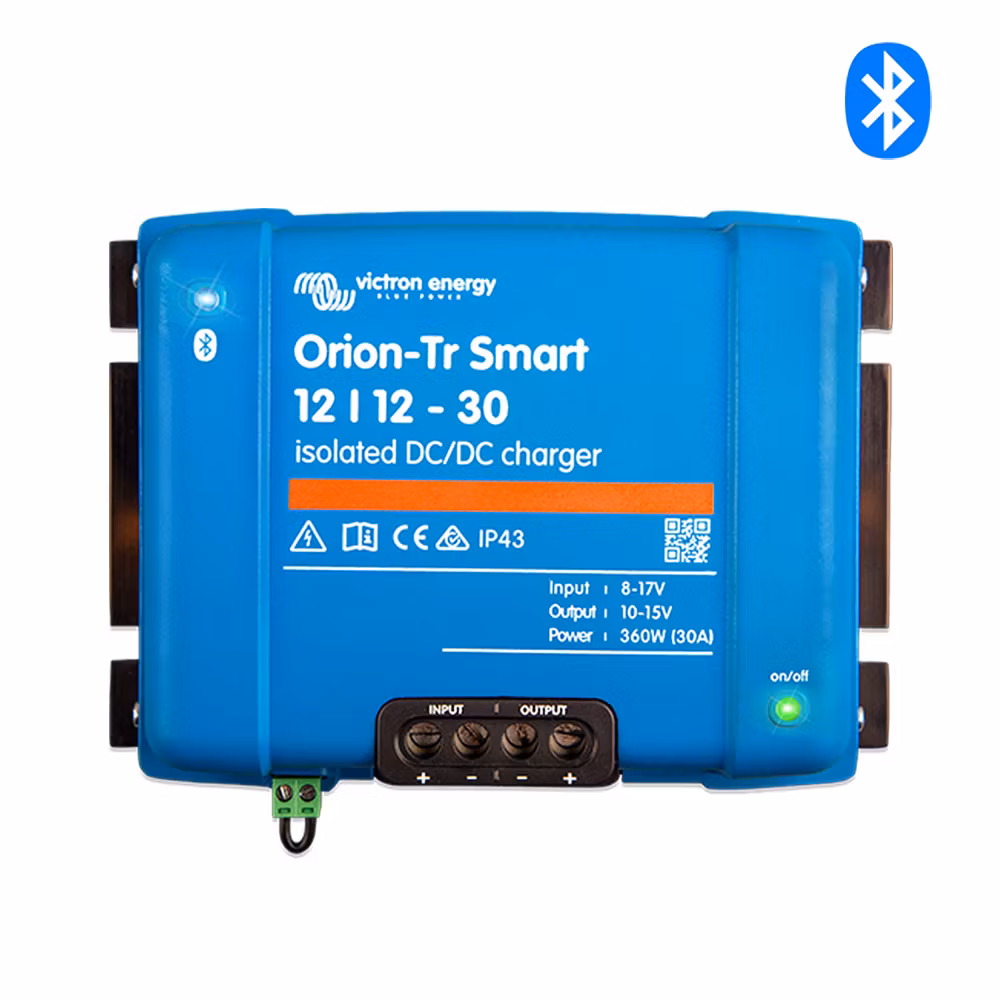

🔋 Victron Orion-Tr Smart DC-DC Charger 12V 30A – Isolated, Bluetooth-Controlled Charging Booster for Overlanding, Camping, and Off-Grid Use
Looking to install a dual battery system in your Volvo, build a rugged overland vehicle, or ensure a stable power supply for your camper, RV, boat, or off-grid setup? The Orion-Tr Smart 12/12-30A Isolated DC-DC Charger from Victron Energy is a professional-grade, adaptive 3-stage charger designed exactly for those needs – with built-in Bluetooth, galvanic isolation, and flexible control options.
Perfect for use in systems where the start battery and (smart) alternator are used to charge a secondary service battery – whether lead-acid (AGM, GEL) or lithium (LiFePO4). With support for both 12V and 24V systems, this charger ensures optimal charging performance, even in high-temperature environments up to 55°C.
✅ Key Features
- ⚡ 30A continuous output current at 12.2V – Up to 360W charging power
- 📱 Bluetooth Smart – Monitor, configure, and update via the VictronConnect app
- 🔌 Galvanic isolation – Protects your vehicle or boat's electrical system
- 🔋 Supports lithium and lead-acid batteries – Fully programmable charging profiles
- 🧠 Adaptive 3-stage algorithm – Bulk, Absorption, Float; optimized for battery health
- ➕ Parallel connection capable – Combine multiple units for increased output
- 🛠️ Remote on/off control – Activate using switch, relay, or auto alternator detection
- 🌡️ Temperature resistant – Rated up to +55°C with full power up to +40°C
- 🔐 Short-circuit proof and over-temperature protection
- 💧 IP43 rated – Suitable for protected installations
🔍 Technical Specifications
- Input voltage range: 10–17 V
- Nominal output voltage: 12.2 V (adjustable 10–15 V)
- Voltage tolerance: ±0.2 V
- Continuous output current @ 40°C: 30 A
- Continuous output power @ 40°C: 360 W
- Efficiency: 87%
- Operating temperature: -20°C to +55°C
- Connection terminals: Screw type, 16 mm² (AWG 6)
- Weight: 1.8 kg
- Dimensions: 130 x 186 x 70 mm
- Protection class: IP43 (if installed correctly)
📱 VictronConnect App Features
- Monitor real-time charging status and parameters
- Customize settings for different battery types (AGM, GEL, LiFePO4, etc.)
- Update firmware with ease via smartphone or tablet
- Enable/disable charger remotely through the app
🚙 Ideal For
- ✅ Overlanding and off-grid camping setups
- ✅ Dual battery systems in Volvos, pickups, and work trucks
- ✅ RVs, campervans, and marine installations
- ✅ Service vehicles and utility builds requiring reliable auxiliary power
🛒 Upgrade Your Power System Today
With its 30A output, smart charging algorithm, and robust build, the Victron Orion-Tr Smart 12/12-30A DC-DC Charger is the ultimate choice for anyone needing a reliable, intelligent, and configurable power management solution.
Whether you're driving cross-continent in a 4x4 or powering tools from a mobile workshop – this charger ensures your auxiliary battery stays topped up and protected.
🔌 Stay powered, wherever you go – order your Orion-Tr Smart DC-DC Charger today!
