Led Bar Kit - Ledson Alfa - 20" 180W



Ledson Alfa 20" LED Light Bar Kit – Sleek and Powerful LED Bar for Volvo, Tesla, Audi, VW, Skoda, and Ford

Looking for a stylish and powerful LED bar that performs on both highways and off-road? The Ledson Alfa 20" offers reliable performance, modern design, and a combo beam pattern – all in a compact housing. With ECE R112 and R10 approval, it’s road legal and ideal for vehicles like Volvo, Tesla, VW, Skoda, Audi, Ford, and more.

The combo beam delivers both width and distance, making it perfect for mixed driving – from highways to country roads.

⚑ Choose Between Two Complete Kits – With or Without XBB

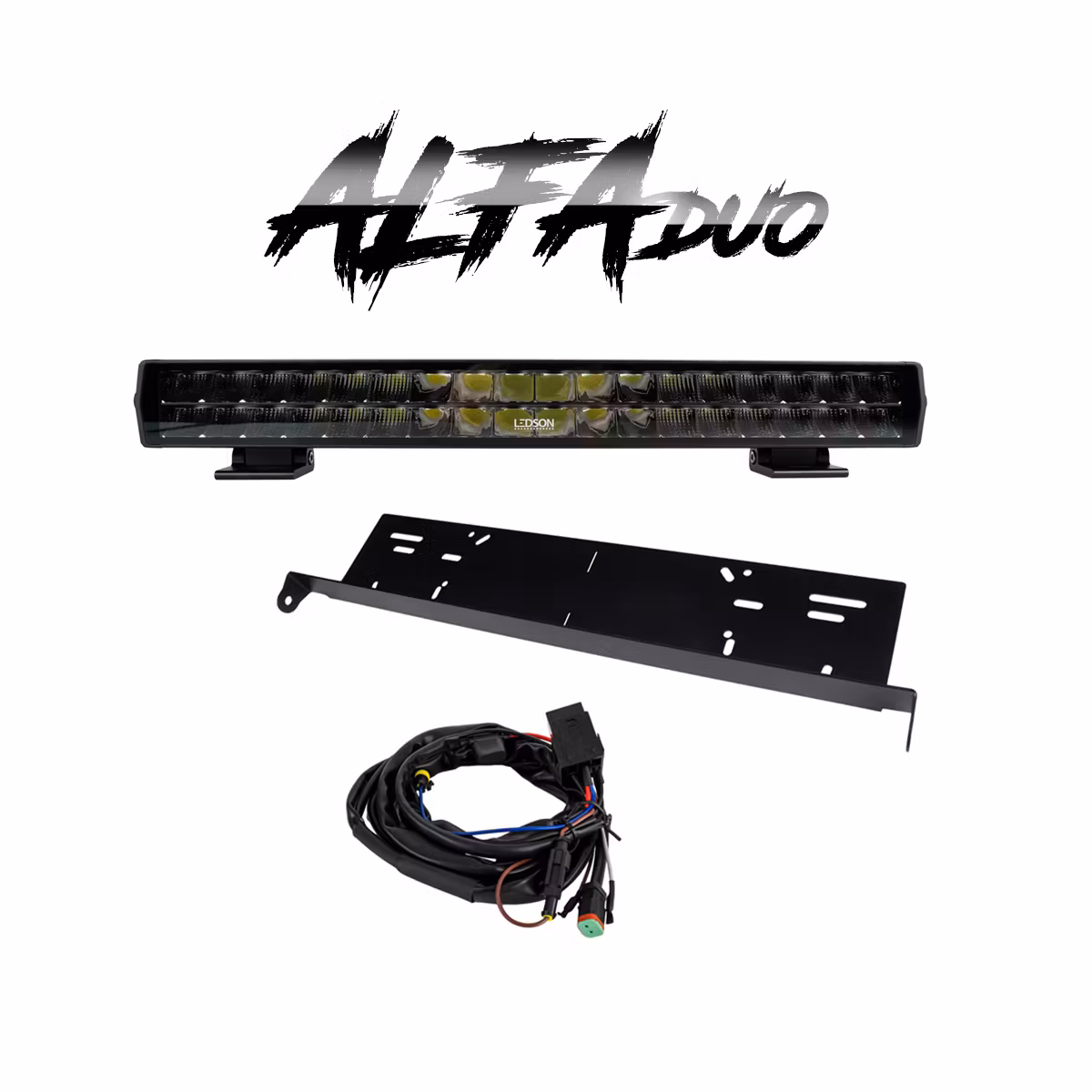

πŸ›  Without XBB (manual installation):

  • 1 x Ledson Alfa 20" LED light bar
  • 1 x Relay wiring harness with DT connector
  • 1 x License plate bracket
    πŸ‘‰ Benefits: A cost-effective option for those who prefer connecting the bar directly to the vehicle’s high beam signal.

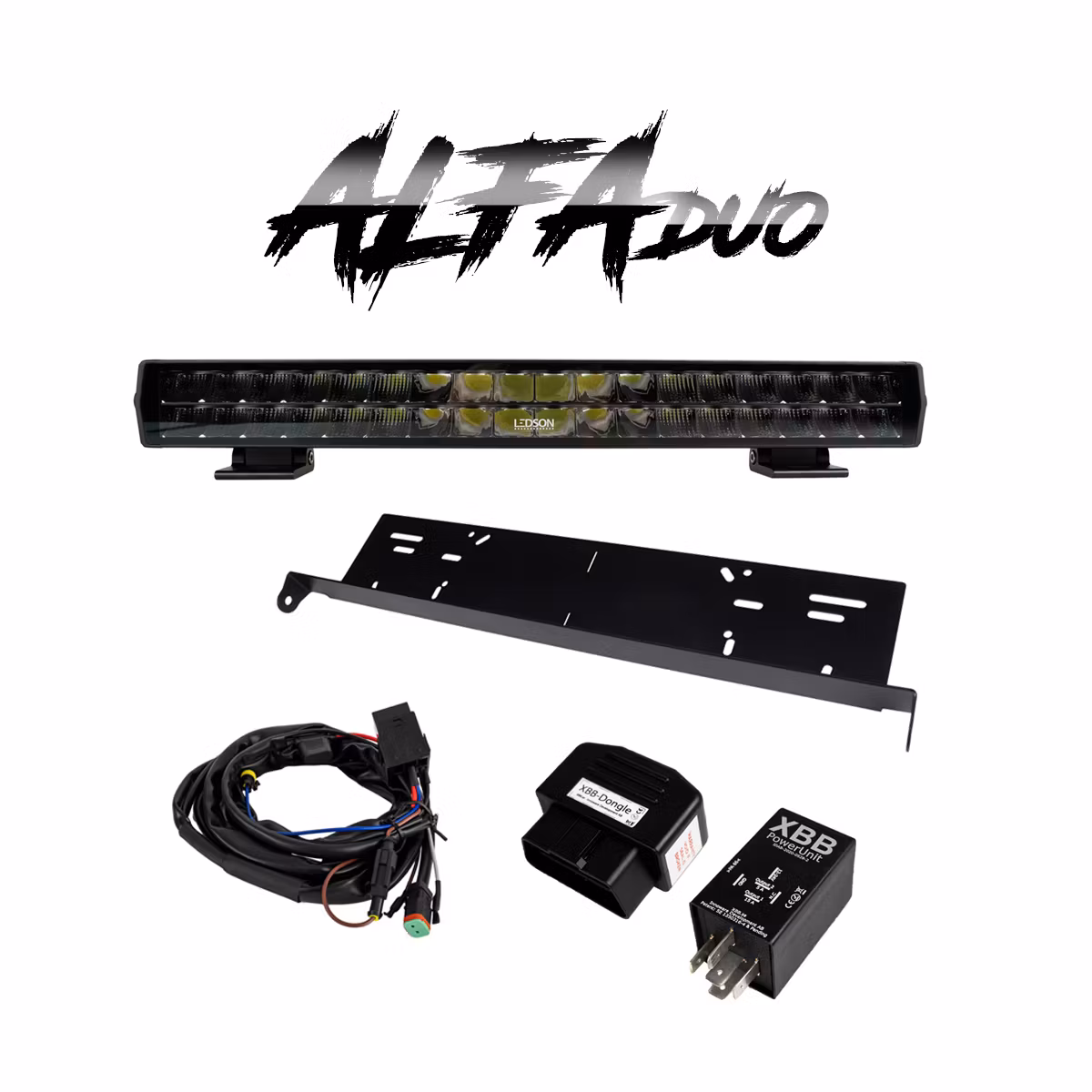

🧠 With XBB (Plug & Play installation):

  • 1 x Ledson Alfa 20" LED light bar
  • 1 x Relay wiring harness with DT connector
  • 1 x License plate bracket
  • 1 x XBB Dongle (OBD2)
  • 1 x XBB PowerUnit (2-channel digital relay)
    πŸ‘‰ Benefits: Easy installation via the car’s OBD2 port – no wire cutting needed. Perfect for vehicles with sensitive CAN-bus systems.

🌟 Ledson Alfa 20" – Style, Function, and Road Safety Combined

With a real light output of 13,700 lumens, 1 lux range of 472 meters, and a cool white 6000K color temperature, this bar offers great visibility in all driving conditions. It features dual mounting options – side brackets and sliding rear mounts for upright or hanging installations.

βœ… ECE R112 (ref. 50) – road legal as auxiliary light
βœ… ECE R10 – EMC compliant (won’t interfere with other electronics)
βœ… IP69K – withstands high-pressure water and harsh environments
βœ… Modern low-profile design – perfect for integrated grille mounting

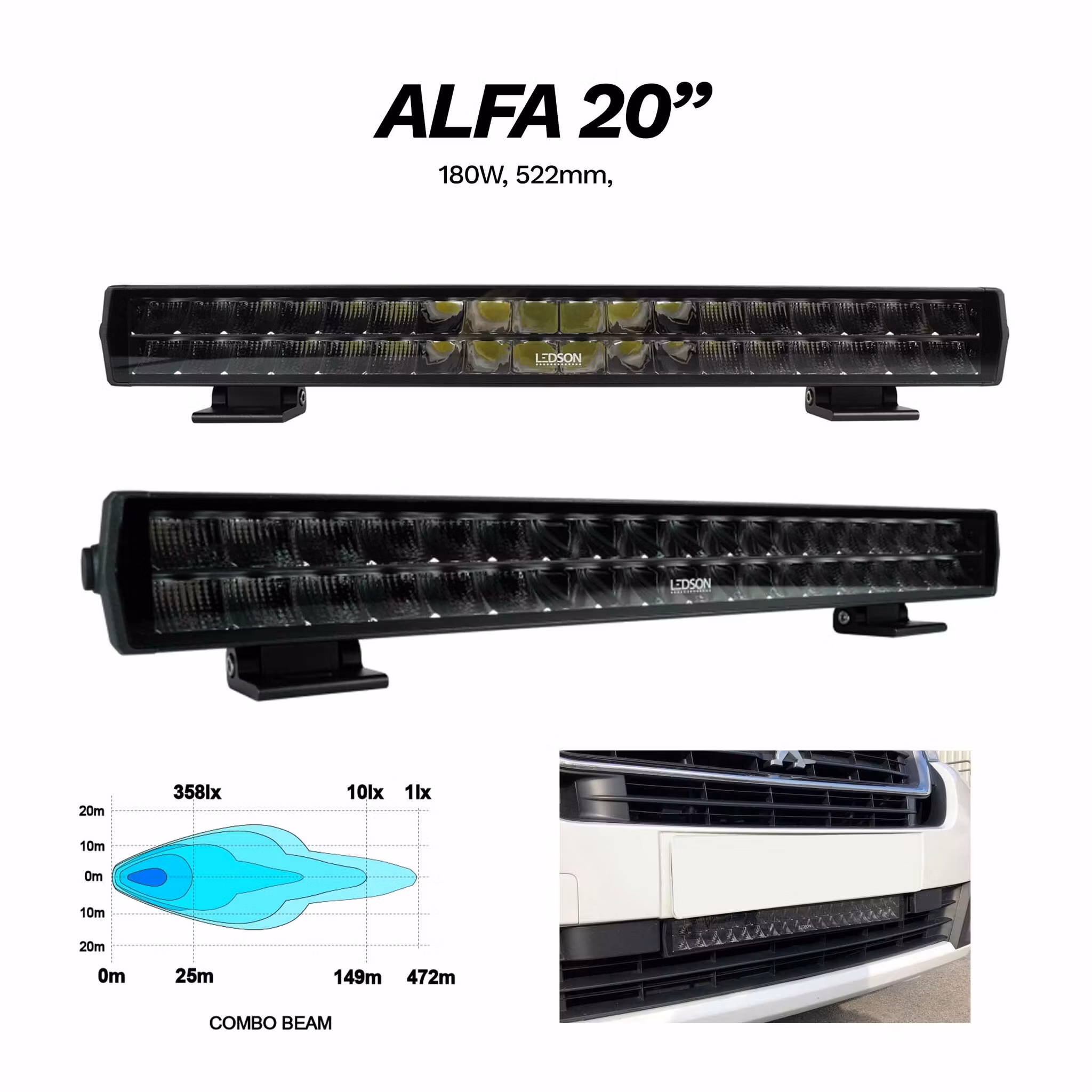

πŸ“Š Technical Specifications

  • Power: 180W (36 x 5W LP LED)
  • Theoretical output: 16,200 lm
  • Actual output: 13,700 lm
  • Range: 1 lux @ 472 meters
  • Color temperature: 6000K (cool white)
  • Voltage: 9–36V
  • Protection class: IP69K
  • Beam pattern: Combo Beam (flood + spot)
  • Material: Aluminum housing & polycarbonate lens
  • Connector: DT (included – must not be cut)
  • Cable length: 650 mm
  • Dimensions (excl. brackets): 522 x 58 x 53 mm (W x H x D)
  • Certifications: ECE R112, ECE R10'
  • Warranty: 36 months

🧠 XBB DIGITAL RELAY – Smart & Safe Installation

The XBB system allows you to control the light bar wirelessly via your vehicle’s OBD2 port, with no wire splicing required. Perfect for modern cars with sensitive electronics.

πŸ“¦ Included in XBB Kit:

  • 1 x XBB Dongle
  • 1 x XBB PowerUnit (12V, 2-channel: 15A / 5A)
  • Control your auxiliary light through the XBB app (iOS/Android)
  • Avoid fault codes, CAN-bus issues, and warranty risks

πŸ›» Perfect fit for:
Volvo, Tesla, Audi, VW, Skoda, Ford, pickups, work vehicles, and heavy-duty trucks like Volvo Trucks and Scania.

πŸ‘‰ Order your Ledson Alfa 20" today – choose between traditional or wireless XBB installation and enjoy high-performance, road-legal lighting!
